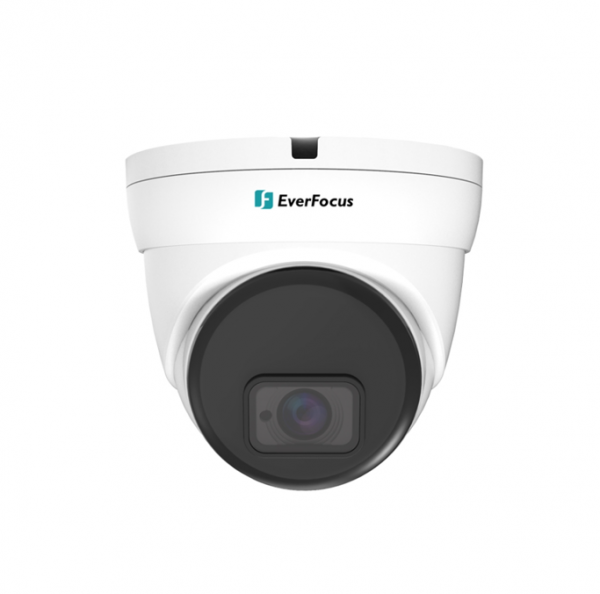

EverFocus EBN1240-SG (NDAA)
2-Megapixel IR & WDR, Outdoor Ball Network Camera
Features
• 2MP Progressive scan CMOS sensor
• Equipped with 3.6mm fixed lens
• Multi-streaming from H.265 / H.264
• Supports D-WDR
• Provides True Day/Night functionality with automatic IR filter operation
• Extended IR range up to 30m / 98ft with 18 LEDs (depends on scene IR reflectivity)
• Supports ONVIF (Profile S, Profile G)
• Weather-proof IP66 rated
• Supports live monitoring via mobile Apps (iOS & Android)
• Supports PoE and 12VDC
Specifications
| Pickup Device | 2MP Progressive scan CMOS sensor |
| Lens | 3.6mm fixed lens |
| FOV | H:86.1°, V:46°, D:104° |
| F No. | F2.3±10% |
| Minimum Illumination | Color 0.05lux @ F1.6(AGC ON) ; B/W 0 lux @ IR ON |
| Day/Night | IR cut filter with auto switch (Day/Night/Auto/Schedule) |
| Shutter | 1/5 ~ 1/20,000s |
| Video Compression | H.265 / H.264 |
| Frame Rate | Main stream 1080P(1920×1080) Sub stream VGA(640×480) |
| S/N Ratio | 40db (AGC Off) |
| AGC | Supported |
| Triple Streams | Not supported (supports dual streams) |
| AWB | Supported |
| WDR | D-WDR |
| 3DNR | Supported |
| Video Output | Not supported |
| SD Card Slot | Not supported |
| Password Protection | Supported |
| Alarm Input / Output | Not supported |
| Reset Button | Supported |
| Interface | RJ-45 10M/100M x 1 |
| Supported Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Connector | DC Jack, RJ-45 |
| Image Settings | Flip, Saturation, Brightness, Contrast, Hue, Sharpness |
| Event Trigger | Motion, I/O |
| Notification | Email Notification |
| IR LED | 18 units (SMD) |
| IR Distance | 30m / 98ft. |
| Power Supply | 12VDC |
| Power over Ethernet | PoE IEEE802.3af (Class 3) |
| Max. Power Consumption | 12VDC ≤7W / PoE 5.1W |
| Humidity | ≤95% not condensing |
| Operating Temperature | -30°C ~ +60°C |
| Dimensions (Φ) x (H) | Ø100 x 90mm |
| Weight | 420g |
| Weather Resistance | IP66 |
