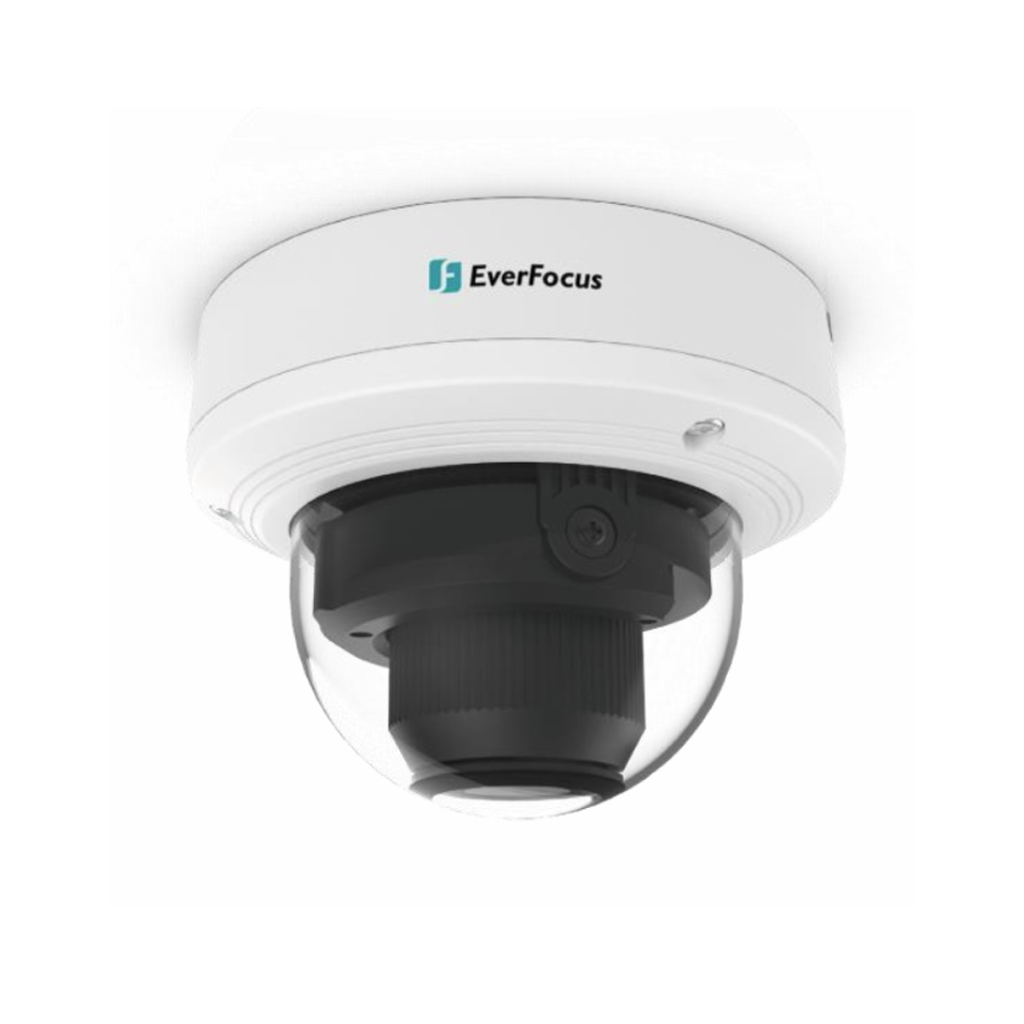

EverFocus EHN2550-SG (NDAA)
5-Megapixel IR & WDR, Outdoor Dome Network Camera
Features
• 5MP Progressive scan CMOS sensor
• Equipped with 2.8~12mm motorized lens
• Triple-streaming from H.265 / H.264
• Supports 3D DNR (Digital Noise Reduction)
• Provides True Day/Night functionality with automatic IR filter operation
• Extended IR range up to 45m / 148ft.
• Support video analytics
• Supports ONVIF
• Weather-proof IP66 rated
• Supports PoE and 12VDC
Specifications
| S/N Ratio | ≥ 39db (AGC Off) |
| Pickup Device | 5MP Progressive scan CMOS sensor |
| Lens | 2.8~12mm motorized lens |
| FOV | H: 101° ~ 32°, V: 71° ~ 23°, D: 129° ~ 40° |
| F No. | 1.4 (W) ~ 3.1(T) |
| Minimum Illumination | Color 0.05lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON |
| Day/Night | IR cut filter with auto switch（Day/Night/Auto/Schedule） |
| Shutter | 1/5 ~ 1/20000s |
| Video Compression | H.265 / H.264 |
| Frame Rate | 25fps / 30fps |
| S/N Ratio | ≥ 39db (AGC Off) |
| AGC | Supported |
| Triple Streams | Supported |
| AWB | Auto/Manual/Indoor |
| WDR | WDR(120db) |
| 3DNR | Supported |
| Video Output | Supported |
| Audio | Supported; 1 input / 1 output (RCA) |
| SD Card Slot | Supported; Micro SD slot, up to 256GB |
| Password Protection | Supported |
| Alarm Input / Output | Supported; 1 input / 1 output |
| Reset Button | Supported |
| Supported Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, PPPoE, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Connector | DC Jack, RJ-45 |
| Video Analytics | Motion detection, Pedestrian & Vehicle Detection, Face Detection, Perimeter Intrusion Detection, Line Crossing Detection, Goods Lost Legacy, Cross counting, Heat Map, Crowd Density Detection, Queue Length Detection |
| IR Distance | 45m / 148ft. |
| Power Supply | 12VDC |
| Power over Ethernet | PoE IEEE802.3af (Class 3) |
| Max. Power Consumption | 12VDC ≤9W / PoE 7.4W |
| Operating Temperature | -30°C ~ 55°C / -22°F ~ 131°F |
| Dimensions (Φ) x (H) | 148.7 x 109mm |
| Weight | 960g |
| Weather Resistance | IP66 |
