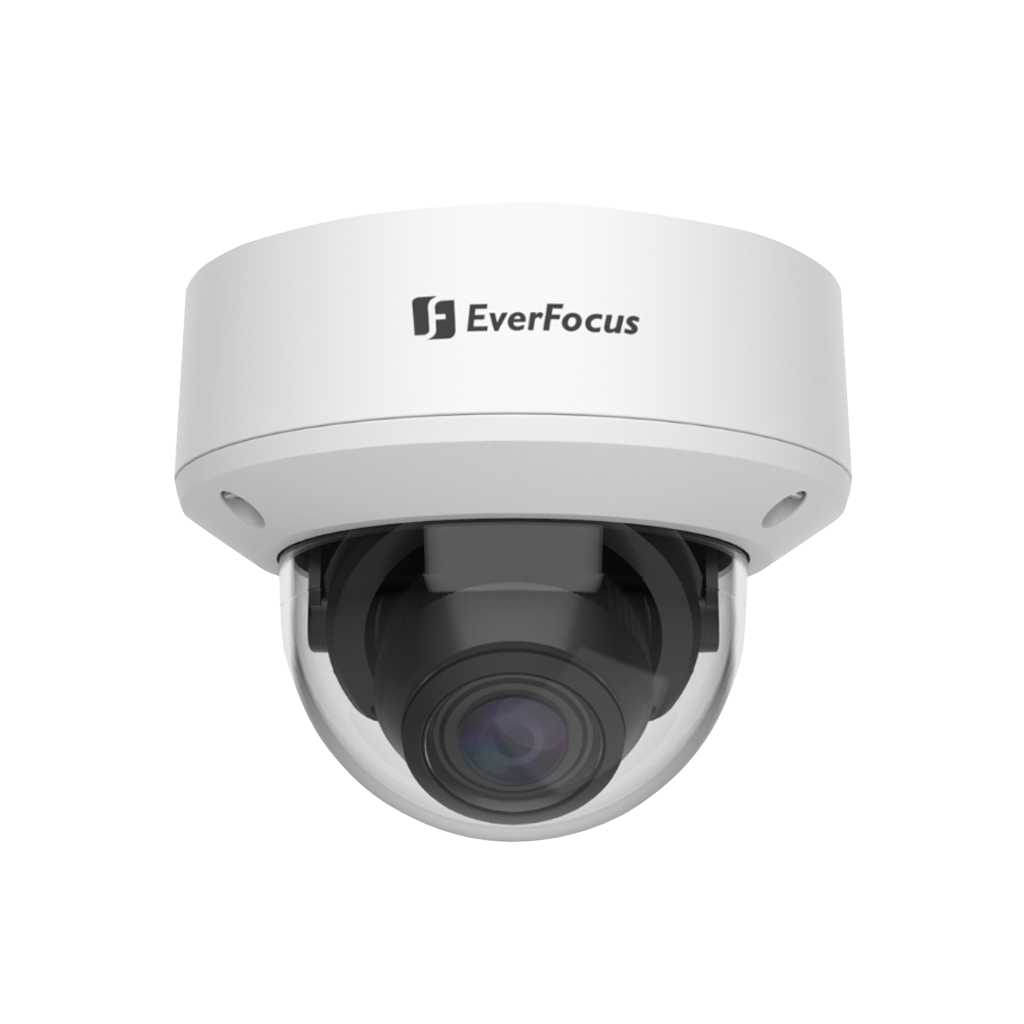

EverFocus EHA2580
5-Megapixel Day/Night Outdoor IR Dome Camera
Features
• 5MP CMOS sensor, delivering amazing high sensitivity
• Varifocal 2.8-12mm with ICR to capture the desired field of view
• Extended IR range of up to 35m / 114ft. with 4 LEDs (depends on scene IR reflectivity)
• The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
• IP66-rated with metal housing
• Supports UTC function: Control camera OSD settings directly from DVR end
Specifications
| Pickup Device | 5MP CMOS sensor |
| System Format | NTSC / PAL (switchable via OSD) |
| Effective Pixels | 2608 (H) x 1960 (V) |
| Scanning System | Progressive Scan |
| Sensitivity | 0 Lux with IR On |
| Electronic Shutter | 1/30s~1/30,000s |
| Gamma Correction | 0.45 / 0.55 / 0.65 / 0.75 |
| Lens Type | Varifocal 2.8-12mm with ICR, F1.8-3.3 |
| FOV (D x H x V) | 133~40° x 107~34° x 54~19° |
| BLC | Off /Auto |
| AGC | Auto |
| White Balance | Auto |
| Sync. Mode | Internal |
| Day / Night | Supported |
| UTC Function | Supported |
| IR LEDS | 4 Units |
| IR Distance | Up to 35m / 114ft. (Depends on scene IR reflectivity) |
| Video Format | AHD / TVI / CVI / CVBS *CVBS only support PAL |
| S/N Ratio | ≥39dB |
| OSD Languages | English |
| DNR | Off / Middle / High / Low |
| SensUp | Off / x2 / x4 / x8 / x16 / x32 |
| Mirror / Flip | Off / On |
| Motion Detection | Supported |
| Privacy Mask | Supported |
| Environmental | IP66 Weather Resistant |
| Power Source | 12VDC, 550mA |
| Max. Power Consumption | IR Off ≤1W, IR On ≤4W |
| Operating | -10°C ~ 50°C / 14°F ~ 122°F |
| Humidity | Less than 90% |
| Dimensions | Ø148.7 x 109mm / 5.85″ x 4.29″ |
| Weight | 930g / 2lb |
