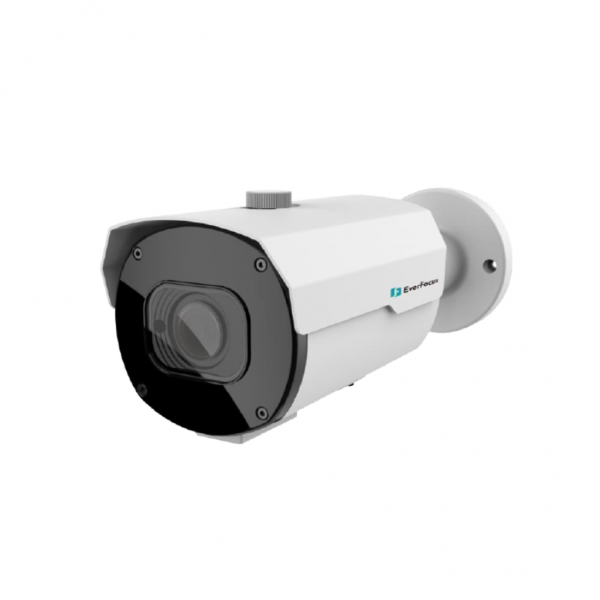

EverFocus EZN2850-SG
8-Megapixel IR & WDR, Outdoor Bullet Network Camera
Features
• 8MP Progressive scan CMOS sensor
• Equipped with 2.7~13.5mm motorized lens
• Triple-streaming from H.265 / H.264
• Supports 3D DNR (Digital Noise Reduction)
• Provides True Day/Night functionality with automatic IR filter operation
• Extended IR range up to 45m / 148ft.
• Support video analytics
• Supports ONVIF
• Weather-proof IP66 rated
• Supports PoE and 12VDC
Specifications
Pickup Device | 1/2.8″, 8.0 megapixel, progressive scan, CMOS |
Lens | 2.7-13.5mm, motorized lens |
FOV | Horizontal: 34 ~116°, Vertical: 19 ~ 59°, Diagonal: 39 ~ 142° |
F No. | 1.83 (W) ~ 3.32(T) |
Minimum Illumination | Color 0.1lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON |
Day/Night | IR cut filter with auto switch(Day/Night/Auto/Schedule) |
Shutter | 1/5 ~ 1/20000s |
Video Compression | H.265/H.264 |
Frame Rate | Main Stream 8MP(3840×2160),5MP(2592×1944,3072×1728), 4MP(2592×1520),3MP(2304×1296),1080P(1920×1080), 960P(1280*960),720P(1280×720), Sub Stream 720P(1280×720),VGA(640×480),QVGA(320×240) Mobile Stream VGA(640×480), QVGA(320×240) Max. Framerate 50Hz:25fps@8MP,5MP,4MP,3MP,2MP, |
S/N Ratio | ≥ 50db (AGC Off) |
AGC | Supported |
Triple Streams | Supported |
AWB | Supported |
WDR | WDR(120db) |
3DNR | Supported |
Audio | 1 input (RCA), 1 output (RCA) |
SD Card Slot | Micro SD slot, up to 256GB |
Password Protection | Supported |
Alarm Input / Output | 1 input, 1 output |
Reset Button | Supported |
Supported Protocols | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
IR Distance | Up to 45m (148ft) |
Power Supply | DC 12V±25% |
Power over Ethernet | PoE (IEEE 802.3af) |
Max. Power Consumption | 7W |
Humidity | less than ≤ 95% RH |
Operating Temperature | -30~+55°C |
Dimensions (Φ) x (H) | Ø 87.4×242.12mm |
Weight | appr 830g |
Weather Resistance | IP66 |
