EverFocus EHN2850-SG

描述

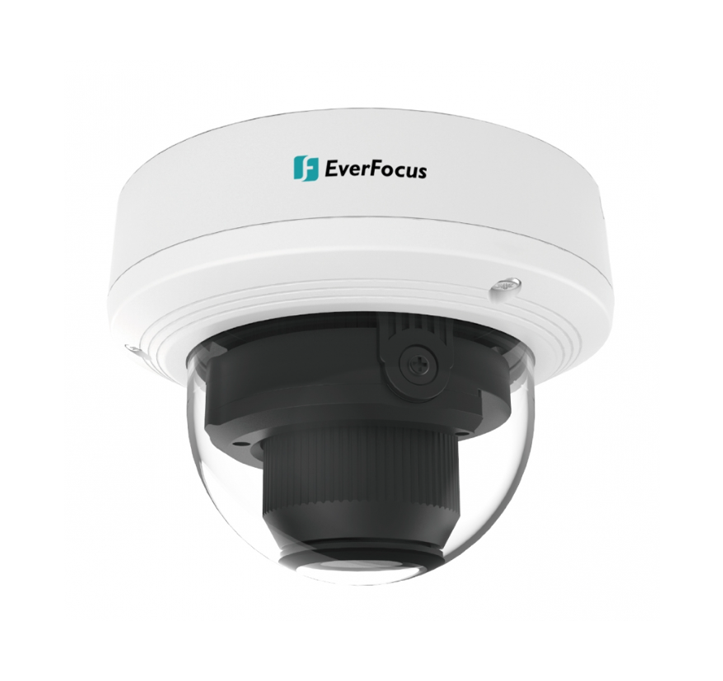

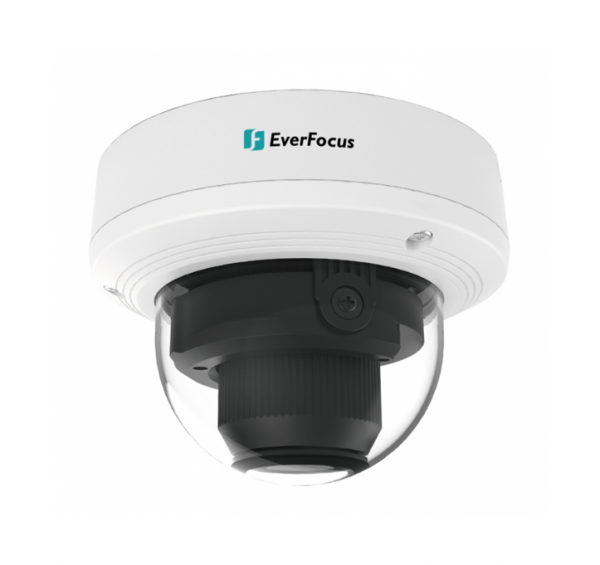

EverFocus EHN2850-SG

8-Megapixel IR & WDR, Outdoor Dome Network Camera



Features

• 8MP Progressive scan CMOS sensor
• Equipped with 2.7~13.5mm motorized lens
• Triple-streaming from H.265 / H.264
• Supports 3D DNR (Digital Noise Reduction)
• Provides True Day/Night functionality with automatic IR filter operation
• Extended IR range up to 45m / 148ft.
• Support video analytics
• Supports ONVIF
• Weather-proof IP66 rated
• Supports PoE and 12VDC



Specifications

Pickup Device1/2.7″, 8.0 megapixel, progressive scan, CMOS
Lens2.7-13.5mm, motorized lens
FOVHorizontal: 34 ~116°, Vertical: 19 ~ 59°, Diagonal: 39 ~ 142°
F No.1.83 (W) ~ 3.32(T)
Minimum IlluminationColor 0.05lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON
Day/NightIR cut filter with auto switch(Day/Night/Auto/Schedule)
Shutter1/5 ~ 1/20000s
Video CompressionH.265/H.264
Frame RateMain Stream 8MP(3840×2160),5MP(2592×1944,3072×1728), 4MP(2592×1520),3MP(2304×1296),1080P(1920×1080), 960P(1280*960),720P(1280×720), Sub Stream 720P(1280×720),VGA(640×480),QVGA(320×240) Mobile Stream VGA(640×480), QVGA(320×240)
S/N Ratio≥ 50db (AGC Off)
AGCsupported
AWBsupported
WDRWDR(120db)
3DNRsupported
Audio1 input (RCA), 1 output (RCA)
SD Card SlotMicro SD slot, up to 256GB
Password ProtectionIP address filter, complicated password, Authenticated username and password
Alarm Input / Output1 input, 1 output
Reset ButtonSupported
Supported ProtocolsTCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,HTTPS,FTP
IR DistanceUp to 45m (148ft) IR range
Power SupplyDC 12V±25%, PoE (IEEE 802.3af)
Max. Power Consumption7W
Operating Temperature-30~+55°C/less than ≤ 95% RH
Dimensions (Φ) x (H)Ø148.7x109mm
Weightappr 960g
Weather ResistanceIP66
Vandal ResistanceIK10
