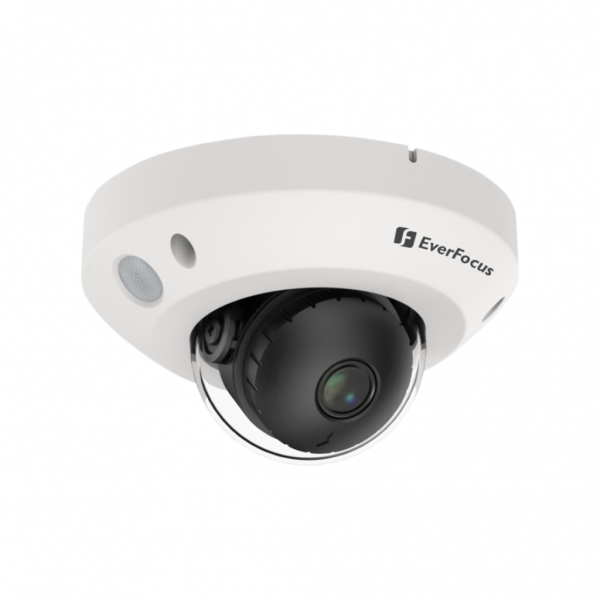

EverFocus EMN2560-SG
Mini fixed dome IP Cam
Features
• 5MP Progressive scan CMOS sensor
• Equipped with 2.8mm fixed lens
• Triple-streaming from H.265 / H.264
• Supports 3D DNR (Digital Noise Reduction)
• IR filter operation
• Extended IR range up to 30m / 98ft.
• Supports ONVIF
• Weather-proof IP66 rated
Specifications
| S/N Ratio | ≥ 39db (AGC Off) |
| Pickup Device | 5MP Progressive scan CMOS sensor |
| Lens | 2.8mm fixed lens |
| FOV | Horizontal: 110.6°, Vertical: 58.7°, Diagonal: 133.1° |
| F No. | 1.6 |
| Minimum Illumination | Color 0.05lux @ F1.2 (AGC ON) ; B/W 0 lux @ IR ON |
| Day/Night | IR cut filter with auto switch (Day/Night/Auto/Schedule） |
| Shutter | 1/5 ~ 1/20000s |
| Video Compression | H.265/H.264 |
| Frame Rate | 50Hz: 25fps@5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA 60Hz: 30fps@5MP/4MP/3MP/2MP/960P/720P/VGA/QVGA |
| S/N Ratio | ≥ 39db (AGC Off) |
| AGC | Supported |
| Triple Streams | Triple-streaming from H.265 / H.264 |
| AWB | Supported |
| WDR | T-WDR(120 db) |
| 3DNR | Supported |
| SD Card Slot | Micro SD slot, up to 256GB |
| Password Protection | Supported |
| Alarm Input / Output | Not supported |
| Interface | RJ45(10/100BASE-T) |
| Supported Protocols | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Image Settings | Flip/Rotation |
| Event Trigger | Motion |
| IR Distance | Up to 30m |
| Max. Power Consumption | 3W (IR OFF), 4.5W (IR ON) |
| Operating Temperature | -30~+55°C / less than ≤ 95% RH |
| Dimensions (Φ) x (H) | Ø115X 64mm |
| Weight | appr. 265g |
| Weather Resistance | IP66 |
