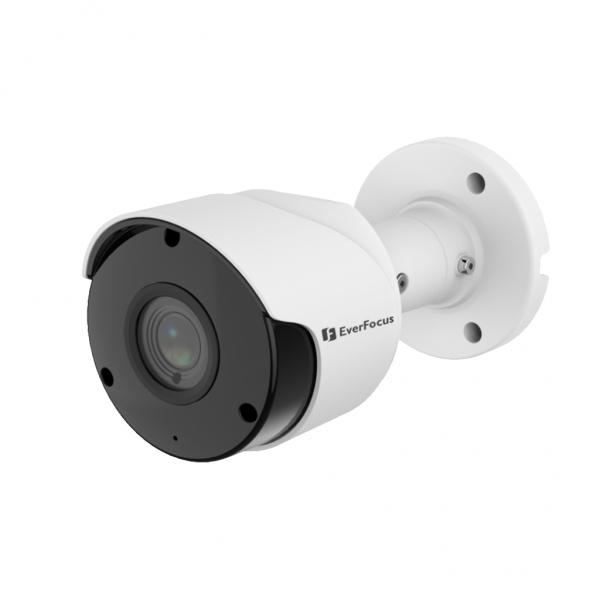

EverFocus EZA1541
5-Megapixel True Day/Night Outdoor IR Bullet Camera
Features
• 5MP CMOS sensor, delivering amazing high sensitivity
• 3.6mm fixed lens with ICR to capture the desired field of view
• Extended IR range of up to 20m /65ft. with 18 LEDs (depends on scene IR reflectivity)
• The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
• IP66-rated with metal housing
• Supports UTC function: Control camera OSD settings directly from DVR end
Specifications
| Pickup Device | 5MP COMS sensor |
| System Format | NTSC / PAL (switchable via OSD) |
| Effective Pixels | 2608 (H) x 1960 (V) |
| Scanning System | Progressive Scan |
| Sensitivity | 0 Lux with IR On |
| Electronic Shutter | 1/20s~1/75,000s |
| Gamma Correction | 0.45 |
| Lens Type | 3.6mm fixed lens with ICR, F1.6 |
| FOV (D x H x V) | 109.6° x 91.3° x 46.1° |
| BLC | Off / Auto |
| AGC | Auto |
| White Balance | Auto |
| Sync. Mode | Internal |
| Day / Night | Supported |
| UTC Function | Supported |
| IR LEDS | 18 Units |
| IR Distance | Up to 25m / 82ft. (Depends on scene IR reflectivity) |
| Video Format | AHD / TVI / CVI / CVBS *CVBS only support PAL |
| S/N Ratio | ≥39 dB |
| OSD Languages | English |
| DNR | 2DNR |
| SensUp | N/A |
| Mirror / Flip | Off / On |
| Motion Detection | Supported |
| Privacy Mask | Supported |
| Environmental | IP66 Weather Resistant |
| Power Source | 12VDC |
| Max. Power Consumption | IR Off ≤1W，IR On ≤4W |
| Operating | -10°C ~ 50°C / 14°F ~ 122°F |
| Humidity | Less than 90% |
| Dimensions | 157 x 70 x 66mm / 6.18” x 2.76” x 2.6” |
| Weight | 650g / 1.43lb |
