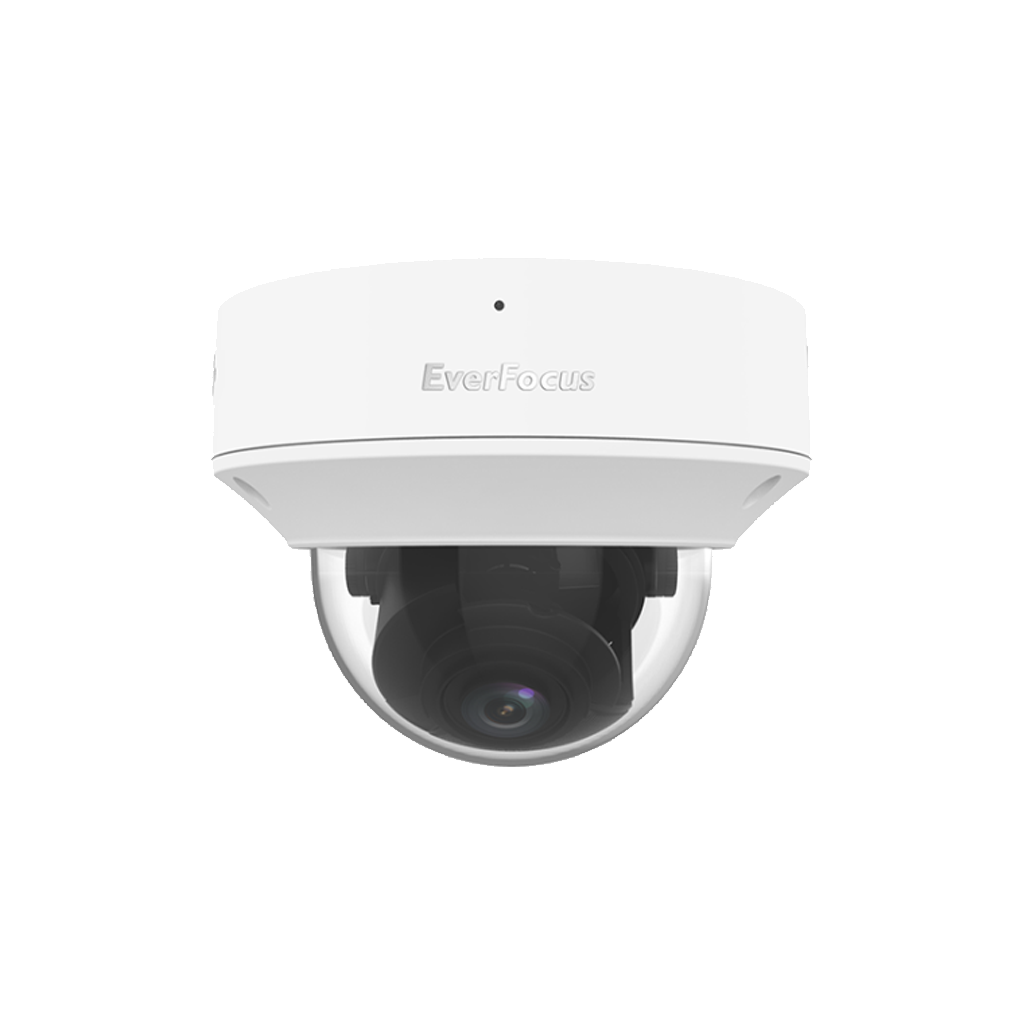

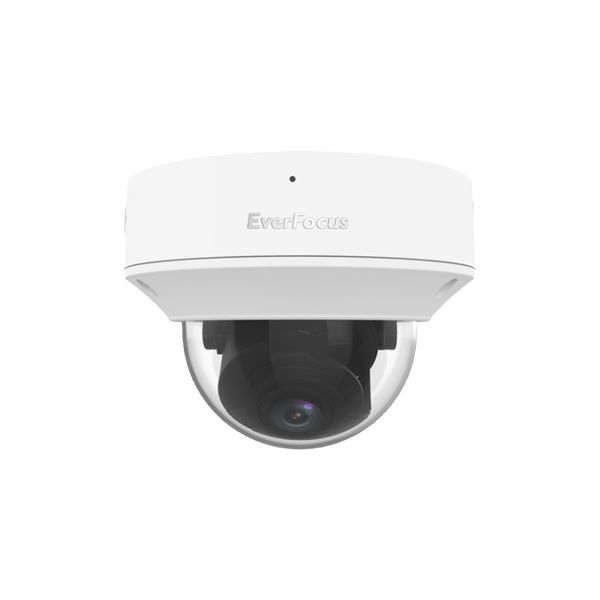

EverFocus EHNU251
2MP HD Intelligent LightHunter IR VF Dome Network Camera
Features
• High quality image with 2MP, 1/2.8″CMOS sensor
• 2MP (1920*1080)@30/25fps; 720P (1280*720)@30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Smart intrusion prevention, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc. Accurately focus on human and motor vehicle and non-motor vehicle
• Intelligent face capture、Intelligent People Flow Counting and Crowd Density Monitoring
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Built-in Mic
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Smart IR, up to 40m (131ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant and IP67 protection
Specifications
Sensor | 1/2.8″, 2.0 megapixel, progressive scan, CMOS |
Lens | 2.7 ~ 13.5mm, AF automatic focusing and motorized zoom lens |
DORI Distance | Lens2.7~13.5 / Detect (m)41.9~209.5 / Observe (m)16.8~83.8 / Recognize (m)8.4~41.9 / Identify (m)4.2~20.9 |
Angle of View (H) | 107.4°~ 29.2° |
Angle of View (V) | 54.2°~ 16.3° |
Angle of View (O) | 111.0°~33.1° |
Adjustment angle | Pan:0° ~ 355° Tilt: 0° ~ 80° Rotate: 0° ~ 355° |
Shutter | Auto/Manual 1 ~ 1/100000s |
Minimum Illumination | Color: 0.0005Lux (F1.2, AGC ON) B/W:: 0Lux with IR on |
Day/Night | IR-cut filter with auto switch (ICR) |
S/N | >52dB |
IR Range | Up to 40m (131ft) IR range |
Wavelength | 850mm |
IR On/Off Control | Auto/Manual |
Defog | Digital Defog |
WDR | 120db |
Video Compression | H.265, H.264, MJPEG |
H.264 code profile | Baseline profile, Main profile, High profile |
Frame Rate | Main Stream: 2MP (1920*1080), Max 30fps; 720P (1280*720), Max 30fps; SubStream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360, Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
Video Bit Rate | 128 Kbps~16 Mbps |
OSD | Up to 8 OSDs |
Privacy Mask | Up to 4 areas |
ROI | Up to 8 areas |
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Digital Noise Reduction | 2D/3D DNR |
Smart IR | Supported |
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
Dewarping | N / A |
HLC | Supported |
BLC | Supported |
Audio Compression | G.711 |
Two way Audio | Supported |
Suppression | Supported |
Sampling Rate | 8KHZ |
Edge Storage | Micro SD, up to 256GB |
Network Storage | ANR, NAS(NFS) |
Smart intrusion prevention | Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection |
Face capture | Supported |
Statistical Analysis | People counting |
Basic Detection | Motion detection, Tampering alarm, Audio detection |
General Function | Watermark, IP address filtering, alarm input, alarm output, access policy, ARP protection, RTSP authentication, user authentication |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP,QoS |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API |
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below / Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
Audio I/O | 1 Input: impedance 35kΩ; amplitude 2V [p-p], 1 Output: impedance 600Ω; amplitude 2V [p-p] |
Alarm I/O | 1 / 1 |
Network | 1 RJ45 10M/100M Base-TX Ethernet |
Power | DC 12V±25%, PoE (IEEE 802.3af), Power consumption: Max 7.0W |
Dimensions (Ø x H) | Φ148.0 x 111.4mm (Φ5.8” x4.4”) |
Weight | 0.97kg (2.14lb) |
Material | Metal |
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Surge Protection | 6KV |
Ingress Protection | IP67 |
Vandal resistant | IK10 |
Reset button | Supported |
