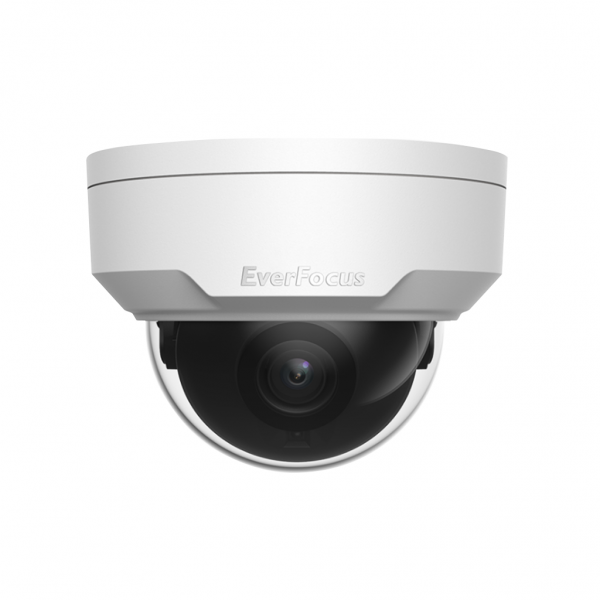

EverFocus EHNU540
5MP HD Intelligent LightHunter IR Fixed Dome Network Camera
Features
• High quality image with 5MP, 1/2.7″CMOS sensor
• 5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
• Ultra 265, H.265, H.264, MJPEG
• Intelligent perimeter protection, include cross line, intrusion, enter area, leave area detection
• Based on target classification, smart intrusion prevention significantly reduce false alarm caused by leaves, birds and lights etc.,accurately focus on human and, motor vehicle and non-motor vehicle
• Intelligent face capture、Intelligent People Flow Counting and Crowd Density Monitoring
• LightHunter technology ensures ultra-high image quality in low illumination environment
• 120dB true WDR technology enables clear image in strong light scene
• Support 9:16 Corridor Mode
• Alarm:1 in/1 out, Audio: 1 in/1 out
• Smart IR, up to 30m (98ft) IR distance
• Supports 256 G Micro SD card
• IK10 vandal resistant and IP67 protection
• Support PoE power supply
Specifications
Sensor | 1/2.7″, 5.0 megapixel, progressive scan, CMOS |
Lens | 4.0mm@F1.6 |
DORI Distance | Lens (mm) 2.8/4.0 / Detect (m) 63/90 / Observe (m) 25.2/36 / Recognize (m) 12.6/18 / Identify (m) 6.3/9 |
Angle of View (H) | 78.7° |
Angle of View (V) | 44.9° |
Angle of View (O) | 89.2° |
Adjustment angle | Pan: 3° ~ 360° / Tilt: 0° ~ 68° / Rotate: 3° ~ 360° |
Shutter | Auto/Manual, 1 ~ 1/100000s |
Minimum Illumination | Color: 0.001Lux (F1.6, AGC ON) B/W: 0Lux with IR on |
Day/Night | IR-cut filter with auto switch (ICR) |
Digital Noise Reduction | 2D / 3D DNR |
S/N | >56dB |
IR Range | Up to 30m (98ft) IR range |
Wavelength | 850mm |
IR On/Off Control | Auto/Manual |
Defog | Digital Defog |
WDR | 120db |
Video Compression | H.265, H.264, MJPEG |
H.264 code profile | Baseline profile, Main profile, High profile |
Frame Rate | Main Stream: 5MP (2880*1620), Max 30fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; SubStream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps; |
Video Bit Rate | 128 Kbps~16 Mbps |
OSD | Up to 8 OSDs |
Privacy Mask | Up to 4 areas |
ROI | Up to 8 areas |
White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 |
Smart IR | Supported |
Flip | Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise |
Dewarping | N / A |
HLC | Supported |
BLC | Supported |
Audio Compression | G.711 |
Two way Audio | Supported |
Suppression | Supported |
Sampling Rate | 8KHZ |
Edge Storage | Micro SD, up to 256GB |
Network Storage | ANR, NAS(NFS) |
Smart intrusion prevention | Support false alarm filtering: Line crossing detection, Intrusion detection, Region entrance detection, Region exit detection |
Face capture | Supported |
Statistical Analysis | People counting |
Basic Detection | Motion detection, tampering alarm, audio detection |
General Function | Watermark, IP address filtering, tampering alarm, alarm input, alarm output, access Policy, ARP protection, RTSP authentication, user authentication |
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP,SSL/TLS, SSH |
Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK |
Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below, Plug-in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+ |
Audio I/O | Input: impedance 35kΩ; amplitude 2V [p-p], Output: impedance 600Ω; amplitude 2V [p-p] |
Alarm I/O | 1 / 1 |
Network | 1 RJ45 10M/100M Base-TX Ethernet |
Power | DC 12V±25% , PoE (IEEE 802.3af), Power consumption: Max 4.5W |
Dimensions (Ø x H) | Φ108.7 x 81.1mm (Ø4.3”x 3.2”) |
Weight | 0.425kg (0.93lb) |
Material | Metal |
Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Storage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) |
Surge Protection | 4KV |
Ingress Protection | IP67 |
Vandal resistant | IK10 |
Reset button | N / A |
