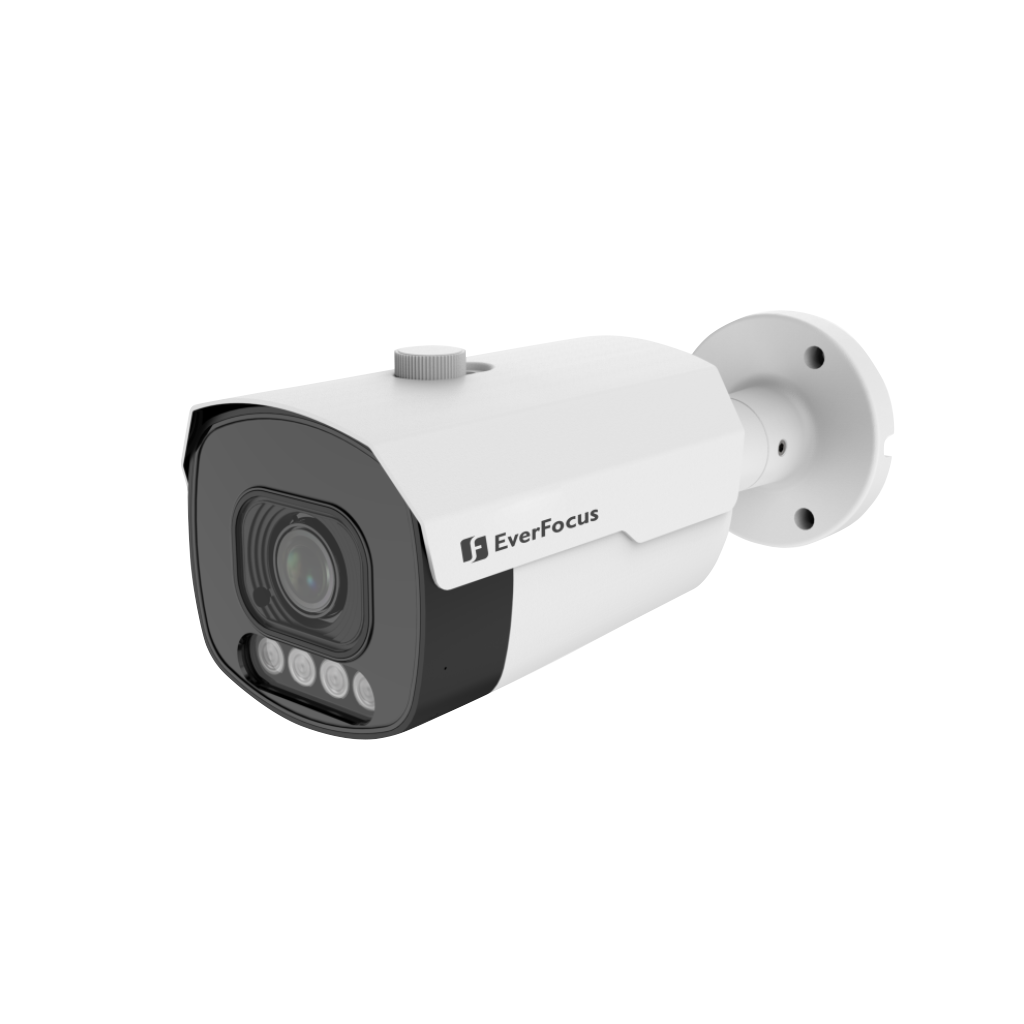

EverFocus EZN3550-NV(MIT)
5-Megapixel IR & WDR, Full Color Outdoor Bullet Network Camera
Features
• 5MP Progressive scan CMOS sensor
• Equipped with 2.8~12mm motorized lens
• 24/7 Full-color imaging
• Triple-streaming from H.265 / H.264
• Supports WDR, 3DNR
• Warm supplemental light (WL) with 30m / 98ft
• Extended IR range up to 35m / 114ft
• Provides True Day/Night functionality with automatic IR filter operation
• Support smart video analytics
• Supports ONVIF
• Weather-proof IP67 rated
• Supports PoE and 12VDC
Specifications
| Pickup Device | 1/2.7″, 5.0 megapixel, progressive scan, CMOS |
| Lens | 2.8-12mm, motorized lens, F No. 1.2 |
| FOV | Horizontal: 112.6(W)-35.4(T)°, Vertical: 58.5(W)-20.0(T)°,
Diagonal: 138.0(W)-40.7(T)° |
| F No. | F No. 1.2 |
| Minimum Illumination | Color 0.0002 Lux @（F1.2，AGC ON）; B/W 0 lux @ IR ON |
| Day/Night | Full Color Mode/Day & Night Mode/Schedule |
| Shutter | 1/5 ~ 1/20000s |
| Video Compression | H.265/H.264 |
| Frame Rate | Mainstream@30fps 5MP(2880×1620),4MP(2592×1520) 3MP(2304×1296),1080P(1920×1080),960P(1280×960),720P(1280×720) substream@30fps 720P(1280×720),VGA(640×480),QVGA(320×240) Mobilestream@30fps VGA(640×480), QVGA（320×240） |
| S/N Ratio | 39db |
| AGC | Auto |
| Triple Streams | Supported |
| AWB | Auto/Manual |
| WDR | WDR, 120dB |
| 3DNR | 3D DNR |
| Audio | 1 input (RCA), 1 output (RCA) |
| SD Card Slot | Micro SD slot, up to 256GB |
| Password Protection | Supported |
| Alarm Input / Output | 1 input , 1 output |
| Reset Button | Supported |
| Supported Protocols | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| Video Analytics | Motion detection(8 Level), Pedestrian & Vehicle Detection, Face Detection, Perimeter Intrusion Detection, Line Crossing Detection, Goods Lost Legacy, Cross counting, Heat Map, Crowd Density Detection, Queue Length Detection, Rare Sound Detection, License Plate Detection(Europe, America only), Motor Vehicle/Non-Motorized Vehicle/Pedestrian Classifications |
| IR Distance | Up to 35m (114ft) |
| Power Supply | 12DV |
| Power over Ethernet | POE(IEEE802.3af) |
| Max. Power Consumption | Max 13W |
| Humidity | less than ≤ 95% RH |
| Operating Temperature | -30～+60°C |
| Dimensions (Φ) x (H) | 240.9*86*84.7mm |
| Weight | appr 693g |
| Weather Resistance | IP67 |
