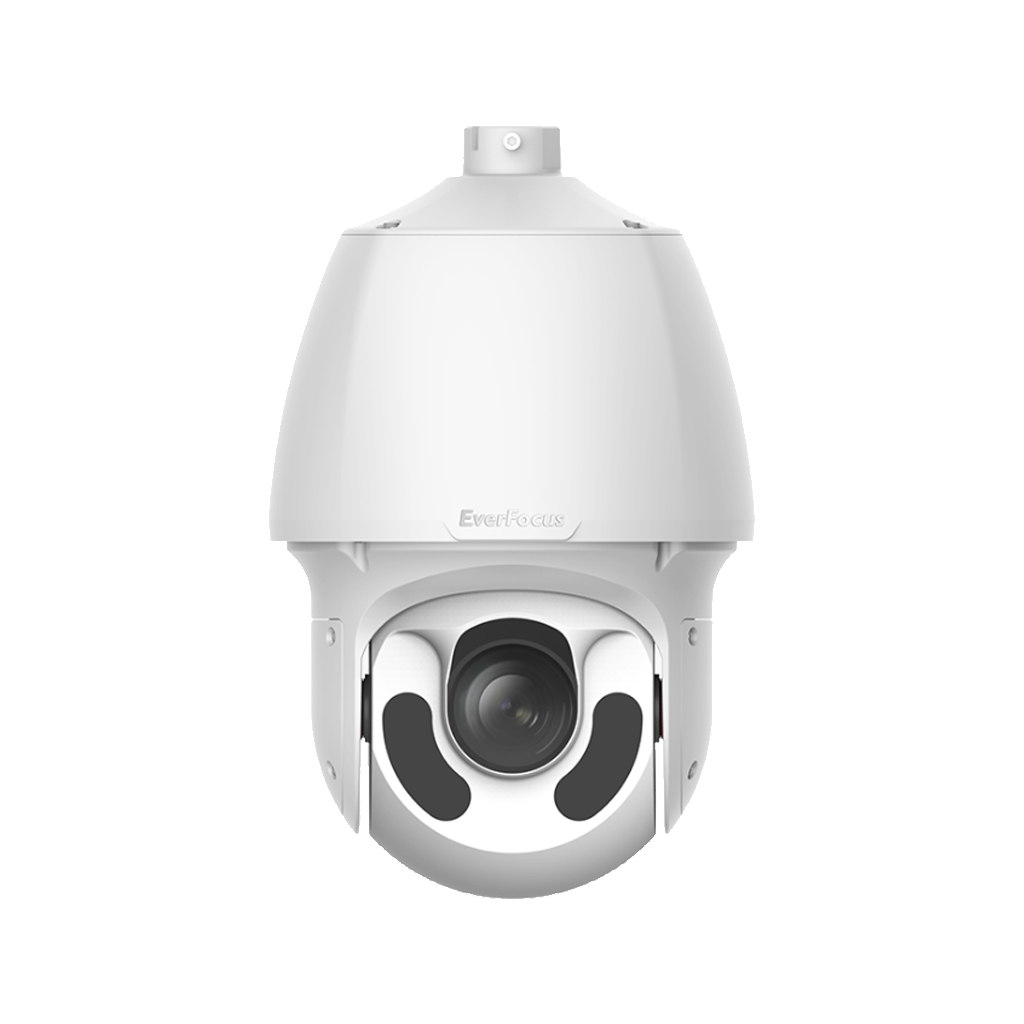

EverFocus EPNU6225
2MP 25x Lighthunter Network PTZ Dome Camera
Features
• High quality image with 2MP,1/2.8”CMOS sensor
• 1920*1080@60fps in the main stream
• Ultra 265, H.265, H.264, MJPEG
• 25X Optical Zoom
• Smart intrusion prevention, support false alarm filtering, include Cross Line, Intrusion, Enter/ Leave Area detection
• Face capture, automatic selection of best snapshots, support face detection masked area
• People Counting: support people flow counting and crowd density monitoring, suitable for different statistical scenarios
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• Smart IR, up to 150m (492 ft) IR distance
• AC 24V±25%, DC 24V±25% or PoE+(IEEE 802.3at) power supply
• Alarm 2 in and 1 out, Audio 1 in and 1 out
• IP66 ingress protection
Specifications
| Sensor | 1/2.8″ , 2.0 megapixel, progressive scan, CMOS |
| Lens | 5.0 ~ 125.0mm , automatic focusing and motorized zoom lens |
| DORI Distance | Lens (mm)5~125 / Detect (m)85.3~1706.9 / Observe (m)34.1~628.8 / Recognize (m)17.1~341.4 / Identify (m)8.5~170.7 |
| Angle of View (H) | 54.37 ° ~ 2.68 |
| Angle of View (V) | 3 2.23 ° ~ 1.51 |
| Angle of View (O) | 66.88 ° ~ 3.16 |
| Shutter | Auto ; 1s ~ 1/100,000 s |
| Minimum Illumination | Color : 0.001 lux (F1.5, AGC 0 Lux with IR |
| Day/Night | IR cut filter with auto switch (ICR) |
| Digital Noise Reduction | 2D/3D DNR |
| S/N | >52 db |
| IR Range | Up to 150m (492 ft) IR range |
| Wavelength | 850mm |
| IR On/Off Control | Auto/Manual |
| Defog | Digital Defog |
| WDR | 120db |
| Video Compression | H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 2MP(1920*1080),Max 60fps; Sub Stream: 2MP (1920*1080), Max 60fps; Third Stream: D1 (720*576), Max 60fps; |
| Video Bit Rate | 128 Kbps~16 Mbps |
| OSD | Up to 8 OSDs |
| Privacy Mask | 24 areas, up to 4 areas per scene |
| ROI | Up to 8 areas |
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 Flip |
| Smart IR | Supported |
| Flip | Normal/Flip Vertical/Flip Horizontal/180°/90°Clockwise/90°Anti clockwise |
| HLC | Supported |
| BLC | Supported |
| Audio Compression | G.711U,G.711A |
| Two way Audio | Supported |
| Suppression | Supported |
| Sampling Rate | 8KHZ |
| Edge Storage | Micro SD, up to 256 GB |
| Network Storage | ANR,NAS(NFS) |
| Smart intrusion prevention | Support false alarm filtering C ross Line detection, Intrusion detection, Enter Area detection, Leave Area detection |
| Face capture | Support, Face attributes: Gender, Age range, Glasses, Mask |
| Statistical Analysis | Support people flow counting and crowd density monitoring |
| Basic Detection | Motion detection, Audio detection, Tampering Alarm |
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication |
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API,SDK |
| Web Browser | Plug in free live view: Chrome 57.0+, Firefox 58.0+, Edge 16+, Safari 11+, Plug in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
| Audio I/O | 1 / 1 |
| Alarm I/O | 2 / 1 |
| Network | 1 * RJ45 10M/100M Base TX Ethernet |
| Power | AC 24V±25%, DC 24V±25%, PoE+ (IEEE802.3 at), Power consumption: Max 25W |
| Dimensions (Ø x H) | Ø227 x 384.8mm (Ø8.9” x 15.1”) |
| Weight | 5.28kg(11.64lb) |
| Working Environment | – 40°C ~70°C ( 40°F ~ 158°F) Humidity: 95% RH (non condensing) |
| Storage Environment | – 40°C ~70°C ( 40°F ~ 158°F) Humidity: 95% RH (non condensing) |
| Surge Protection | 6KV |
| Ingress Protection | IP66 |
| Reset button | Supported |
