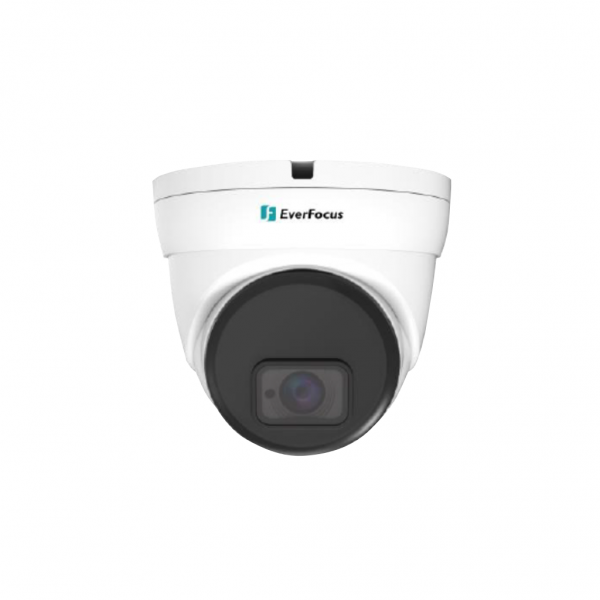

EverFocus EBN2540-SG
5-Megapixel IR & WDR, Outdoor Ball Network Camera
Features
• 5MP Progressive scan CMOS sensor
• Equipped with 3.6mm fixed lens
• Triple-streaming from H.265 / H.264
• Supports 3D DNR (Digital Noise Reduction)
• Provides True Day/Night functionality with automatic IR filter operation
• Extended IR range up to 30m / 98ft.
• Supports ONVIF
• Support video analytics
• Weather-proof IP66 rated
• Supports PoE and 12VDC
Specifications
| Pickup Device | 1/2.7″, 5.0 megapixel, progressive scan, CMOS |
| Lens | 3.6mm, fixed lens |
| FOV | Horizontal:79.9°, Vertical: 56.6°, Diagonal: 106.79° |
| F No. | 1.6±10% |
| Minimum Illumination | Color: 0.05Lux (F1.6, AGC ON) 0Lux with IR |
| Day/Night | IR cut filter with auto switch（Day/Night/Auto/Schedule） |
| Shutter | 1/5 ~ 1/20000s |
| Video Compression | H.265/H.264 |
| Frame Rate | Mainstream 5MP(2592×1944),4MP(2592×1520) 3MP(2304×1296),1080P(1920×1080) 960P(1280×960),720P(1280×720) substream 720P(1280×720),VGA(640×480),QVGA(320×240) Mobilestream VGA(640×480), QVGA（320×240） |
| S/N Ratio | ≥ 39db (AGC Off) |
| AGC | Supported |
| Triple Streams | Supported |
| AWB | Supported |
| WDR | WDR(120db) |
| 3DNR | Supported |
| Audio | Built-in microphone |
| SD Card Slot | Micro SD slot, up to 256GB |
| Password Protection | Supported |
| Reset Button | Supported |
| Supported Protocols | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP, SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| IR Distance | Up to 30m |
| Power Supply | DC12V |
| Power over Ethernet | POE(IEEE802.3af) |
| Max. Power Consumption | 7W |
| Humidity | less than ≤ 95% RH |
| Operating Temperature | -30～+60°C |
| Dimensions (Φ) x (H) | Ø100x90mm |
| Weight | appr 420g |
| Weather Resistance | IP66 |
