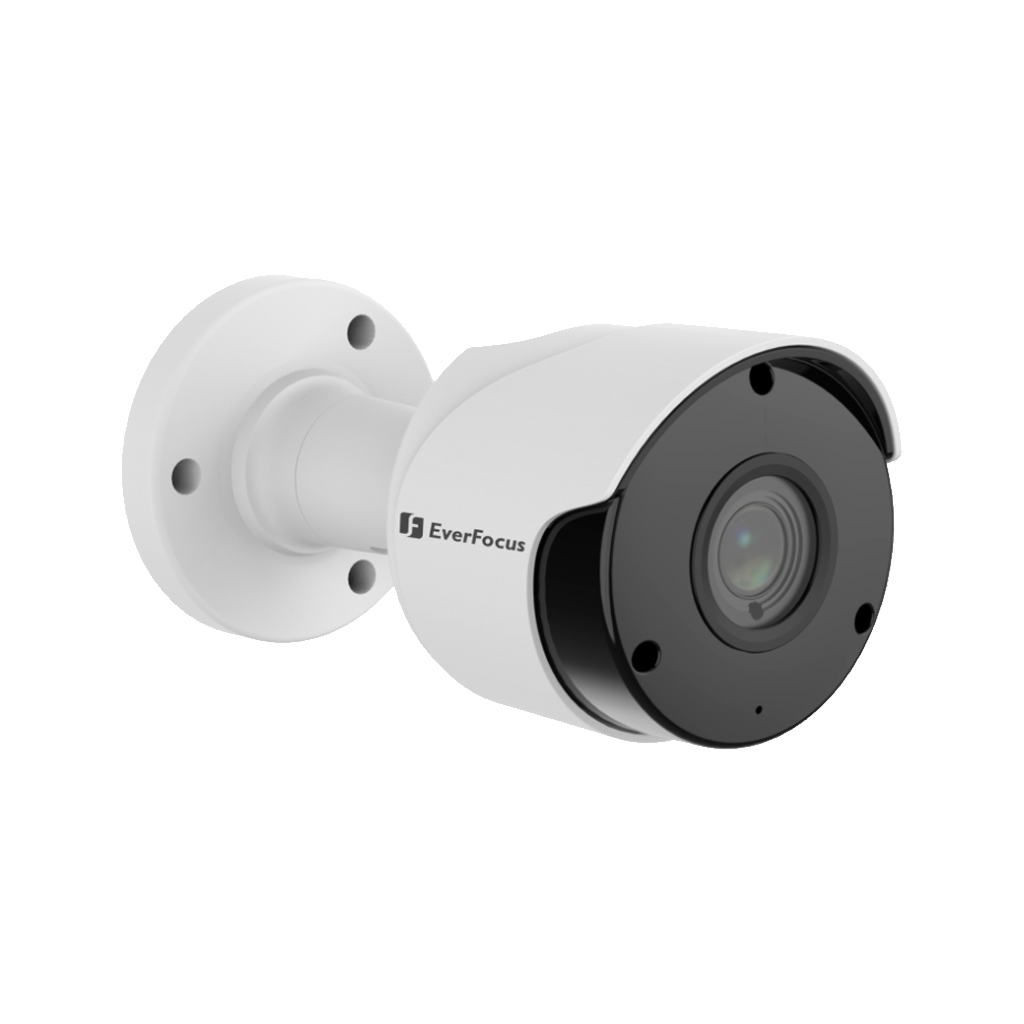

EverFocus EZA1241
2-Megapixel True Day/Night Outdoor IR Bullet Camera
Features
• 1080p Full HD CMOS sensor with high flexibility and performance for astounding image
• 3.6mm fixed lens with ICR to capture the desired field of view
• Extended IR range of up to 20m / 65ft. with 18 LEDs (depends on scene IR reflectivity)
• The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
• IP66-rated with metal housing
• Supports UTC function: Control camera OSD settings directly from DVR end
Specifications
| Pickup Device | 1080P Full HD CMOS sensor |
| System Format | NTSC / PAL (switchable via OSD) |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Scanning System | Progressive Scan |
| Sensitivity | N/A |
| Electronic Shutter | 1/25s~1/66000s , 1/30s~1/79200 |
| Gamma Correction | N/A |
| Lens Type | 3.6mm fixed lens with ICR, F2.0 |
| FOV (D x H x V) | 104° x 88° x 48° |
| BLC | On / Off |
| AGC | Auto |
| White Balance | Auto |
| Sync. Mode | Internal |
| Day / Night | Auto / Color / B&W |
| UTC Function | Supported |
| IR LEDS | 18 Units |
| IR Distance | Up to 20m / 65ft. (Depends on scene IR reflectivity) |
| Video Format | AHD / TVI / CVI / CVBS |
| S/N Ratio | ≥36dB |
| OSD Languages | English |
| DNR | 2DNR |
| SensUp | N/A |
| Mirror / Flip | N/A |
| Motion Detection | Supported |
| Privacy Mask | Supported |
| Environmental | IP66 Weather Resistant |
| Power Source | 12VDC |
| Max. Power Consumption | IR Off ≤0.5W，IR On ≤3.5W |
| Operating | -10°C ~ 50°C / 14°F ~ 122°F |
| Humidity | Less than 90% |
| Dimensions | 138.3(D) x 71.1(H) x 70.7(W)mm 5.45”x2.8”x2.78” |
| Weight | 325g / 0.71lb |
