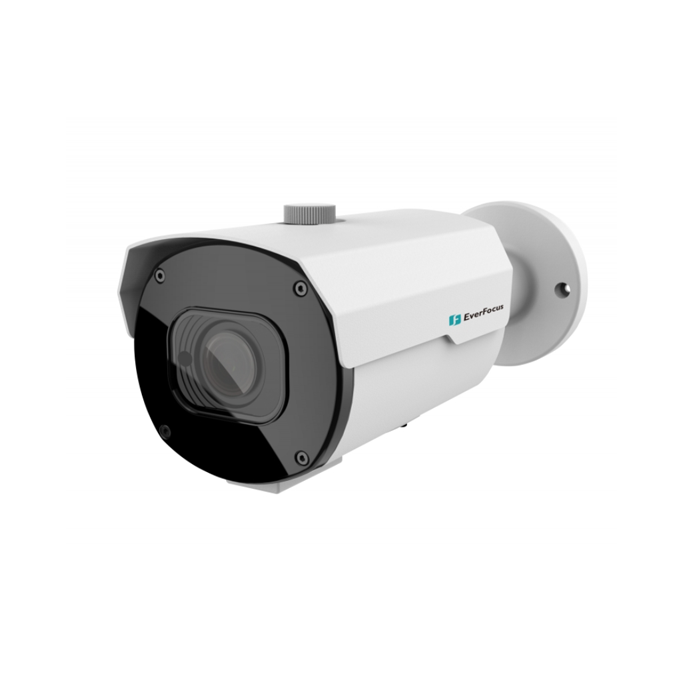

EverFocus EZN2250-SG (NDAA)
2-Megapixel IR & WDR, Outdoor Bullet Network Camera
Features
• 2MP Progressive scan CMOS sensor
• Equipped with 2.8~12mm motorized lens
• Multi-streaming from H.265 / H.264
• Supports 3D DNR (Digital Noise Reduction)
• Provides True Day/Night functionality with automatic
IR filter operation
• Extended IR range up to 45m / 148ft
• Supports video analytics
• Supports ONVIF
• Weather-proof IP66 rated
• Supports PoE and 12VDC
Specifications
| S/N Ratio | ≥ 50db (AGC Off) |
| Pickup Device | 1/2.8″, 2.0 megapixel, progressive scan, CMOS |
| Lens | 2.8-12mm, motorized lens |
| FOV | H: 101.75-33.5°, V:52.51-18.8°, D: 124.92-37.5° |
| F No. | F No. 1.8 (W) ~ 3.3(T) |
| Minimum Illumination | Color 0.05lux @ F1.2(AGC ON) ; B/W 0 lux @ IR ON |
| Day/Night | IR cut filter with auto switch（Day/Night/Auto/Schedule） |
| Shutter | 1/5 ~ 1/20000s |
| Video Compression | H.265 / H.264 |
| Frame Rate | Mainstream 1080P(1920×1080),960P(1280×960),720P(1280×720) substream 720P(1280×720),VGA(640×480),QVGA(320×240) Mobilestream VGA(640×480), QVGA（320×240） |
| S/N Ratio | ≥ 50db (AGC Off) |
| AGC | Supported |
| Triple Streams | Supported |
| AWB | Supported |
| WDR | WDR(120db) |
| 3DNR | Supported |
| Video Output | Not supported |
| Audio | Supported; 1 input / 1 output (RCA) |
| SD Card Slot | Supported;Micro SD slot, up to 256GB |
| Password Protection | Supported |
| Alarm Input / Output | Supported; 1 input / 1 output |
| Reset Button | Supported |
| Interface | RJ-45 10M/100M x 1 |
| Supported Protocols | TCP/IP,HTTP,DHCP,DNS,DDNS,RTP/RTSP,SMTP,NTP,UPnP,SNMP,HTTPS,FTP |
| Connector | DC Jack, RJ-45 |
| Image Settings | Flip, Saturation, Brightness, Contrast, Hue, Sharpness |
| Video Analytics | Not supported |
| Event Trigger | AI motion, I/O |
| Notification | Email Notification |
| IR LED | 4 units |
| IR Distance | 45m / 148ft. |
| Power Supply | DC 12V±25% |
| Power over Ethernet | PoE IEEE802.3af (Class 3) |
| Max. Power Consumption | 12VDC ≤7W / PoE 6.3W |
| Humidity | ≤95% not condensing |
| Operating Temperature | -30°C ~ 55°C / -22°F ~ 131°F |
| Dimensions (Φ) x (H) | 87.4×242.12mm |
| Weight | appr 830g |
| Weather Resistance | IP66 |
| Vandal Resistance | Not supported |
