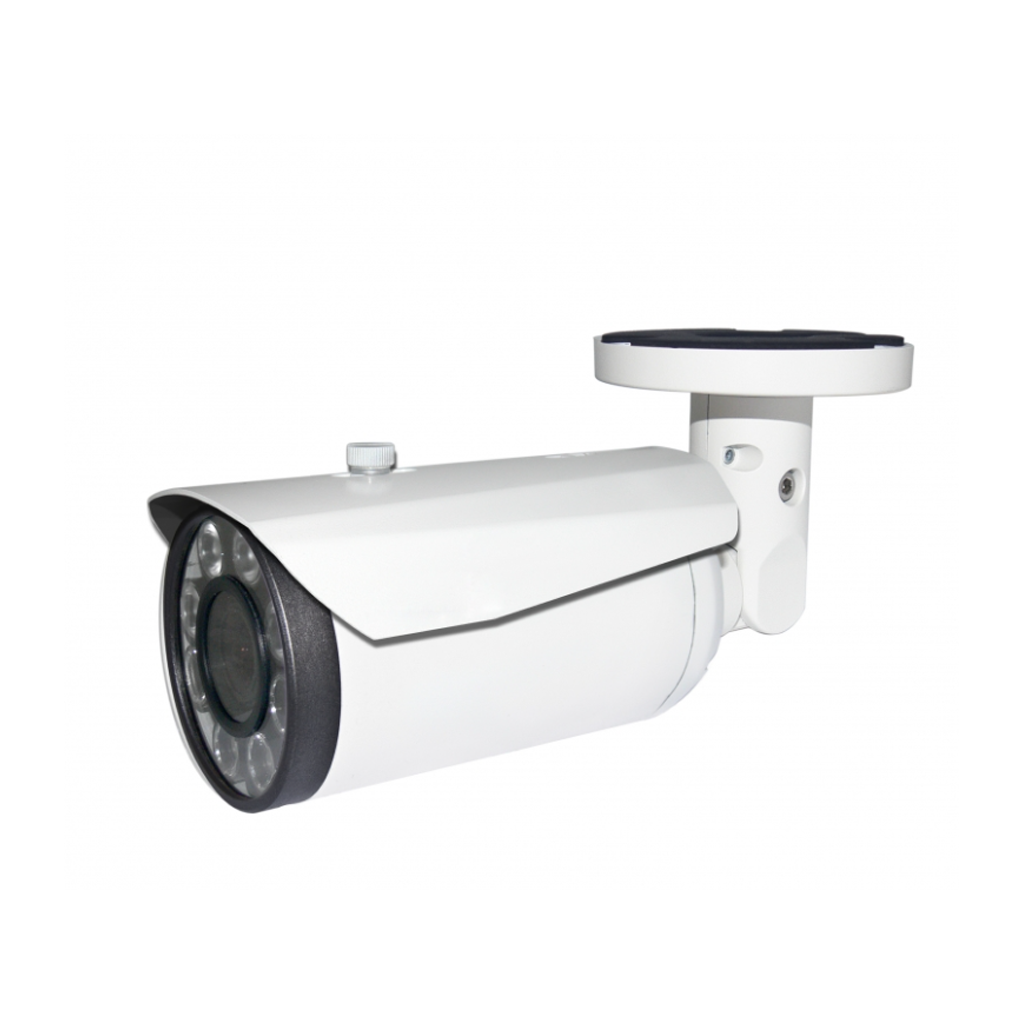

EverFocus EZA1281
2-Megapixel True Day/Night Outdoor IR Bullet Camera
- 1/2.8” 2.1 Mega-pixel Sony CMOS , delivering amazing high sensitivity
Features
- 1/2.8” 2.1 Mega-pixel Sony CMOS , delivering amazing high sensitivity
- Varifocal 2.8-12mm with ICR to capture the desired field of view
- Extended IR range of up to 40m / 131ft. with 8 LEDs (depends on scene IR reflectivity)
- D-WDR to improve the visibility under high contrast scene
- The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
- IP66-rated with metal housing
- Supports dual power (12VDC / 24VAC)Supports UTC function: Control camera OSD settings directly from DVR end
Specifications
| Pickup Device | 1/2.8” 2.1 Mega-pixel Sony CMOS |
| System Format | NTSC / PAL (switchable via OSD) |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Scanning System | Progressive Scan |
| Electronic Shutter | 1/25-1/50,000S |
| Gamma Correction | 0.45 |
| Resolution | 50Hz：25fps/1920X1080 25fps/1280X720 60Hz：30fps/1920X1080 30fps/1280X720 |
| Lens Type | 2.8-12mm Varifocal IR Lens |
| FOV (D x H x V) | 110~45° x 106~40° x 57~23° |
| BLC | Off / BLC / HLC / WDR |
| AGC | Auto |
| White Balance | ATW |
| Sync. Mode | Internal |
| Day / Night | IR cut filter with auto switch (Auto / Color / B&W / Extern) |
| UTC Function | Supported |
| IR LEDS | 8 Units |
| IR Distance | Up to 40m / 131ft. (Depends on scene IR reflectivity) |
| Video Format | AHD / TVI / CVI / CVBS |
| S/N Ratio | ≥54dB |
| OSD Languages | English / Simplified Chinese / Traditional Chinese / Japanese / Korean / Portuguese |
| DNR | Off / Middle / High / Low |
| DWDR | OFF/ON |
| SensUp | AUTO |
| Mirror / Flip | Off / On |
| Motion Detection | Supported |
| Privacy Mask | Supported |
| Environmental | IP66 Weather Resistant |
| Power Source | Dual Power (12VDC/24VAC) |
| Max. Power Consumption | 550mA (MAX) |
| Operating | -20°C ~ 50°C / 14°F ~ 122°F |
| Humidity | Less than 95% |
| Dimensions | 231(W) x 84(H) x 110(D)mm / 9.1″ x 3.3″ x4.3″ |
| Weight | 720g （25.4oz） |
| Minimum Illumination | Color：0.0001Lux（F1.6,AGC ON） 0Lux with IR |
