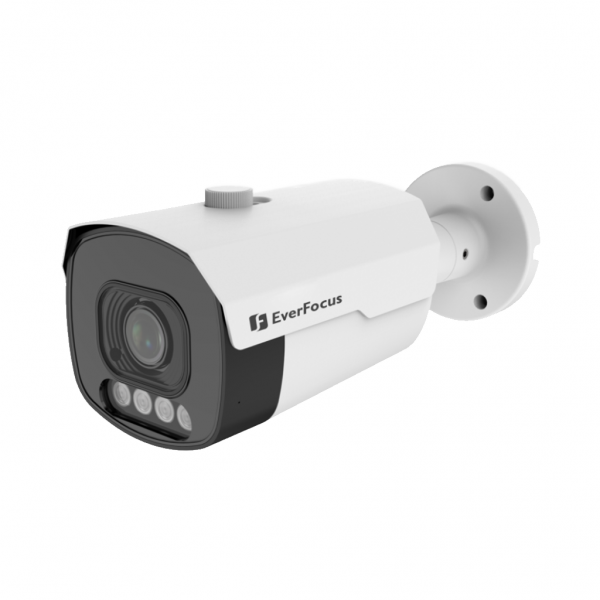

EverFocus EZN3850-NV (NDAA)
8-Megapixel IR & WDR, Full Color Outdoor Bullet Network Camera
Features
- 8MP Progressive scan CMOS sensor
- Equipped with 2.8~12mm motorized lens
- 24/7 Full color imaging
- Triple-streaming from H.265 / H.264
- Supports DWDR, 3DNR
- Warm supplemental light (WL) with 30m / 98ft
- Extended IR range up to 35m / 114ft
- Provides True Day/Night functionality with automatic IR filter operation
- Support smart video analytics
- Supports ONVIF
- Weather-proof IP66 rated
- Supports PoE and 12VDC
Specifications
| Pickup Device | 1/2.7″, 8.0 megapixel, progressive scan, CMOS |
| Lens | 2.8-12mm, motorized lens |
| FOV | Horizontal:113(W)-35.6(T)°, Vertical:58.8(W)-20.1(T)°, Diagonal:139.2(W)-40.9(T)° |
| F No. | F No. 1.2 |
| Minimum Illumination | Color 0.0002 Lux @（F1.2, AGC ON）; B/W 0 lux @ IR ON |
| Day/Night | Full Color Mode/Day & Night Mode/Schedule |
| Shutter | 1/5 ~ 1/20000s |
| Video Compression | H.265/H.264 |
| Frame Rate | Main stream: 50Hz :1-25fps@8MP/5MP/4MP/3MP/1080P/960P/720P 60Hz :1-25fps@8MP/5MP/4MP/3MP/1080P/960P/720P / Sub stream: 50Hz :1-25fps@720P/VGA/QVGA 60Hz :1-25fps@720P/VGA/QVGA / Mobile stream: 50Hz :1-25fps@VGA/QVGA 60Hz :1-25fps@VGA/QVGA |
| S/N Ratio | 36db |
| AGC | Supported |
| Triple Streams | Supported |
| WDR | DWDR |
| 3DNR | 3D DNR |
| Audio | 1 input (RCA), 1 output (RCA) |
| SD Card Slot | Supported |
| Password Protection | Supported |
| Alarm Input / Output | 1 input , 1 output |
| Reset Button | Supported |
| Supported Protocols | TCP/IP, HTTP, DHCP, DNS, DDNS, RTP/RTSP, SMTP, NTP, UPnP, SNMP, HTTPS, FTP |
| Video Analytics | Supported |
| IR Distance | 35m / 114ft |
| Power Supply | DC12V |
| Power over Ethernet | POE(IEEE802.3af) |
| Max. Power Consumption | 13W |
| Humidity | Less than ≤ 95% RH |
| Operating Temperature | -30～+55°C |
| Dimensions (Φ) x (H) | 84×240.9mm |
| Weight | appr 693g |
| Weather Resistance | IP66 |
