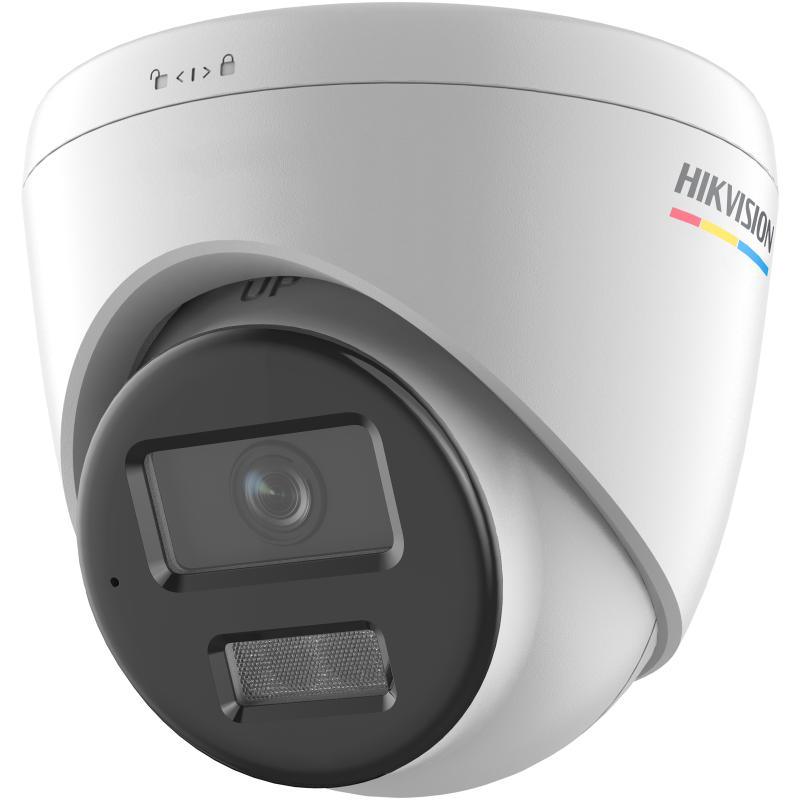

DS-2CD1367G3-LIU(F)(/SX)
6 MP ColorVu 3.0 Fixed Turret Network Camera
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor 1/2.4″ Progressive Scan CMOS
- Max. Resolution 3200 × 1800
- Min. Illumination Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time 1 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Lens
- Lens Type Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV 2.8 mm, horizontal FOV 109°, vertical FOV 60°, diagonal FOV 130° 4 mm, horizontal FOV 89°, vertical FOV 49°, diagonal FOV 105°
- Lens Mount M12
- Iris Type Fixed
- Aperture F1.0
- Depth of Field 2.8 mm: 1.9 m to ∞ 4 mm: 2.4 m to ∞
- DORI
- DORI 2.8 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m 4 mm, D: 83 m, O: 33 m, R: 16 m, I: 8 m
- Illuminator
- Supplement Light Type IR,White Light
- Supplement Light Range Up to 30 m
- Smart Supplement Light Yes
- IR Wavelength 850 nm
- Video
- Main Stream 50 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR,VBR
- Region of Interest (ROI) 1 fixed region for main stream and sub-stream
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Audio
- Audio Type Mono sound
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
- Audio Bit Rate 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate 8 kHz/16 kHz
- Environment Noise Filtering Yes
- Network
- Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP, UPnP
- Simultaneous Live View Up to 6 channels
- API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK
- User/Host Up to 32 users 3 user levels: administrator, operator, and user
- Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Client iVMS-4200,Hik-Connect
- Web Browser Plug-in required live view: IE 10, IE 11 Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR) 120 dB
- SNR ≥ 52 dB
- Image Enhancement BLC,HLC,3D DNR
- Privacy Mask 4 programmable polygon privacy masks
- Transducer
- Transducer Type NA
- Detection Angle NA
- Detection Range NA
- Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage -LIU、LIU/S(L)(RB)：NA -LIUF、LIUF/S(L)(RB)：Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone Yes,1 built-in microphone
- Built-in Speaker -LIU、-LIUF: NA -LIU/S(L)(RB)、-LIUF/S(L)(RB): Max. power consumption: 2 W, max. sound pressure level: 10 cm: 101 dB
- Audio NA
- Alarm NA
- Reset Key -LIU、LIU/S(L)(RB)：NA -LIUF、LIUF/S(L)(RB)：YES
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (person and vehicle)), video tampering alarm, exception
- Linkage -LUF/S(L)(RB): Upload to memory card, upload to FTP, trigger recording, notify surveillance center, send email, trigger capture -LU: Upload to FTP, notify surveillance center, send email, trigger capture
- General
- Power -LIU/-LIUF: 12 VDC ± 25%, 0.54 A, max. 6.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.8 W, -LIU/S(L)(RB)、-LIUF/S(L)(RB): 12 VDC ± 25%, 0.57 A, max. 6.84 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 8.3 W
- Material Metal & Plastic
- Dimension Ø110 mm × 102.7 mm (Ø4.33″ × 4.04″)
- Package Dimension 150 mm × 150 mm × 141 mm (5.91″ × 5.91″ × 5.55″)
- -LIU: Approx. 390g (0.9 lb.) -LIUF: Approx. 400g (0.9 lb.) -LIU/S(L)(RB): Approx. 420g (0.9 lb.) -LIUF/S(L)(RB): Approx. 425g (0.9 lb.)
- With Package Weight -LIU: Approx. 580g (1.3 lb.) -LIUF: Approx. 615g (1.4 lb.) -LIU/S(L)(RB): Approx. 610g (1.3 lb.) -LIUF/S(L)(RB): Approx. 615g (1.4 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
- General Function Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding
- Flashing Light -LIU、-LIUF：NA -LIU(F)/SL：White Light -LIU(F)/SRB：Red and Blue Light
- Approval
- EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Safety CB: IEC 62368-1: 2014+A11
- Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
