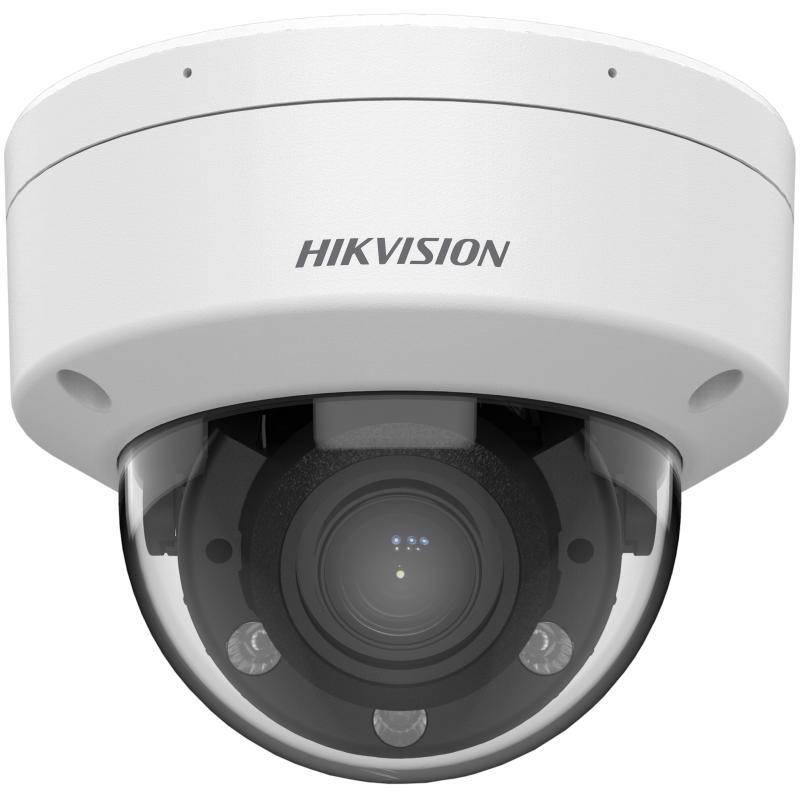

DS-2CD1723G3-LIZ(S)U(/SX)
2 MP Smart Hybrid Light 3.0 Vari-Focal Dome Network Camera
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor 1/2.9″ Progressive Scan CMOS
- Max. Resolution 1920 × 1080
- Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
- Shutter Time 1 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 355°,tilt: 0° to 75°,rotate: 0° to 355°
- Lens
- Lens Type Varifocal lens, motorized lens, 2.8 to 12 mm
- Focal Length & FOV 2.8 to 12 mm, horizontal FOV 99° to 30°, vertical FOV 52° to 17°, diagonal FOV 117° to 34°
- Lens Mount Ø14
- Focus NA
- Iris Type Fixed
- Aperture F1.6
- Depth of Field 1.5 m to ∞
- DORI
- DORI Wide: D: 48 m, O: 19 m, R: 9.6 m, I: 4.8 m Tele: D: 145 m, O: 57 m, R: 29 m, I: 14 m
- Illuminator
- Supplement Light Type IR,White Light
- Supplement Light Range Up to 30 m
- Smart Supplement Light Yes
- IR Wavelength 850 nm
- Video
- Main Stream 50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
- Sub-Stream 50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 24 fps (640 × 480, 640 × 360)
- Third Stream NA
- Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 8 Mbps
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR,VBR
- Scalable Video Coding (SVC) YES
- Region of Interest (ROI) 1 fixed regions for each stream
- Target Cropping NO
- Audio
- Audio Type Mono sound
- Audio Compression -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate -U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate -U: 8 kHz/16 kHz
- Environment Noise Filtering -U: Yes
- Network
- Protocols DHCP,QoS,FTP,SSL/TLS,ICMP,RTSP,UDP,HTTPS,HTTP,DNS,IPv6,IPv4,IGMP,RTCP,RTP,DDNS,TCP/IP,UPnP,NTP,SMTP
- Simultaneous Live View Up to 6 channels
- API ISAPI,EZVIZ,ONVIF,ISUP,SDK
- User/Host Up to 32 users 3 user levels: administrator, operator, and user
- Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Network Storage NO
- Client iVMS-4200,Hik-Connect
- Web Browser Plug-in required live view: Chrome 91+, Firefox 88+, Edge 91+
- Image
- Image Parameters Switch Yes
- Image Settings Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,AGC,adjustable by client software or web browser
- Day/Night Switch Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR) 120 dB,Digital WDR
- SNR ≥ 52 dB
- Image Enhancement BLC,HLC,3D DNR
- Privacy Mask 4 programmable polygon privacy masks
- Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone Yes,1 built-in microphone
- Built-in Speaker NA
- Audio -LIZSU: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, -LIZSU: 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm -LIZSU：1 input, 1 output (max. 12 VDC, 30 mA)
- Reset Key Yes
- Event
- Basic Event Video tampering alarm, motion detection (support alarm triggering by specified target types (human, vehicle)), exception
- Smart Event NO
- Linkage Upload to FTP, notify surveillance center, send email, trigger capture
- Deep Learning Function
- Perimeter Protection NO
- Face Capture NO
- General
- Power 12 VDC ± 25%, 0.8 A, max. 12 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 12 W
- Material Cover: Metal, main body: Plastic
- Dimension Ø121.5 mm × 97.6 mm (Ø4.78″ × 3.84″)
- Package Dimension 150 mm × 150 mm × 141 mm (5.90″ × 5.90″ × 5.55″)
- -LIZ(S)U: Approx. 520 g (1.15 lb.)
- With Package Weight -LIZ(S)U: Approx. 736 g (1.62 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
- General Function Heartbeat,mirror,password reset via email,password protection,anti-banding
- Flashing Light NA
- Approval
- EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection IP67: IEC 60529-2013
