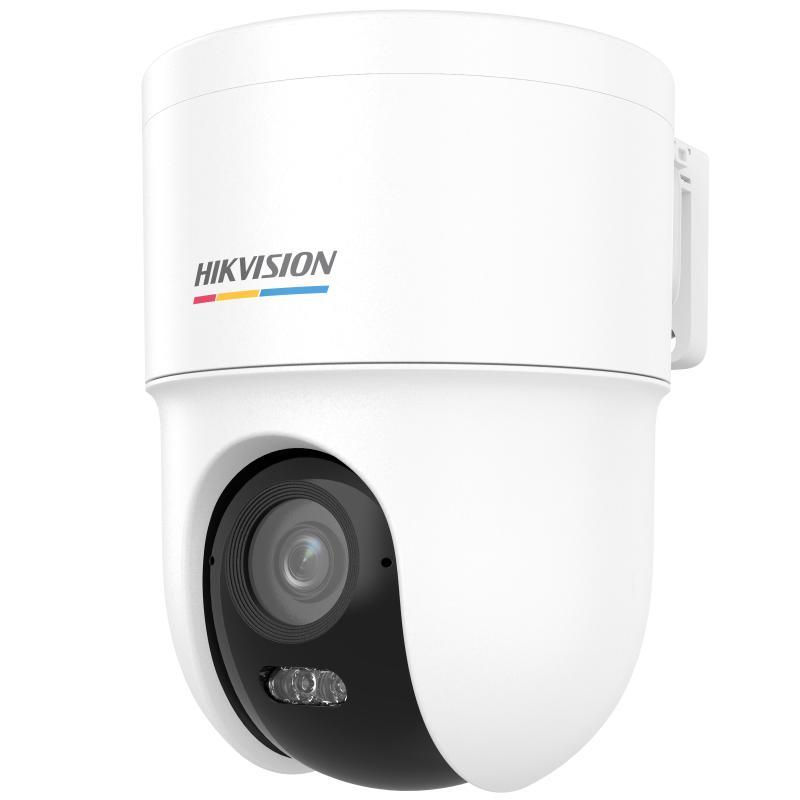

DS-2CD1F47G3H-LIU(F)(/SX)
4 MP ColorVu 3.0 Fixed PT Network Camera
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor 1/1.8″ Progressive Scan CMOS
- Max. Resolution 2560 × 1440
- Min. Illumination Color: 0.0001 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time 1 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: -170° to 170°,tilt: 0° to 80°
- Lens
- Lens Type Fixed focal lens, 2.8 and 4 mm optional
- Focal Length & FOV 2.8 mm, horizontal FOV 101°, vertical FOV 56°, diagonal FOV 120° 4 mm, horizontal FOV 86°, vertical FOV 47°, diagonal FOV 102°
- Lens Mount M16
- Iris Type Fixed
- Aperture F1.0
- Depth of Field 2.8 mm: 2.3 m to ∞ 4 mm: 2.7 m to ∞
- DORI
- DORI 2.8 mm, D: 56 m, O: 22 m, R: 11 m, I: 5 m 4 mm, D: 68 m, O: 27 m, R: 13 m, I: 6 m
- Illuminator
- Supplement Light Type IR,White Light
- Supplement Light Range Up to 30 m
- Smart Supplement Light Yes
- IR Wavelength 850 nm
- Video
- Main Stream 50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
- Sub-Stream 50 Hz: 25 fps (768 × 432, 640 × 360) 60 Hz: 24 fps (768 × 432, 640 × 360)
- Video Compression Main stream: H.265+/H.265/H.264+/H.264,, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate 32 Kbps to 16 Mbps
- H.264 Type Baseline Profile,Main Profile,High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR,VBR
- Scalable Video Coding (SVC) H.264 and H.265 encoding
- Region of Interest (ROI) 1 fixed region for main stream
- Target Cropping NA
- Audio
- Audio Type Mono sound
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate 8 kHz/16 kHz
- Environment Noise Filtering Yes
- Network
- Protocols TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPv4, IPv6, IGMP, UDP, QoS, FTP, SMTP
- Simultaneous Live View Up to 6 channels
- API ONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/Host Up to 32 users 3 user levels: administrator, operator, and user
- Security Password protection, complicated password, watermark, basic and digest authentication for HTTP, WSSE and digest authentication for Open Network Video Interface, security audit log, host authentication (MAC address)
- Client iVMS-4200,Hik-Connect
- Web Browser Plug-in required live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+
- Image
- Image Parameters Switch Yes
- Image Settings saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night Switch Day,Night,Auto,Schedule
- Wide Dynamic Range (WDR) 120 dB
- SNR ≥ 52 dB
- Image Enhancement BLC,HLC,3D DNR
- Privacy Mask 4 programmable quadrilateral privacy masks
- Interface
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in Microphone Yes,1 built-in microphone
- Built-in Speaker NA
- Audio NA
- Alarm NA
- Reset Key Yes
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human, vehicle and animal)),exception,video tampering alarm
- Smart Event NA
- Linkage Notify surveillance center,send email,trigger capture -F: Audible warning /SX: Strobe Light Flashing (White/Red-Blue, configurable)
- Deep Learning Function
- Perimeter Protection NA
- Face Capture NA
- General
- Power 12 VDC ± 15%, 0.84 A, max. 10 W, PoE: af, Class 3, max. 12 W
- Material Front cover: Plastic, body: Plastic, bracket: Plastic
- Dimension Ø110.8 mm × 145.4 mm (Ø4.36″ × 5.73″)
- Package Dimension 185 mm × 145 mm × 198 mm (7.28″ × 5.71″ × 7.8″)
- Approx. 650 g (1.43 lb.)
- With Package Weight Approx. 850 g (1.87 lb.)
- Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Language English, Russian, Ukrainian, Arabic, Spanish, French, Portuguese, Turkish, Polish, German
- General Function Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding
- Flashing Light NA
- Approval
- EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
- Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- Protection IP66: IEC 60529-2013
