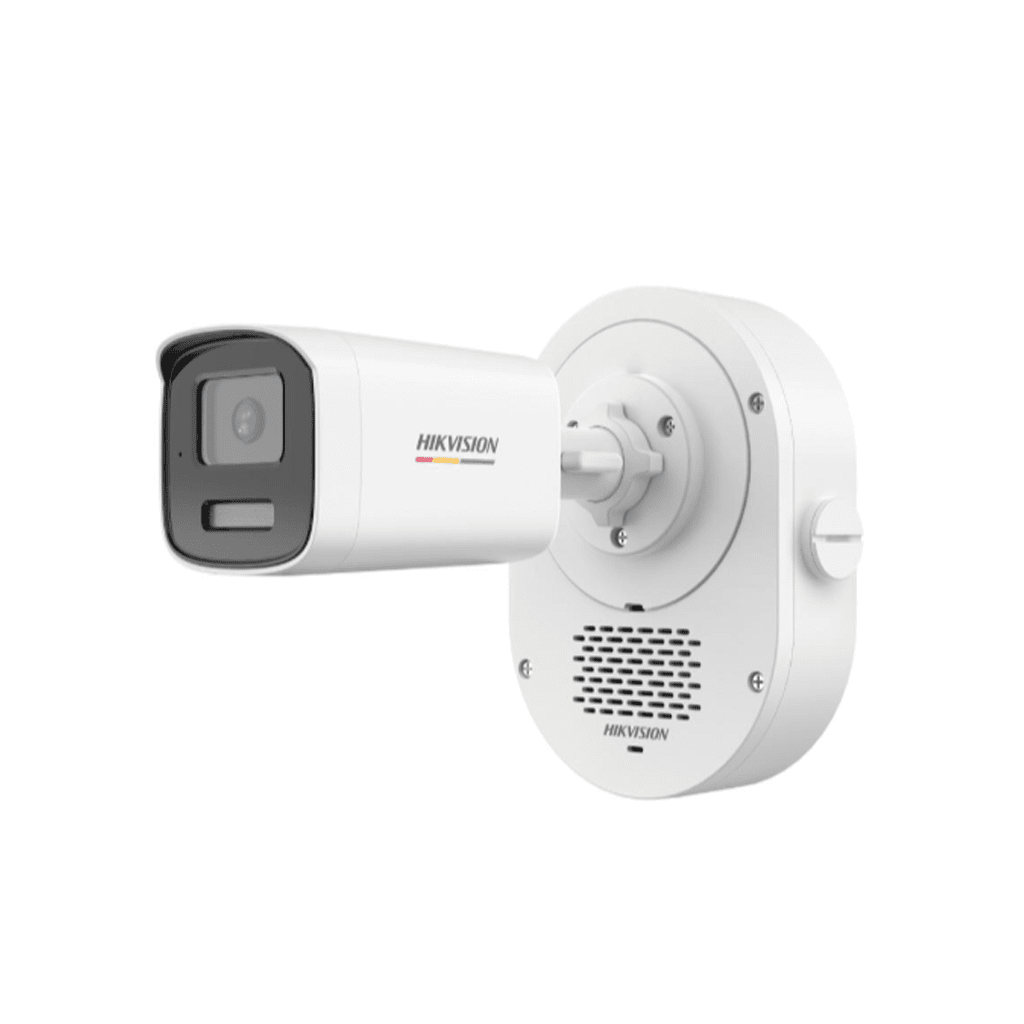

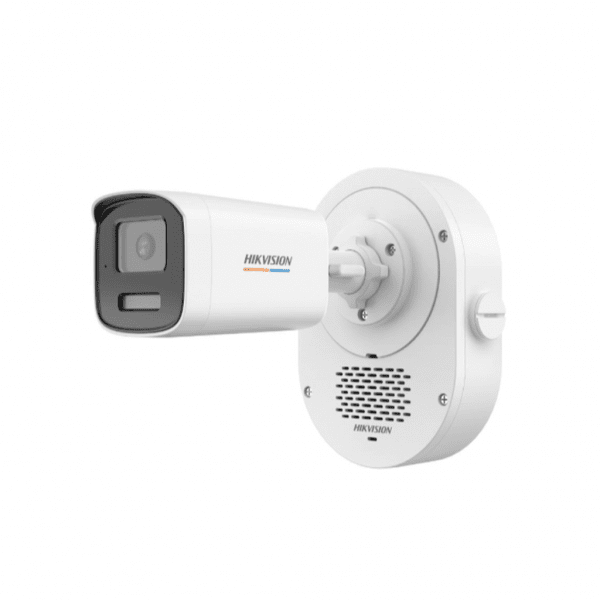

HIKVISION DS-2CD1T27G3-LIU(F)/LS(L)(RB)

2 MP ColorVu 3.0 Fixed Bullet Network Camera

SoundMax produces a louder alarm sound to deter trespassers
HikAI-ISP for excellent noise reduction effect
Super clear 24/7 colorful imaging with ColorVu 3.0 technology
Motion Detection 3.0, more accurate on person and vehicle detection
-LSL/-LSRB: Strobe Light & Audio Alarm to deter intruders
-LSL/-LSRB: Two-Way Audio via camera and Hik-Connect
Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
-F: On-board storage with SD card up to 512 GB (Optional)
Water and dust resistant (IP67)

Camera
Image Sensor	1/2.8″ Progressive Scan CMOS
Max. Resolution	1920 × 1080
Min. Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON),0 Lux with light
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
Image Settings	Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule
Wide Dynamic Range (WDR)	120 dB
SNR	≥ 52 dB
Image Enhancement	BLC,HLC,3D DNR
Privacy Mask	4 programmable rectangular privacy masks
General
Power	12 VDC ± 25%, 1.1 A, max. 13 W, Ø5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 14 W
Material	Front cover: metal, body: plastic, bracket: metal
Dimension	144.6 mm × 197 mm × 253 mm (5.69″ × 7.76″ × 9.96″)
Package Dimension	245 mm × 205 mm × 167 mm (9.65″ × 8.07″ × 6.57″)
Weight	Approx. 430 g (0.95 lb.)
With Package Weight	Approx. 1190 g (2.62 lb.)
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat,mirror,flash log,password reset via email,password protection,anti-banding
Flashing Light	-LSL: White Light-LSRB: Red and Blue Light
