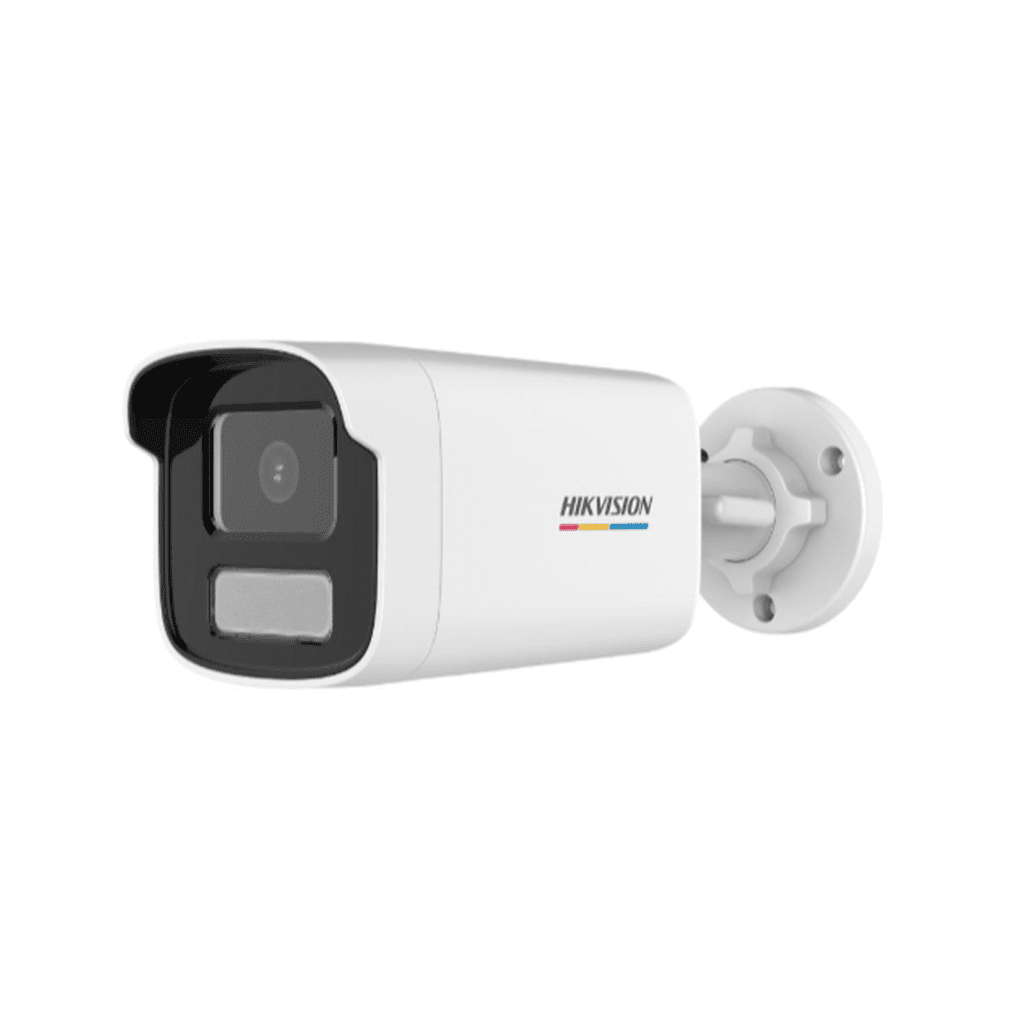

HIKVISION DS-2CD1T67G2-L(UF)
6 MP ColorVu MD 2.0 Fixed Bullet Network Camera
Features
- High quality imaging with 6 MP resolution
- 24/7 colorful imaging
- Support Human and Vehicle Detection
- Water and dust resistant (IP67)
- Clear imaging even with strong back lighting due to 120 dB WDR
- Efficient H.265+ compression technology
- -F model: Support on-board storage up to 512GB (SD card slot)(Optional)
- -U model: Built-in microphone for real-time audio security(Optional)
Specifications
| Camera | |
| Image Sensor | 1/2.4″ Progressive Scan CMOS |
| Max. Resolution | 3200 × 1800 |
| Min. Illumination | Color: 0.001 Lux @ (F1.0, AGC ON),0 Lux with light |
| Shutter Time | 24/7 color imaging |
| Day & Night | 1/3 s to 1/100,000 s |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360° |
| Image | |
| Image Settings | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| General | |
| Power | 12 VDC ± 25%, 5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7.2 W |
| Material | Front cover: metal, body: plastic, bracket: metal |
| Dimension | 83.7 mm × 80.7 mm × 205.6 mm (3.3″ × 3.2″ × 8.1″) |
| Package Dimension | 260 mm × 125 mm × 125 mm (10.2″ × 4.9″ × 4.9″) |
| Weight | -L: Approx. 560 g (1.2 lb.), -LUF: Approx. 580 g (1.3 lb.) |
| With Package Weight | -L: Approx. 615 g (1.4 lb.), -LUF: Approx. 635 g (1.4 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,anti-banding,mirror,password protection,password reset via email |
