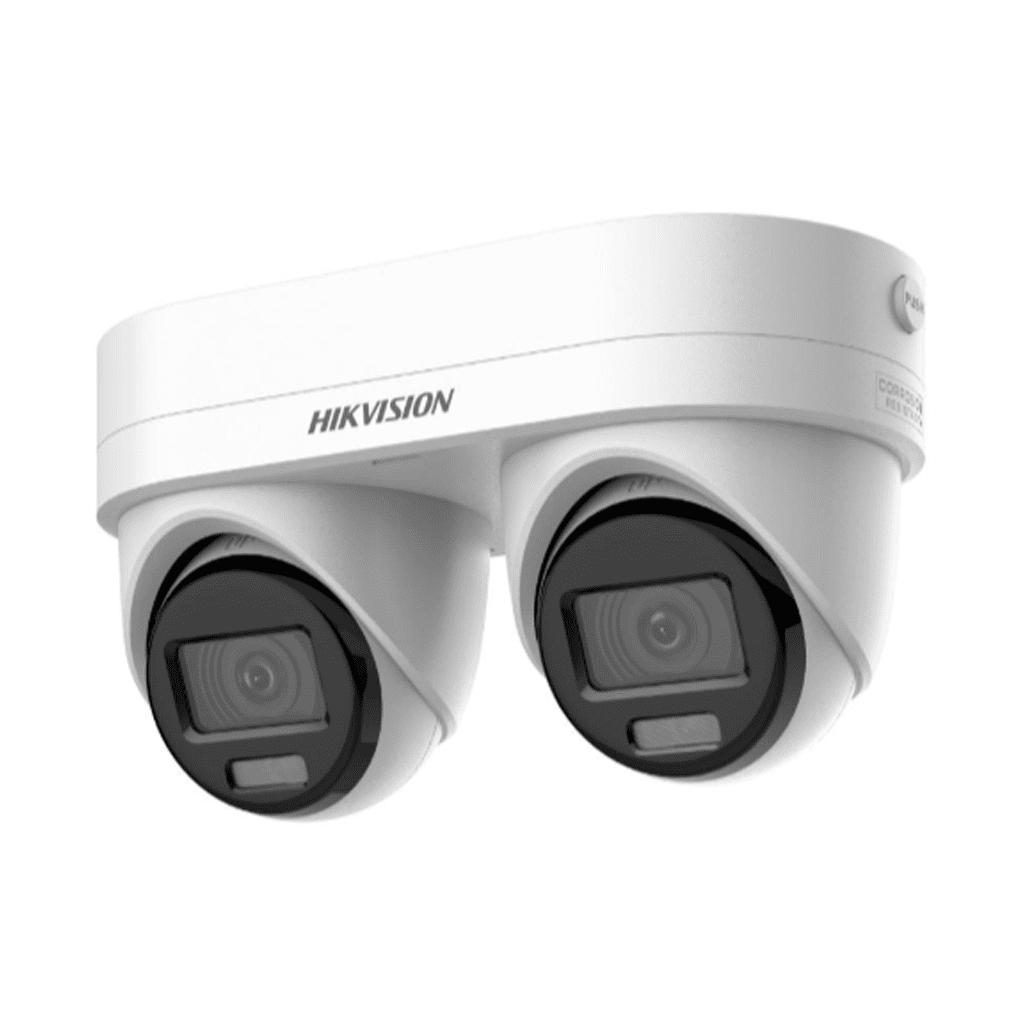

HIKVISION DS-2CD2343G2D-LIZ2UY/S(L)(RB)
4 MP Dual-lens Fixed point zoom Turret Network Camera
Features
- 2 independent channels, 1 wiring, 1 IP
- 2.8/4 mm in one camera, point-to-point zoom
- Innovative interpolated design, highly waterproof and user-friendly
- Active strobe light and audio alarm to warn intruders off
- Anti-corrosion design (NEMA 4X), more reliable
- Smart Hybrid Light: integrates IR and white lights, 3 supplemental lighting modes
- Crystal-clear audio with Arrayed Dual-Mic
- Person and vehicle classification based on deep learning
Specifications
| Camera | |
| Image Sensor | Channel 1: 1/3″ Progressive Scan CMOS, Channel 2: 1/3 Progressive Scan CMOS” |
| Max. Resolution | Channel 1: 2688 × 1520, Channel 2: 2688 × 1520 |
| Min. Illumination | Channel 1: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR, Channel 2: Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Shutter Time | 1/3 s to 1/100,000 s |
| Day & Night | Channel 1: IR cut filter, Channel 2: IR cut filter |
| Angle Adjustment | Channel 1: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°, Channel 2: Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
| Image | |
| Image Parameters Switch | Yes |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Image Settings | Rotate mode |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | 8 programmable polygon privacy masks |
| General | |
| Power | 12 VDC ± 25%, 1.42 A, max. 17 W,two-core terminal block,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 18 W |
| Material | Metal |
| Dimension | 199.9 mm × 120.1 mm × 97.2 mm (7.87″ × 4.73″ × 3.83″) |
| Package Dimension | 305 mm × 162 mm × 165 mm (12.01″ × 6.38″ × 6.5″) |
| Weight | Approx. 1200 g (2.6 lb.) |
| With Package Weight | Approx. 1567 g (3.5 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,mirror,flash log,password reset via email,pixel counter,anti-banding |
| Flashing Light | SRB models: Red and Blue Light Other models: White Light |
