描述
海康威視 DS-2CD2343G2P-LISU/S(L)(RB) 是 4MP 全景 AcuSense 定焦半球網絡鏡頭，視角 180°，支援人形及車輛偵測、H.265+、最大 512GB 記憶卡及雙向對講。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、閉路電視安裝。

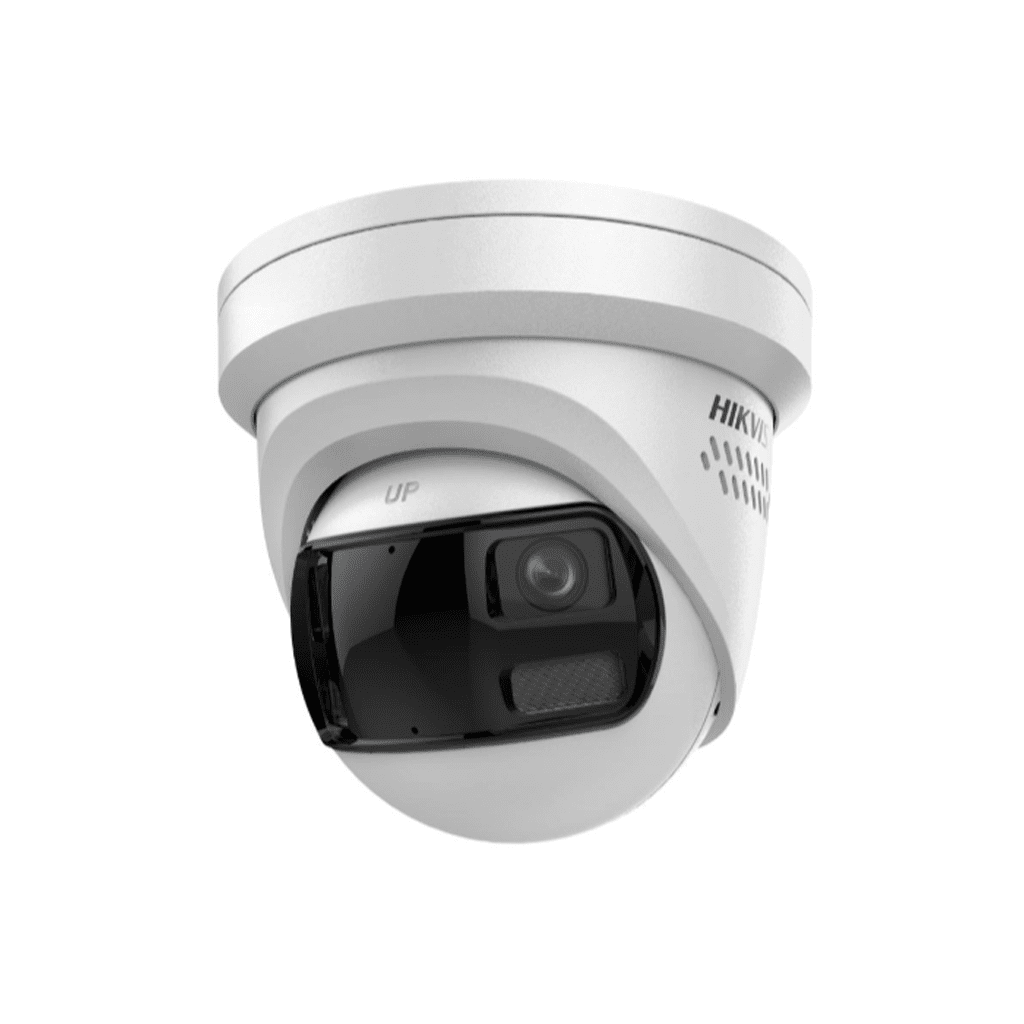

HIKVISION DS-2CD2343G2P-LISU/S(L)(RB)
4 MP Panoramic AcuSense Fixed Turret Network Camera
Features
- 180° Field of view
- High quality imaging with 4 MP resolution
- Support Person and Vehicle Detection
- Smart Hybrid Light: advanced technology with long range
- Efficient H.265+ compression technology
- Support on-board storage up to 512 GB (SD card slot)
- Provide real-time security via built-in two-way audio
- Water and dust resistant (IP67)
- Active strobe light and audio alarm to warn intruders off
Specifications
| Camera | |
| Image Sensor | 1/2.5″ Progressive Scan CMOS |
| Max. Resolution | 3008 × 1328 |
| Min. Illumination | Color: 0.005 Lux @ (F1.6, AGC ON),0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Angle Adjustment | Pan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360° |
| Image | |
| Image Parameters Switch | Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser |
| Day/Night Switch | Day,Night,Auto,Schedule |
| Wide Dynamic Range (WDR) | 120 dB |
| SNR | ≥ 52 dB |
| Image Enhancement | BLC,HLC,3D DNR |
| Privacy Mask | 4 programmable polygon privacy masks |
| General | |
| Power | 12 VDC ± 25%, 0.83 A, max. 10 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 11.5 W |
| Material | Base: Metal , cover: Metal |
| Dimension | Ø138.6 mm × 125 mm (Ø5.46″ × 4.9″) |
| Package Dimension | 170 mm × 170 mm × 160 mm (6.7″ × 6.7″ × 6.3″) |
| Weight | Approx. 808 g (1.781 lb.) |
| With Package Weight | Approx. 1050 g (2.315 lb.) |
| Storage Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Heartbeat,anti-banding,password protection,password reset via email |
| Flashing Light | /SRB model: Red and Blue Light /SL model: White Light |
