DS-2CD2443G2-I

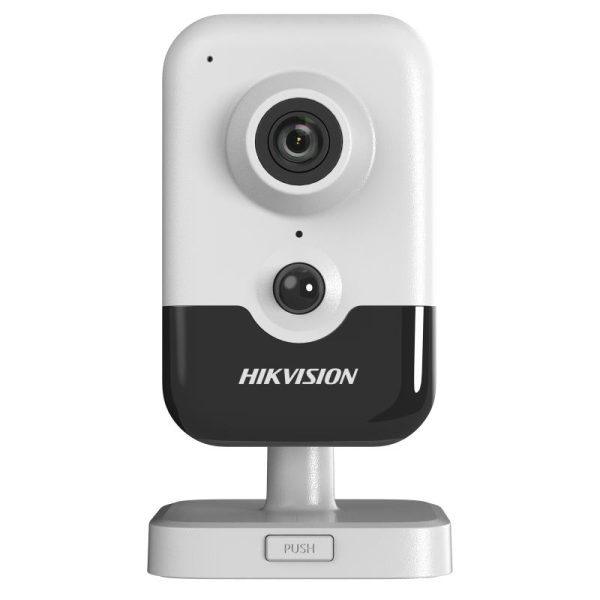

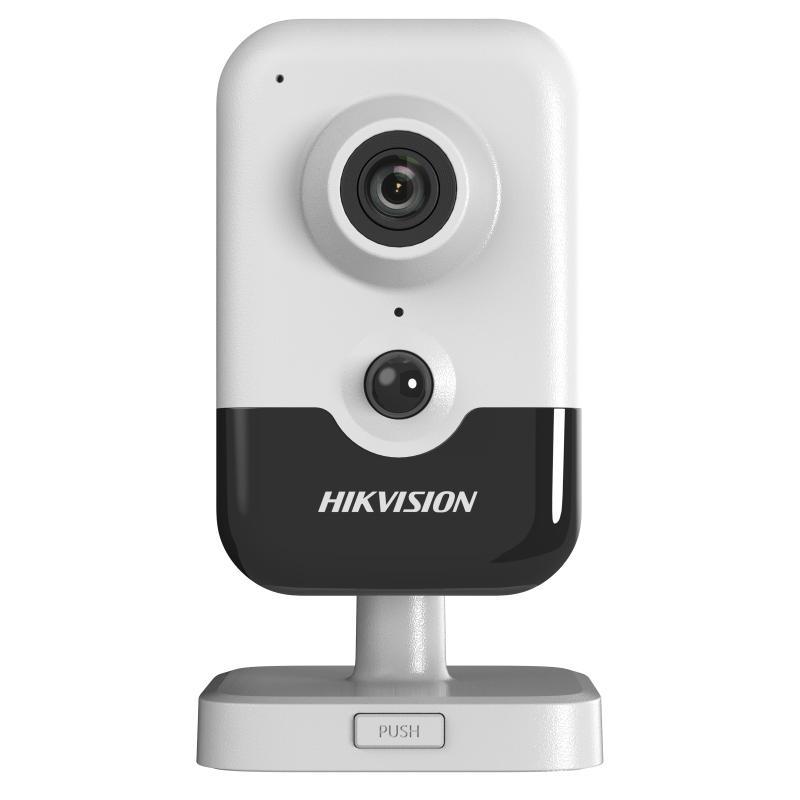

4 MP AcuSense Built-in Mic Fixed Cube Network Camera
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor 1/3″ Progressive Scan CMOS
- Max. Resolution 2688 × 1520
- Min. Illumination 2 mm: color: 0.008 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR 2.8 mm and 4 mm: color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
- Shutter Time 1/3 s to 1/100,000 s
- Day & Night IR cut filter
- Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
- Lens
- Focal Length & FOV 2 mm, horizontal FOV 128.4°, vertical FOV 75.4°, diagonal FOV 147.1° 2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8° 4 mm, horizontal FOV 83.7°, vertical FOV 43°, diagonal FOV 100.3°
- Aperture 2 mm: F2.0 2.8 mm: F1.6 4 mm: F1.6
- Lens Mount M12
- DORI
- DORI 2 mm: D: 45.5 m, O: 18.0 m, R: 9.1 m, I: 4.5 m 2.8 mm: D: 56.0 m, O: 22.2 m, R: 11.2 m, I: 5.6 m 4 mm: D: 79.4 m, O: 31.5 m, R: 15.9 m, I: 7.9 m
- Illuminator
- Supplement Light Type IR
- Supplement Light Range Up to 10 m
- IR Wavelength 850 nm
- Smart Supplement Light Yes
- Video
- Main Stream 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
- Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
- Video Bit Rate 32 Kbps to 8 Mbps
- H.264 Type Baseline Profile/Main Profile/High Profile
- H.265 Type Main Profile
- Bit Rate Control CBR/VBR
- Scalable Video Coding (SVC) Yes
- Region of Interest (ROI) 1 fixed region for main stream and sub-stream
- Audio
- Environment Noise Filtering Yes
- Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Network
- Simultaneous Live View Up to 6 channels
- API ONVIF (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
- Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
- User/Host Up to 32 users 3 user levels: administrator, operator, and user
- Security Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
- Network Storage NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- Client iVMS-4200, Hik-Connect, Hik-Central
- Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Image
- Wide Dynamic Range (WDR) 120 dB
- Privacy Mask 4 programmable polygon privacy masks
- Day/Night Switch Day, Night, Auto, Schedule
- Image Enhancement BLC, HLC, 3D DNR
- Image Parameters Switch Yes
- Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
- Transducer
- Detection Angle Horizontal: 90°, vertical: 80°
- Transducer Type PIR
- Detection Range Up to 8 m
- Interface
- Built-in Microphone Yes
- Built-in Speaker Power: 1 W. Max. sound pressure level: 10 cm: 91 dB.
- On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Reset Key Yes
- Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Smart Event Face detection
- Linkage Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, audible warning
- Deep Learning Function
- Perimeter Protection Line crossing, intrusion Support alarm triggering by specified target types (human and vehicle)
- General
- Power 12 VDC ± 25%, 0.49 A, max. 5.8 W, Ø5.5 mm coaxial power plug PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.19 A to 0.12 A, max. 6.8 W
- Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- General Function Heartbeat, mirror, password reset via email, pixel counter, anti-banding
- Storage Conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions -10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
- Material Plastic
- Dimension 2 mm: 102.9 mm × 65.2 mm × 28.8 mm (4.1″ × 2.6″ × 1.1″) 2.8 mm and 4 mm: 102.9 mm × 65.2 mm × 32.6 mm (4.1″ × 2.6″ × 1.3″)
- Package Dimension 150 mm × 125 mm × 99 mm (5.9″ × 4.9″ × 3.9″)
- Approx. 120 g (0.3 lb.)
- With Package Weight Approx. 430 g (0.9 lb.)
- Approval
- EMC FCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); KC (KN 32: 2015, KN 35: 2015)
- Safety UL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017)
- Environment CE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
