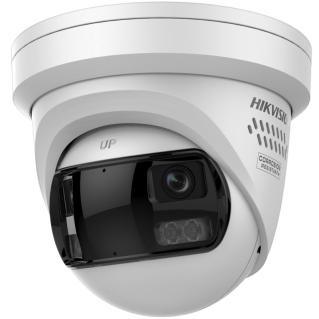

DS-2CD33167G3P-LIHSUY/SL
16 MP Panoramic ColorVu Fixed Turret Network Camera
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor1/1.8″ Progressive Scan CMOS
- Max. Resolution5968 × 2688
- Min. IlluminationColor: 0.0008 Lux @ (F1.0, AGC ON),0 Lux with light
- Shutter Time1 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 75°,rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8 mm
- Focal Length & FOV2.8 mm, horizontal FOV 182.2°, vertical FOV 71.2°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.0
- Depth of Field2.8 mm: 2 m to ∞
- DORI
- DORI2.8 mm: D: 80 m, O: 32 m, R: 16 m, I: 8 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 40 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- Video
- Main Stream50Hz： 12.5fps(5968 × 2688, 4096 × 1856) 60Hz： 15fps(5968 × 2688, 4096 × 1856)
- Sub-Stream50Hz： 12.5fps(1200 × 536, 960 × 432) 60Hz： 15fps(1200 × 536, 960 × 432)
- Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 40 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI)1 fixed regions for each stream
- e-PTZNO
- Audio
- Audio Type-U:Mono sound
- Audio Compression -U:G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise Filtering-U: Yes
- Network
- ProtocolsUPnP,SFTP,ICMP,802.1X,WebSocket,PPPoE,DHCP,IGMP,SNMP,WebSockets,FTP,SMTP,HTTPS,HTTP,RTP,RTCP,TCP/IP,SSL/TLS,RTSP,DDNS,UDP,QoS,IPv4,IPv6,NTP,DNS
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/HostUp to 32 users 3 user levels: administrator, operator, and user
- Security802.1X authentication(EAP-LEAP,EAP-TLS,EAP-MD5,EAP-PEAP), Password protection, RTP/RTSP over HTTPS, host authentication (MAC address), basic and digest authentication for HTTP/HTTPS, TLS 1.2, security audit log, complicated password, control timeout settings, IP address filter, HTTPS encryption, WSSE and digest authentication for Open Network Video Interface, AES128/256, TLS 1.3, watermark
- Network StorageNAS (NFS, SMB/CIFS)
- ClientiVMS-4200,Hik-Connect,Hik-Central
- Web BrowserPlug-in free live view: Chrome 91+, Firefox 88+, Edge 91+, Safari 13+ Local service: Chrome 91+, Firefox 88+, Edge 91+
- Image
- Image Parameters SwitchYes
- Image Settingssaturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR,Distortion Correction,Defog
- SNR≥ 52 dB
- Wide Dynamic Range (WDR)130 dB
- Image StabilizationNo
- Privacy Mask4 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in SpeakerMax. power consumption: 2 W, max. sound pressure level: 10 cm: 110 dB.
- AudioBuilt-in Microphone: Arrayed dual-microphone, 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- Alarm 1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
- Reset KeyYes
- Power Output12 VDC, max. 100 mA
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception,alarm input and output
- Smart EventScene change detection
- Linkagenotify surveillance center,trigger alarm output,trigger recording,trigger capture,audible warning,send email
- Deep Learning Function
- Face CaptureNo
- People CountingNO
- Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
- General
- Power 12 VDC ± 25%, 1.67 A, max. 20 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: IEEE 802.3at, Class 4, max. 24 W
- Material Cover: Metal, main body: Metal
- DimensionØ138.6 mm × 125 mm (Ø5.46″ × 4.92″)
- Package Dimension170 mm × 170 mm × 160 mm (6.69″ × 6.69″ × 6.30″)
- Approx. 840 g (1.85 lb.)
- With Package WeightApprox. 1070 g (2.36 lb.)
- Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
- General FunctionHeartbeat,flash log,password reset via email,pixel counter,anti-banding
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Flashing LightWhite Light
- Approval
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
- Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
- EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013,IK10: IEC 62262:2002
- Anti-Corrosion ProtectionNEMA 4X (NEMA 250-2018)
