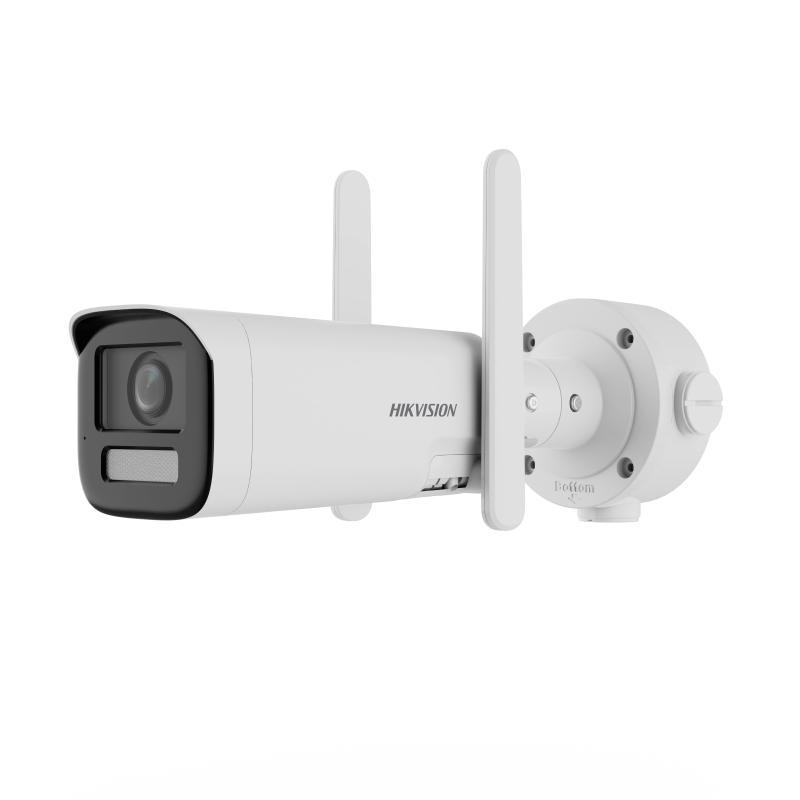

DS-2CD3T46G2-LIDSU/4G/SL
4MP 4G Fixed Bullet Network Camera
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- Camera
- Image Sensor1/3″ Progressive Scan CMOS
- Max. Resolution2688 × 1520
- Min. IlluminationColor: 0.003 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
- Shutter Time1 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
- Lens
- Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
- Focal Length & FOV2.8 mm, horizontal FOV 102°, vertical FOV 55°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 46°, diagonal FOV 99° 6 mm, horizontal FOV 53°, vertical FOV 29°, diagonal FOV 62°
- Lens MountM12
- Iris TypeFixed
- ApertureF1.4
- Depth of Field2.8 mm: 1.7 m to ∞ 4 mm: 1.6 m to ∞ 6 mm: 3.7 m to ∞
- DORI
- DORI2.8 mm: D: 63 m, O: 25 m, R: 12 m, I: 6 m 4 mm: D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm: D: 126 m, O: 50 m, R: 25 m, I: 12 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 60 m
- Smart Supplement LightYes
- IR Wavelength850 nm
- HEOP
- Open ResourcesMemory: 60 MB, Smart RAM: 401 MB, eMMC: 2 GB
- Computing Power1.5 TOPS
- Open CapabilityHEOP 2.0 OpendevSDK
- Deep Learning StructureCaffe,PyTorch,TensorFlow,PaddlePaddle, ONNX
- Programming LanguageC,C++
- Video
- Main Stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
- Sub-Stream50 Hz: 25 fps (1280 × 720, 768 × 432, 640 × 360) 60 Hz: 30 fps (1280 × 720, 768 × 432, 640 × 360)
- Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
- Fourth Stream50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
- Video Compression Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264, Fourth stream: H.265/H.264/MJPEG
- Video Bit Rate32 Kbps to 8 Mbps
- H.264 TypeBaseline Profile,Main Profile,High Profile
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Scalable Video Coding (SVC)H.264 and H.265 encoding
- Region of Interest (ROI) 5 fixed regions for main stream
- Target CroppingYes
- Audio
- Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
- Audio TypeMono sound
- Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
- Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
- Environment Noise FilteringYes
- Network
- ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, SSL/TLS, SFTP, SNMP, WebSocket, WebSockets, SRTP
- Simultaneous Live ViewUp to 6 channels
- APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- User/HostUp to 32 users 3 user levels: administrator, operator, and user
- SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
- Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
- ClientiVMS-4200,Hik-Connect,Hik-Central
- Web BrowserPlug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
- Mobile Communication
- StandardLTE-TDD,LTE-FDD
- FrequencyEU: LTE-TDD: B38/B40/B41 LTE-FDD: B1/B3/B5/B7/B8/B20/B28 LA: LTE-TDD: B38/B40 LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66
- Uplink and Downlink Data RateCat 4, uplink: 50 Mbps, downlink: 150 Mbps
- SIM Card TypeMicro SIM
- Image
- Image Parameters SwitchYes
- Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
- Day/Night SwitchDay,Night,Auto,Schedule,Alarm Trigger
- Wide Dynamic Range (WDR)120 dB
- Image EnhancementBLC,HLC,3D DNR,Defog
- SNR≥ 52 dB
- Privacy Mask8 programmable polygon privacy masks
- Interface
- Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Alarm 1 inputs, 1 outputs (max. 24 VDC/24 VAC, 1 A)
- Built-in Microphone 2 built-in microphones
- Built-in Speaker 1 built-in speaker,Max. power consumption: 2 W, max. sound pressure level: 10 cm: 97 dB.
- Reset KeyYes
- Audio1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
- RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
- Power OutputNA
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
- Smart EventScene change detection,audio exception detection,defocus detection, unattended baggage detection, object removal detection
- LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning,white light flashing
- Deep Learning Function
- Perimeter Protection Line crossing, intrusion, region entrance, region exiting Support alarm triggered by specified target types (human and vehicle)
- Face CaptureYes
- People CountingYes
- General
- Power 12 VDC ± 25%, 1.3 A, max. 15.5 W,Ø5.5 mm coaxial power plug,reverse polarity protection
- MaterialFront cover: Metal, body: Plastic, bracket: Metal
- Dimension324.8 mm × 105.3 mm × 200.8 mm (12.79″ × 4.15″ × 7.91″)
- Package Dimension350 mm × 195 mm × 150 mm (13.78″ × 7.68″ × 5.91″)
- Approx. 865 g (1.91 lb.)
- With Package WeightApprox. 1280 g (2.82 lb.)
- Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
- General FunctionHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
- Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
- Flashing LightWhite Light
- Approval
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
- SafetyCB: IEC 62368-1: 2014+A11
- EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- ProtectionIP67: IEC 60529-2013
