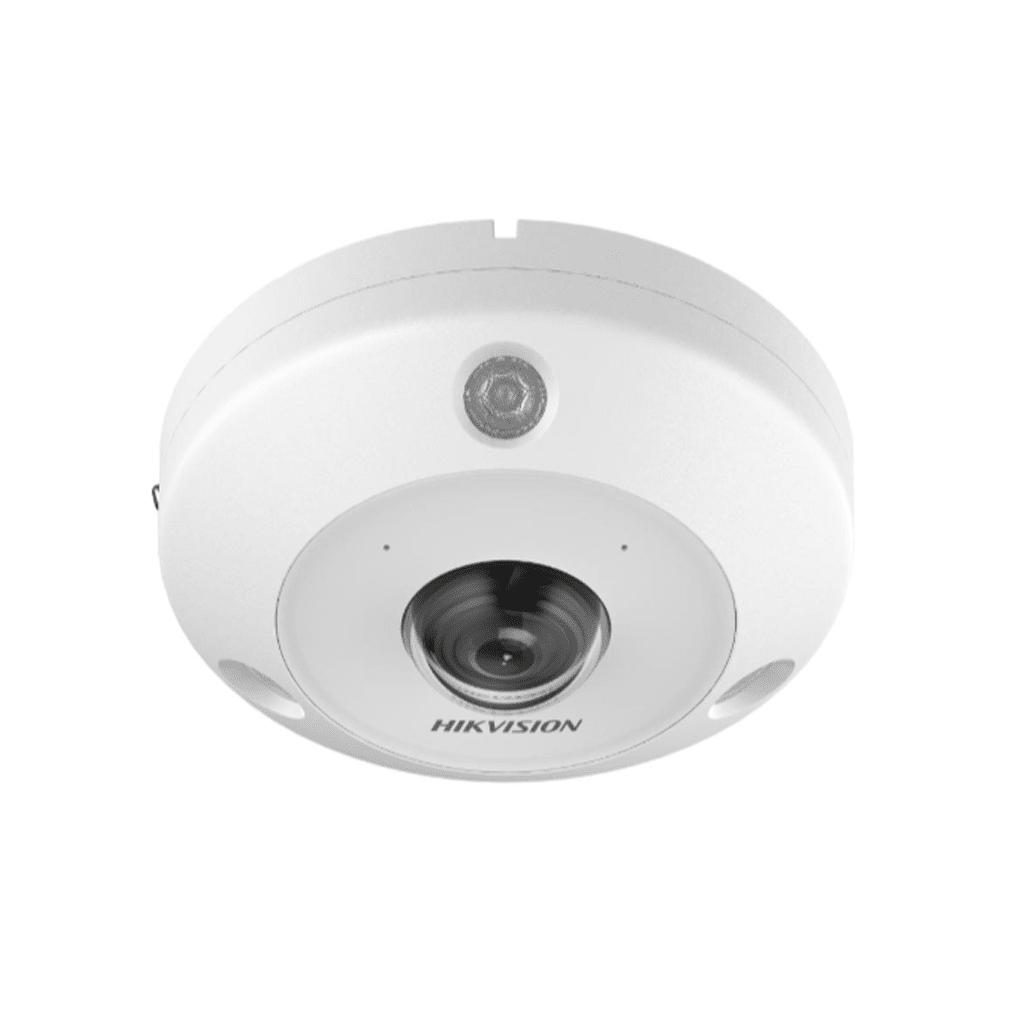

HIKVISION DS-2CD6395G1E-IVS

9 MP DeepinView Fisheye Network Camera

Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
Built-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication
Built-in IR light: an IR range of 15 meters provides good visibility in low or even zero-light environments
High resolution 9 MP: capturing clear images even when dewarped into 4-image PTZ mode
Each image is clear and detailed
Water and dust resistant (IP67) and vandal resistant (IK10)

Camera
Image Sensor	1/1.8″ Progressive Scan CMOS
Max. Resolution	3024 × 3024
Min. Illumination	Color: 0.01 Lux @ (F2.25, AGC ON),B/W: 0.005 Lux @ (F2.25, AGC ON),B/W: 0 Lux with IR
Shutter Time	1 s to 1/100,000 s
Day & Night	IR cut filter
Image Parameters Switch	Yes
Image Settings	saturation,brightness,contrast,sharpness,white balance,AGC,adjustable by client software or web browser
Day/Night Switch	Day,Night,Auto,Schedule,Alarm Trigger
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	BLC,HLC,3D DNR,Distortion Correction,Defog
Privacy Mask	8 programmable polygon privacy masks
Picture Overlay	LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format
General
Power	12 VDC ± 20%, 0.8 A, max. 9.6 W,two-core terminal block, PoE: IEEE 802.3af, Class 3, max. 9.6 W
Material	Metal
Dimension	Ø140.3 mm × 59.4 mm (Ø5.5″ × 2.3″)
Package Dimension	260 mm × 230 mm × 135 mm (10.2″ × 9.1″ × 5.3″)
Weight	Approx. 715 g (1.58 lb.)
With Package Weight	Approx. 1206 g (2.66 lb.)
Storage Conditions	-30 °C to 60 °C (-30 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions	-30 °C to 60 °C (-30 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat,flash log,password reset via email,password protection,one-key reset,anti-banding
Cable Length	0.31 m (1.02 ft.)
