DS-2CD6B55G0-PL(/T1)

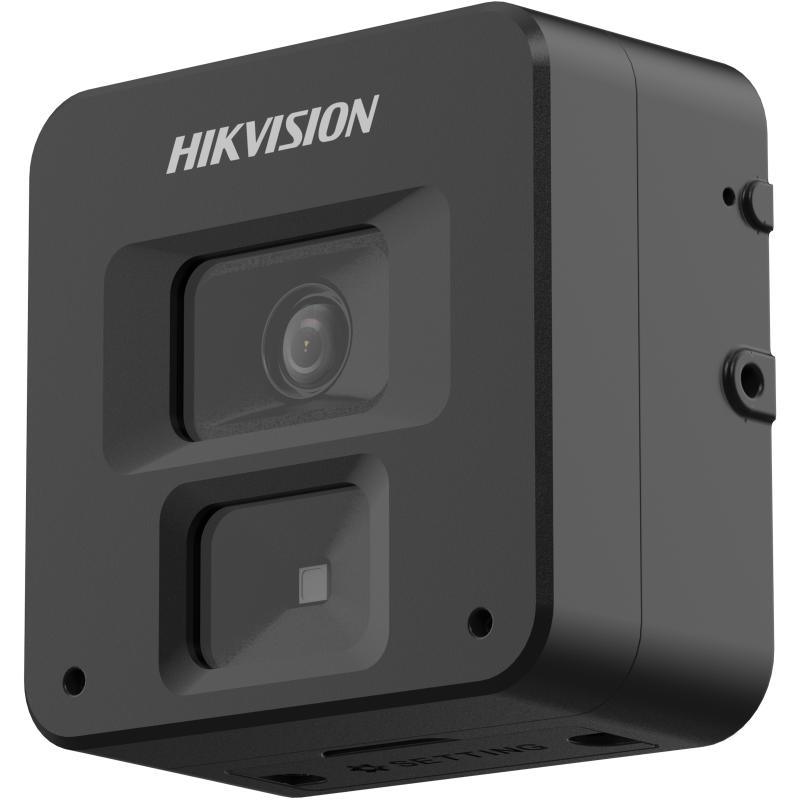

5MP Network Macro Camera

香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。

Lens
Focal Length & FOV 4 mm, horizontal FOV 79.6°, vertical FOV 63.8°, diagonal FOV 93.4°
Lens Type Fixed focal lens, 4 mm,VCM Lens
Iris Type Fixed
Aperture F2.0
Focus Manual

Video
Main Stream 50 Hz: up to 25 fps (2560 × 1920, 2560 × 1440, 1920 × 1080) 60 Hz: up to 24 fps (2560 × 1920, 2560 × 1440, 1920 × 1080)
Sub-Stream 50 Hz: up to 25 fps (1280 × 720, 704 × 576, 640 × 480) 60 Hz: up to 24 fps (1280 × 720, 704 × 480, 640 × 480)
Video Compression Main stream: H265+/H264+/H.265/H.264, Sub-stream: MJPEG/H.265/H.264
H.264 Type Baseline Profile,Main Profile,High Profile
H.265 Type Main Profile
Bit Rate Control CBR,VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream
Video Bit Rate 32 Kbps to 8 Mbps

Audio
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 48 Kbps (PCM)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 16 kHz/32 kHz
Environment Noise Filtering Yes

Network
Protocols IGMP, UPnP, RTSP, NTP, SNMP, RTP, DHCP, DDNS, FTP, SSL/TLS, IPv4, IPv6, DNS, ICMP, HTTP, HTTPS, 802.1X, QoS, TCP/IP, UDP
Simultaneous Live View Up to 8 channels
API Open Network Video Interface, ISAPI, SDK, ISUP
User/Host Up to 32 users 3 user levels: administrator, operator, and user
Network Storage NAS (NFS, SMB/CIFS),NVR
Client iVMS-4200,Hik-Connect,HCP
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2, TLS 1.3
Web Browser Plug-in required live view: IE 10, IE 11, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Safari 11+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+

Image Settings saturation,brightness,contrast,sharpness,adjustable by client software or web browser
Day/Night Switch Day,Night,Auto,Schedule
Wide Dynamic Range (WDR) 120 dB
Image Enhancement BLC,HLC,3D DNR,Defog
Privacy Mask 4 rectangular privacy masks

Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone 1 built-in microphone
Reset Key Yes

Event
Basic Event Motion detection,video tampering alarm,network disconnected,IP address conflict,illegal login,HDD full,HDD error
Linkage Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture

General
Power 12 VDC ± 25%, 0.25 A, max. 3 W,Ø5.5 mm coaxial power plug, PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.09 A to 0.06 A, max. 3.3 W
Material Main body: Aluminum Alloy
Dimension 60.4 mm × 58.9 mm × 30 mm (2.378″ × 2.319″ × 1.181″)
Package Dimension 220 mm × 150 mm × 153 mm (8.66″ × 5.905″ × 6.02″)
Approx. 260 g (0.573 lb.)
With Package Weight Approx. 485 g (1.07 lb.), T1: Approx. 565 g (1.25 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 18 languages: Traditional Chinese, English, Bulgarian, Hungarian, German, Czech, Slovak, French, Portuguese, Spanish, Russian, Japanese, Turkish, Korean, Thai, Estonian, Vietnamese, Lithuanian
General Function Heartbeat,mirror,password protection,one-key reset

Approval
EMC CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
Safety CB: IEC 62368-1: 2014, CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
