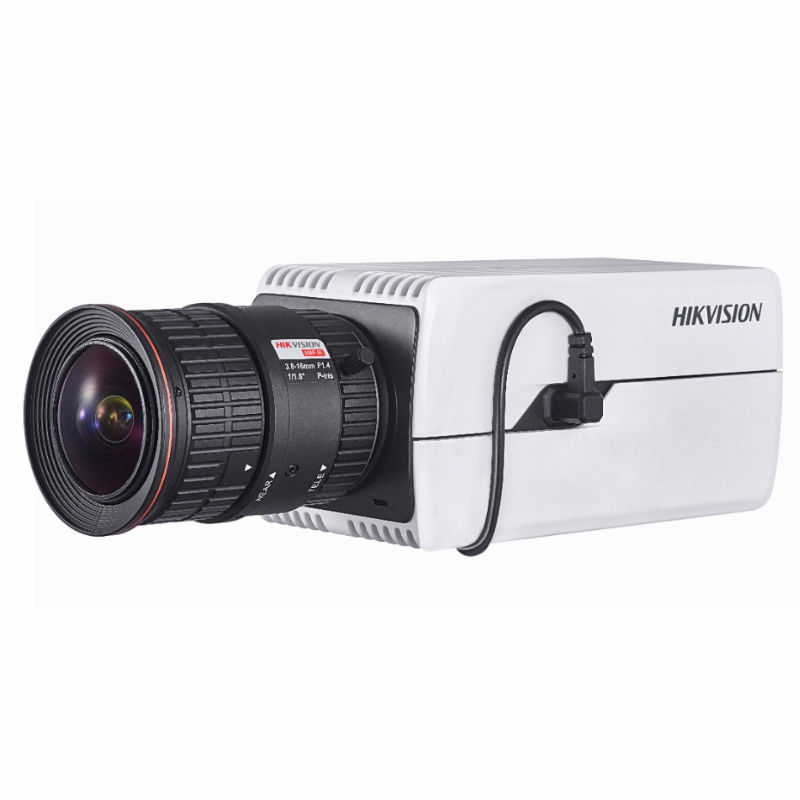

HIKVISION DS-2CD7046G0-(AP)

4 MP DeepinView Moto Varifocal Box Camera

  • High quality imaging with 4 MP resolution
  • Excellent low-light performance via DarkFighter technology
  • Clear imaging against strong back light due to LightFighter technology
  • Intelligent functions based on deep learning
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Advanced streaming technology enables smooth live view and data self-correction in poor networks
  • 5 streams and up to 5 custom streams to meet a wide variety of applications
  • 6 behavior analyses, 3 exception detection, and face detection.

描述

Camera

Image Sensor: 1/1.8ʺ Progressive Scan CMOS

Min. Illumination: Color: 0.002 Lux @ (F1.2, AGC ON); B/W: 0.0002 Lux @ (F1.2, AGC ON)

Shutter Speed: 1 s to 1/100,000 s

Slow Shutter: Yes

WDR: 140 dB

Day & Night: IR cut filter

Lens

Auto-Iris: DC drive. -P: P-iris supported

Lens Mount: CS mount

Video

Max. Resolution: 2560 × 1440

Video Stream: 5 defined streams and up to 5 custom stream

Main Stream: 50Hz: 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) ;60Hz: 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)

Sub Stream: 50Hz: 25fps (704 × 576, 640 × 480) ;60Hz: 30fps (704 × 480, 640 × 480)

Third Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fourth Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Fifth Stream: 50Hz: 25fps (704 × 576, 640 × 480) ;60Hz: 30fps (704 × 480, 640 × 480)

Custom Stream: 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) ;60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

Video Compression: Main stream: H.265+/H.265/H.264+/H.264 ;Sub stream/third stream/fourth stream/fifth stream/custom stream: H.265/H.264/MJPEG

H.264 Type: Baseline Profile/Main Profile/High Profile

H.265 Type: Main Profile

Video Bit Rate: 32 Kbps to 16 Mbps

H.264+: Main stream support

H.265+: Main stream support

Scalable Video Coding (SVC): H.264 and H.265 encoding

Audio Compression: G.711/G.722.1/G.726/MP2L2/PCM

Audio Bit Rate: 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/32Kbps(PCM)

Environment Noise Filtering: Yes

Audio Sampling Rate: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz

Smart Feature-Set

Smart Event: Line crossing detection, up to 4 lines configurable ,Intrusion detection, up to 4 regions configurable ,Region entrance detection, up to 4 regions configurable ,Region exiting detection, up to 4 regions configurable ,Unattended baggage detection, up to 4 regions configurable ,Object removal detection, up to 4 regions configurable ,Face detection: detects faces and upload images ,Scene change detection, defocus detection,

Basic Event: Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

Face Capture: Face detection performance: detects up to 30 faces at the same time ;Detectable face position: supports swing left and right from -90° to 90°,tilt up and down from -30° to 60°-

Region Of Interest: Main stream/sub stream/third stream/fourth stream/fifth stream: 4 fixed regions and dynamic face tracking for each stream–

Statistics: Counting-

Perimeter Protection: Line crossing, intrusion, region entrance, and region exiting ;Support alarm triggering by specified target types (human and vehicle) ;Filtering out false alarm caused by target types such as leaf, light, animal, and flag, etc.

Linkage Method: Trigger recording:memory card, network storage, pre-record and post-record ;Trigger captured pictures uploading: FTP, SFTP, HTTP, NAS, Email ;Trigger notification: HTTP, ISAPI, alarm output (-S), Email-

Queue Management: Detects queuing-up people number, and waiting time of each person ;Generates reports to compare the efficiency of different queuing-ups and display the changing status of one queue ;Supports raw data export for further analysis-


Image Enhancement: BLC, HLC, 3D DNR, Defog, EIS

Image Setting: Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Target Cropping: Yes

Day/Night Switch: Day/Night/Auto/Schedule/Triggered by Alarm In

Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24 bit bmp format

Network

Network Storage: microSD/SDHC/SDXC card (256 GB), local storage and NAS (NFS,SMB/CIFS), ANR ,Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

Protocols: TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

API: ONVIF (PROFILE S, PROFILE G), ISAPI, SDK

Smooth Streaming: Yes

Security: Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2

Simultaneous Live View: Up to 20 channels

User/Host: Up to 32 users. 3 user levels: administrator, operator and user

Client: iVMS-4200, Hik-Connect, Hik-Central

Web Browser: Plug-in required live view: IE8+, Chrome 41.0-44, Mozilla Firefox30.0-51, Safari8.0-11 Plug-in free live view: Chrome 45+, Mozilla Firefox52+

Interface

Communication Interface: 1 RJ45 10M/100M/1000M Ethernet port ,1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Audio: 1 input (line in), 1 output (line out), 2-core terminal block, mono sound

Alarm: 2 inputs, 2 outputs (max. 24 VDC/VAC, 1A max.)

Power Output: 12 VDC, max. 200 mA

Interface Style: Connector panel

On-Board Storage: Built-in microSD/SDHC/SDXC slot, up to 256 GB

Video Out: 1Vp-p composite output (75 Ω/CVBS), only for adjustment

Firmware Version: V5.6.0

Web Client Language: 32 languages ,English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)

General

General Function: Anti-flicker, 5 streams and up to 5 custom streams, heartbeat, mirror, privacy masks, flash log, password reset via e-mail, pixel counter

Reset: Reset via reset button on camera body, web browser and client software

Startup And Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)

Power Supply: 12 VDC is recommended, 10 to 48 VDC; reverse polarity protection; 24 VAC is recommended, 15 to 36 VAC; PoE (802.3af, class 3)

Material: Metal

Dimensions: Camera: 142.6 × 69.8 × 68 mm (5.61″ × 2.75″ × 2.68″) ,Package: 315 × 140 × 140 mm (12.4″ × 5.51″ × 5.51″)

Weight: -AP: approx. 730 g (1.61 lb.), 1020 g (2.25 lb.) with packageNon-AP: approx. 690 g (1.52 lb.), 975 g (2.15 lb.) with package

Power Consumption And Current: With extra load: 12 VDC, 1 A, max. 12 W; 24 VAC, 0.9 A, max. 12 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3, 12 W ,Without extra load: 12 VDC, 0.8 A, max. 9.6 W; 24 VAC, 0.7 A, max. 9.6 W; PoE (802.3af, 36 V to 57 V), 0.1 A to 0.3 A, class 3, 9.6 W

Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing)-

Approval

EMC: 47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015

Safety: UL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015

Chemistry: 2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
