描述
海康威視 DS-2CFS04/4G(Cold Proof) 是 4MP 太陽能 4G 防寒鏡頭，1/3 吋 CMOS，最高解像度 2560 × 1440，鏡頭可選 2.8 或 4 mm。香港防盜為安裝商及經銷商，規格以原廠為準。
DS-2CFS04/4G(Cold Proof)

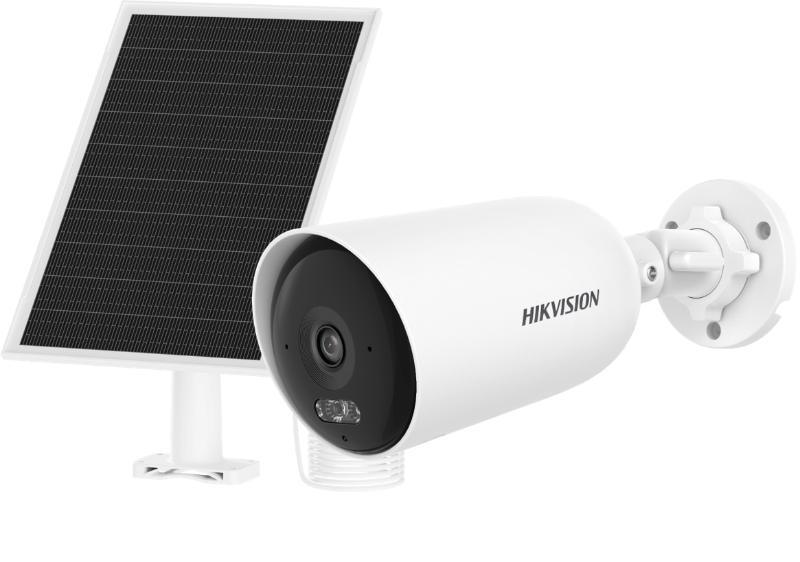

4MP 24/7 Solar 4G Cold Proof Camera
- Camera
- Image Sensor1/3″ Progressive Scan CMOS
- Max. Resolution2560 × 1440
- Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON)
- Shutter Time1/3 s to 1/100,000 s
- Day & NightIR cut filter
- Angle AdjustmentPan: 0° to 360°,tilt: 0° to 180°,rotate: 0° to 360°
- Lens
- Focal Length & FOV2.8 mm, horizontal FOV 98.5°, vertical FOV 53.1°, diagonal FOV 115.9° 4 mm, horizontal FOV 78.3°, vertical FOV 42.8°, diagonal FOV 91.2
- Lens TypeFixed focal lens, 2.8 and 4 mm optional
- ApertureF1.6
- Lens MountM12
- Iris TypeFixed
- DORI
- DORIFixed lens: 2.8 mm D: 63.4 m, O: 25.2 m, R: 12.7 m, I: 6.3 m 4 mm D: 78.0 m, O: 31 m, R: 15.6 m, I: 7.8 m
- Illuminator
- Supplement Light TypeIR,White Light
- Supplement Light RangeUp to 30 m
- IR Wavelength850 nm
- Smart Supplement LightYes
- Video
- Main Stream50 Hz: 12.5 fps (2560 x 1440, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps (2560 x 1440, 1920 × 1080, 1280 × 720)
- Video Compression Main stream: H.265
- Video Bit Rate32 Kbps to 8 Mbps
- H.265 TypeMain Profile
- Bit Rate ControlCBR,VBR
- Audio
- Audio Compression G.711ulaw
- Audio Bit Rate64 Kbps(G.711ulaw/G.711alaw)
- Audio Sampling Rate8 kHz/16 kHz
- Environment Noise FilteringYes
- Network
- Simultaneous Live ViewUp to 6 channels
- APIISAPI,SDK
- User/HostUp to 32 users 3 user levels: administrator, operator, and user
- ClientHik-Connect
- Mobile Communication
- StandardLTE-TDD,LTE-FDD
- FrequencyEU: LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41
- Uplink and Downlink Data RateCat 1, uplink: 5.1 Mbps, downlink: 10.3 Mbps
- SIM Card TypeNano SIM
- Image
- Image Settingsbrightness,contrast,white balance,saturation,sharpness
- Day/Night SwitchDay,Night,Auto,Schedule
- Image EnhancementBLC,HLC,3D DNR
- Wide Dynamic Range (WDR)Digital WDR
- Interface
- On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
- Built-in MicrophoneYes,1 built-in microphone
- Reset KeyYes
- Built-in SpeakerYes, 1 built-in speaker
- Event
- Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle))
- Linkagenotify surveillance center,trigger recording,trigger capture,audible warning,Upload to memory card
- General
- Power5 V, 2 A
- MaterialPlastic
- DimensionØ81.6 mm × 221.3 mm (Ø3.21″ × 8.71″)
- Package Dimension320 mm × 228 mm × 148 mm (12.60″ × 8.98″ × 5.83″)
- Approx. 510 g (1.12 lb.)
- With Package WeightApprox. 1560 g (3.44 lb.)
- Startup and Operating Conditions-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
- General Functionmirror,flash log
- Storage Conditions-20 °C to 25 °C (-4 °F to 77 °F). Humidity 95% or less (non-condensing)
- Battery
- Battery TypeLithium
- Capacity10000 mAh (3.7 V)
- Max. Charging Voltage8.4 V
- Battery Voltage 6 V to 8.4 V
- Operating TemperatureCharging: -10°C to 45°C (14°F to 113°F) Discharging: -20°C to 50°C (-4°F to 131°F)
- Cycle LifetimeCap(800th)≥80%
- Approval
- RFCE-RED: EN 301489-1 V2.1.1(BT or 2.4G); EN 301489-17 V3.1.1(BT or 2.4G); EN 300328 V2.1.1(BT or 2.4G); EN 62311:2008(BT or 2.4G)
- EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, EN 50121-4: 2016+A1:2019
- Safety CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
- EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
- ProtectionIP66: IEC 60529-2013
- Solar Power
- Solar Panel TypeMonocrystalline silicon solar panel
- Power Consumption8 W
- Solar Panel Dimensions & Weight263.8 mm × 171.7 mm × 18.5 mm (10.39″ × 6.76″ × 0.73″)/ 450 g (0.99 lb.)
- Working Temperature-40 °C to 85 °C (-40°F to 185°F)
