描述

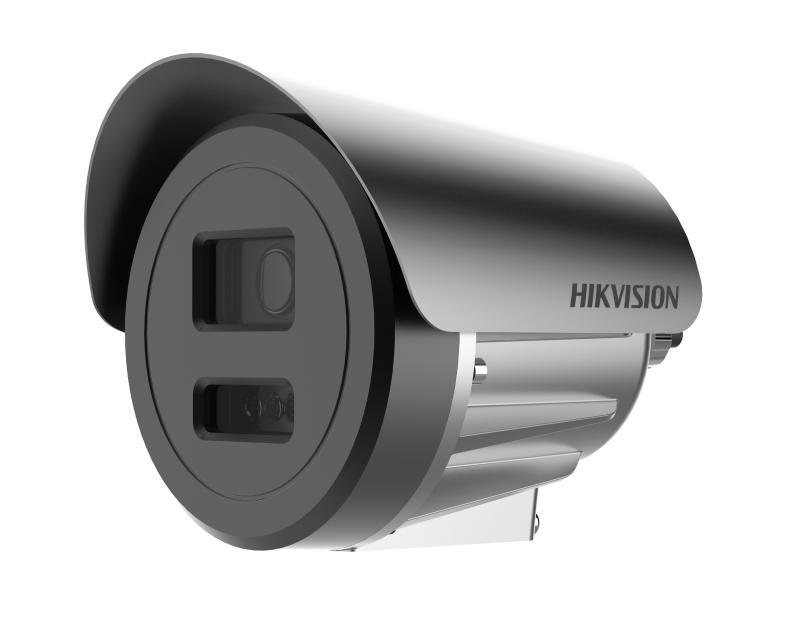

DS-2XE6086G0-LIS(ADC)

Aluminum Alloy 8MP Explosion-Proof Fixed Bullet

香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。

Lens
Focal Length & FOV2.8 mm, horizontal FOV 101.8°, vertical FOV 50.8°, diagonal FOV 124.4° 4 mm, horizontal FOV 87.6°, vertical FOV 46.0°, diagonal FOV 103.5° 6 mm, horizontal FOV 60°, vertical FOV 34.8°, diagonal FOV 67.8°
ApertureF1.6

Video
Main Stream50 Hz: 12.5 fps (3840 × 2160) 60 Hz: 12.5 fps (3840 × 2160)
Sub-Stream50 Hz: 12.5 fps (640 × 480, 640 × 360) 60 Hz: 12.5 fps (640 × 480, 640 × 360)
Third Stream50 Hz: 1 fps (1280 × 720, 640 × 360) 60 Hz: 1 fps (1280 × 720, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG Third Stream：H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)1 fixed region for main stream

Audio
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz
Environment Noise FilteringYes

Network
ProtocolsSSL/TLS, RTSP, TCP/IP, RTP, HTTP, QoS, PPPoE, ICMP, DDNS, UDP, UPnP, IGMP, DHCP, DNS, SNMP, IPv4, IPv6, FTP, HTTPS, 802.1X, NTP
Simultaneous Live ViewUp to 6 channels
APIONVIF (Profile S, Profile G),ISAPI,SDK,ISUP
User/HostUp to 32 users 3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), WSSE and digest authentication for ONVIF,basic and digest authentication for HTTP/HTTPSF, RTP/RTSP over HTTPS, security audit log, control timeout settings
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+

Image SettingsSaturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule
Wide Dynamic Range (WDR)120 dB
Image EnhancementBLC, HLC, 3D DNR
Privacy Mask4 programmable polygon privacy masks
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24 bit bmp format.

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 256 GB, *You are recommended to purchase memory card together with the product if needed. After ordering, the memory card will be installed to product during manufacturing.
Audio1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 5 VDC, 0.1 A)

Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error),alarm input and output
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection,scene change detection, audio exception detection
LinkageUpload to FTP, notify surveillance center, send email, trigger recording, trigger capture, trigger alarm output, audible warning

General
Power100 VAC to 240 VAC, 0.2 A, max. 7 W, three-core terminal block, PoE: IEEE 802.3af, Class 3, max. 7 W
MaterialAnodized ADC12
Dimension243.6 mm × 194.8 mm × 184 mm (9.6″ × 7.7″ × 7.2″)
Package Dimension430 mm × 250 mm × 275 mm (16.93″ × 9.84″ × 10.83″)
Approx. 3300 g (7.28 lb.)
With Package WeightApprox. 4400 g (9.70 lb.)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language9 languages: English, Italian, French, Portuguese, Spanish, Russian, Japanese, Korean, Thai
General FunctionHeartbeat, mirror, flash log, password reset via e-mail, pixel counter, anti-banding
Cable Length1.3 m or 5 m (4.26 ft. or 16.40 ft.)

Approval
EMCCE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015
SafetyCB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017, BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1
ProtectionIP68: IEC 60529-2013,IK10: IEC 62262:2002
Explosion-Proof ProtectionATEX: Ex II 2 G D Ex db IIC T6 Gb/Ex tb IIIC T80 °C Db IP68 IECEx: Ex db IIC T6 Gb/Ex tb IIIC T80 °C Db IP68 For explosive gas atmospheres, the maximum surface temperature is 85 °C; For flammable dust atmospheres, the maximum surface temperature is 80 °C; IIC: for explosive gas atmospheres other than mines susceptible to firedamp; For explosive gas mixture atmospheres: Zone 1, Zone 2, Zone 21, Zone 22.
