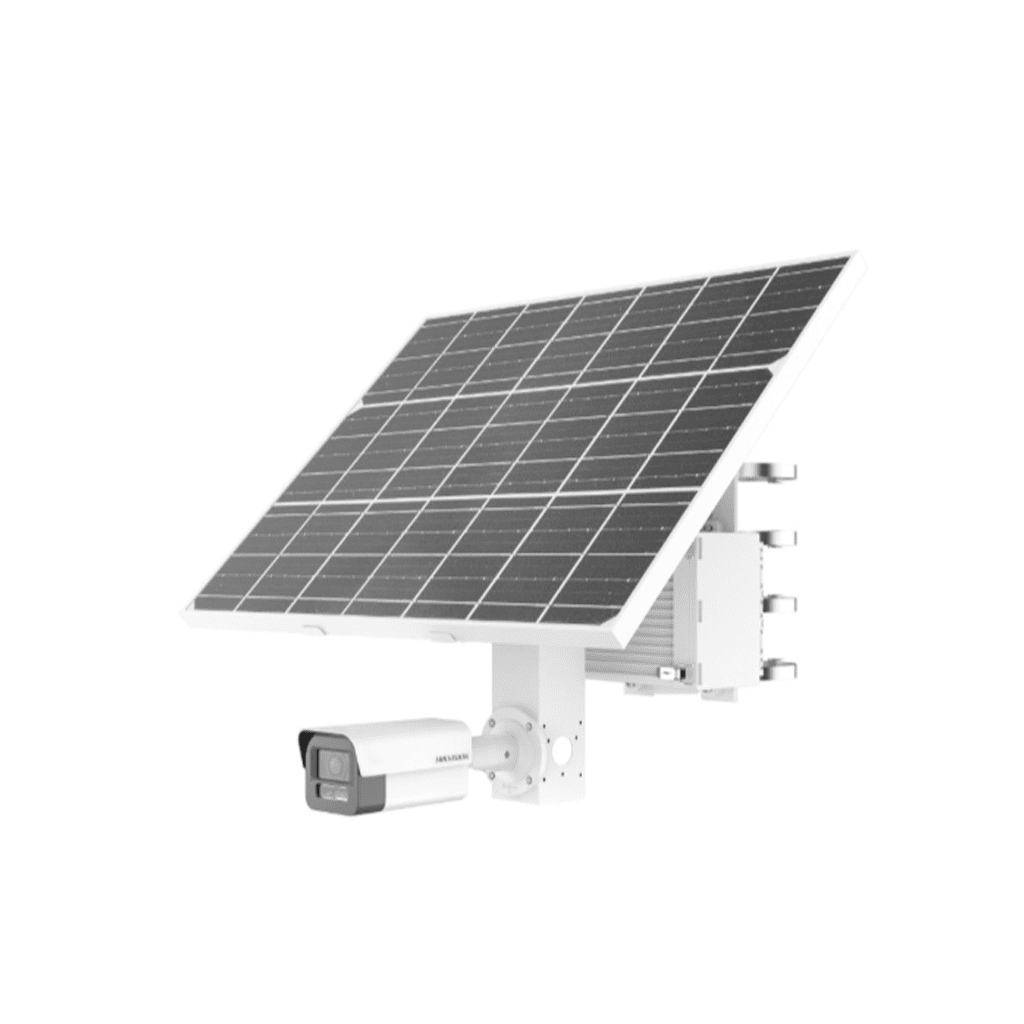

HIKVISION DS-2XS6A46G1E-LIZS/C36S80
4 MP Strobe Light and Audible Warning Solar Power 4G Network Camera Kit
Features
- 80 W photovoltaic panel, 360 Wh chargeable lithium battery
- Clear imaging against strong back light due to 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Support battery management, battery display, battery high-low temperature protection, charge-discharge protection, low-battery sleep protection and remote wakeup
- LTE-TDD/LTE-FDD/WCDMA/GSM 4G wireless network transmission, support Micro SIM card
- Active strobe light and audio alarm to warn intruders off
- Provides real-time security via built-in two-way audio
- Smart Hybrid Light: advanced technology with long range
- Water and dust resistant (IP66)
- Built-in high-capacity eMMC storage
- Supports external antenna expansion for more flexible antenna positioning and enhanced wireless signal quality
Specifications
| Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max. Resolution | 2688 × 1520 |
| Min. Illumination | Color: 0.0005 Lux @ (F1.2, AGC ON), B/W: 0 Lux with light |
| Shutter Time | 1 s to 1/100,000 s |
| Image | |
| Wide Dynamic Range (WDR) | 120 dB |
| Day/Night Switch | Day,Night,Auto,Schedule,Alarm Trigger |
| Image Enhancement | HLC,BLC,3D DNR |
| Image Parameters Switch | Yes |
| Image Settings | Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser |
| SNR | ≥ 52 dB |
| Privacy Mask | 4 programmable rectangle privacy masks |
| General | |
| Power | 12 VDC ± 10%, 1. Standby power consumption: 0.14W 2. The average power consumption of 24 hours (4G transmission is excluded): 2.96 W 3. The max. power consumption: 20 W (7 W if without 12 V load) |
| Material | Battery: Front cover: metal, Battery body: plastic Camera: Front cover: metal, body: plastic, Rracket: metal |
| Dimension | 662.11 mm × 720 mm × 579.76 mm (26.07″ × 28″ × 22.83″) (Max. size of the camera after it is completely assembled) |
| Package Dimension | 834 mm × 414 mm × 702 mm (32.9″ × 16.3″ × 27.6″) |
| Weight | Approx. 13.045 kg (28.76 lb.) |
| With Package Weight | Approx. 21.82 kg (48.10 lb.) |
| Storage Conditions | -25 °C to 60 °C (-13 °F to 140 °F). Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions | -25 °C to 60 °C (-13 °F to 140 °F). Humidity 95% or less (non-condensing) |
| General Function | Anti-banding, heartbeat, mirror, flash log, password reset via email, pixel counter |
| Flashing Light | Red and Blue Light |
