描述

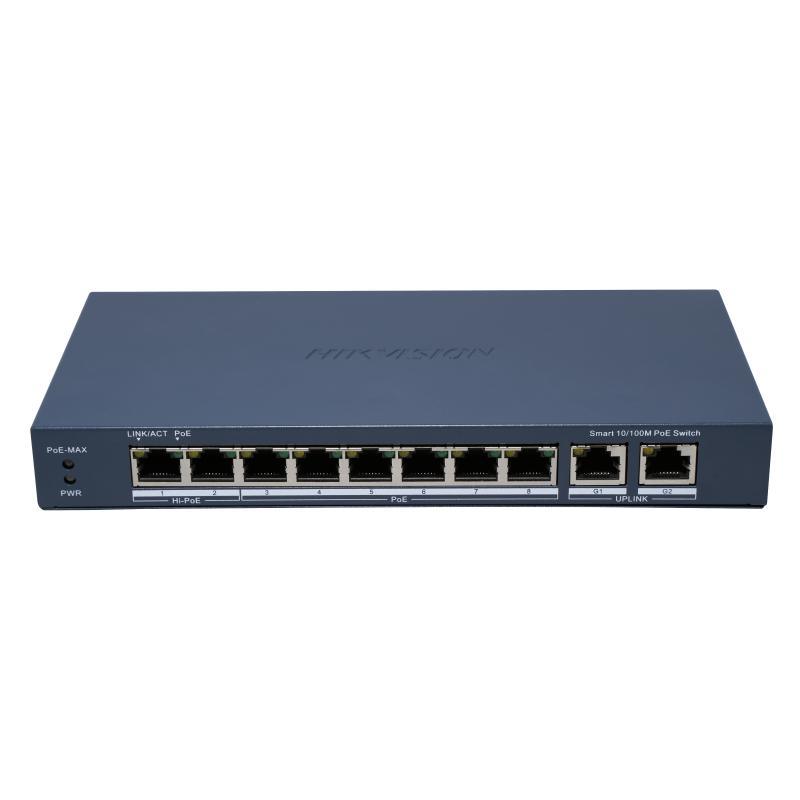

HIKVISION DS-3E1310HP-EI (B) 8 Port Fast Ethernet Smart POE Switch 是海康威視網絡交換機，多用於以 PoE 為鏡頭供電。香港防盜為安裝商及經銷商。口數及 PoE 功率以原廠規格為準。
DS-3E1310HP-EI (B)
8 Port Fast Ethernet Smart POE Switch
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- General
- ShellMetal
- Net Weight0.55 kg (1.21 lb)
- Gross Weight0.95 kg (2.1 lb)
- Dimensions (W × H × D)217.6 mm × 27.6 mm × 108.5 mm (8.57” × 1.09” × 4.27”)
- Operating Temperature0 °C to 40 °C (0 °F to 104 °F)
- Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)
- Operating Humidity5% to 95% (no condensation)
- Relative Humidity5% to 95% (no condensation)
- Power Supply54 VDC, 2.22 A
- Installation ModeDesk-Mounted,Wall-Mounted
- Max. Power Consumption120 W
- Power Consumption in Idle10 W
- Surge Protection6 kV
- Network Parameters
- MAC Address Table4 K
- Ports8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port
- Switching Capacity9.6 Gbps
- Packet Forwarding Rate7.14 Mpps
- Internal Cache2 Mbits
- Software Function
- Long RangePorts 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition.
- PoE WatchdogPorts 1 to 8: auto detect and restart the cameras that do not respond.
- HPPSupport one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device.
- Port IsolationPorts 1 to 10: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
- System MaintenanceSupport device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Support 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating.
- QoSQoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP and WRR priority scheduling modes. Support DSCP-based QoS policy.
- Loop PreventionLoop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP.
- VLANVLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN.
- DHCP SnoopingDHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default.
- PoE Power Supply
- PoE StandardPorts 1 to 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 3 to 8: IEEE 802.3af, IEEE 802.3at
- PoE Power PinPorts 1 to 2: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) Ports 3 to 8: End-span: 1/2(-), 3/6(+)
- PoE PortHi-PoE: Ports 1 to 2 PoE: Ports 3 to 8
- Max. Port PowerPorts 1 to 2: 90 W Ports 3 to 8: 30 W
- PoE Power Budget110 W
- Approval
- EMCCE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015)
- SafetyCB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017)
- ChemistryCE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)
