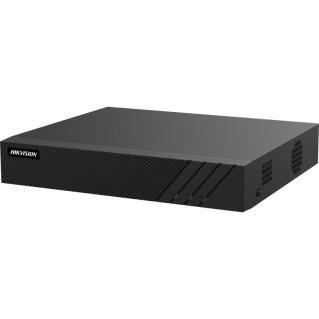

HIKVISION DS-7616NI-Q1(E) 16-ch 1U Q Series NVR

Video And Audio

• IP Video Input16-ch
• Incoming Bandwidth160 Mbps
• Outgoing Bandwidth80 Mbps
• Video Output ModeHDMI/VGA simultaneous output
• HDMI Output1-ch, 4K (4096 × 2160)/30Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/30Hz, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080p/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1280×720 /60Hz
• Audio Output1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 k Ω) Recording

Decoding

• Decoding FormatH.265+,H.265,H.264+,H.264
• Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
• Synchronous playback16-ch
• Decoding CapabilityAI&4K Off: 8-ch@1080p(30fps) AI/4K On: 6-ch@1080p(30fps) *: The length or width of camera resolution (each track) cannot exceed 4096 pixels.
• Stream TypeVideo, Video & Audio
• Audio CompressionG.711ulaw/G.711alaw/G.722/G.726

Network

• Network Interface1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
• Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
• Remote Connection32

Auxiliary Interface

• SATA1 SATA interface
• CapacityUp to 8 TB capacity for each disk
• USB Interface2 × USB 2.0
• Alarm In/OutNA

General

• Power Supply12 VDC or 18W
• Consumption≤ 10 W (without HDD)
• Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
• Working Humidity10% to 90%
• Dimension (W × D × H)263× 223 × 48 mm (10.34″ × 8.76″ × 1.9″)
• Weight≤ 1.5 kg (without HDD, 3.3 lb.)

Certification

• CE55032/55035/61000 -3-2/61000-3-3/50130 -4
