描述
海康威視 DS-7732NXI-K4(E) 是 32 路 1.5U K 系列 AcuSense 4K 網絡錄影機，接收頻寬 256 Mbps，支援 4 路 IP 喇叭。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、錄影機及硬碟容量。

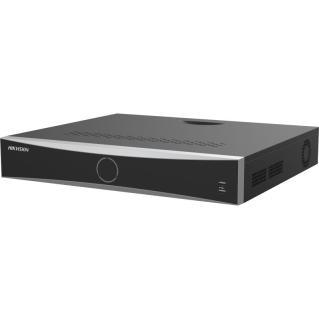

DS-7732NXI-K4(E)
32-ch 1.5U K Series AcuSense 4K NVR
Specification
Video And Audio
- IP Video Input32-ch
- Incoming Bandwidth256 Mbps
- Outgoing Bandwidth160 Mbps
- IP Speaker Input4-ch
- Video Output ModeHDMI/VGA independent output
- HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output1-ch, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Audio Output1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input )
Decoding
- Decoding FormatH.265, H.265+, H.264, H264+
- Recording Resolution16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/UXGA/720P/VGA/4CIF/DCIF/2CIF/CIF/QCIF *: 16 MP is only available for channel 1. Synchronous 16-ch Playback
- Decoding CapabilityAI on: 2-channel 12 MP@30 fps, 4-channel 8 MP@30 fps, 5-channel 6 MP@30 fps, 8-channe l 4 MP@30 fps, 10-channel 3 MP@30fps, 16-channel 2 MP@30fps AI off: 3-channel 12 MP@30 fps, 5-channel 8 MP@30 fps, 6-channel 6 MP@30 fps, 10-channel 4 MP@30 fps, 13-chann el 3 MP@30fps, 20-channel 2 MP@30fps
- Stream TypeVideo,
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
- Remote Connection128 API ONVIF (profile S/G); SDK; ISAPI Compatible Browser IE 11, Chrome 91, Firefox 88, Safari 12, Edge 91,or above version
Auxiliary Interface
- SATA4 SATA interfaces
- CapacityUp to 16 TB capacity for each HDD Serial Interface 2 RS-485 (half -duplex), 1 RS-232 eSATA
- USB InterfaceFront panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 Ctrl 12V DC 12V Support General GUI Language English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnames e, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek,
General
- Power Supply100 to 240 VAC, 50 to 60Hz
- Consumption≤ 50 W (without HDD)
- Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
- Working Humidity10 to 90 %
- Dimension (W × D × H)440 × 391 × 72 mm (17.32 × 15.39 × 2.82 inch)
- Weight≤ 4kg (without HDD, 9 lb.)
Certification
- Obtained CertificationCE,CB,REACH,WEEE,UKCA,RCM,IC Function
- CEEN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 55035: 2017
