描述
海康威視 DS-9664NXI-I16/VPro 是 64 路 I/VPro 系列網絡錄影機，支援 AcuSeek 以文字搜尋錄影，接收頻寬 384 Mbps，設兩組 HDMI 及 VGA 輸出。香港防盜為安裝商及經銷商，規格以原廠為準。
相關方案：海康威視閉路電視安裝、錄影機及硬碟容量。

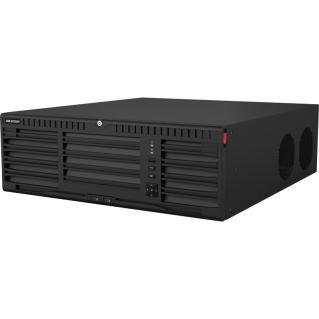

DS-9664NXI-I16/VPro
I/VPro Series NVR with AcuSeek
Specification
Video And Audio
- IP Video Input64-ch
- Incoming Bandwidth384 Mbps
- Outgoing Bandwidth256 Mbps
- Video Output ModeHDMI1/VGA1 simultaneous output, HDMI2/VGA2 simultaneous output
- HDMI 1 Output4K（3840×2160 ）/30Hz，2K（2560×1440 ）/60Hz，1080P（1920×1080 ）/60Hz，720P （1280×720 ）/60Hz HDMI 2 Output 1080P （1920×1080 ）/60Hz，720P （1280×720 ）/60Hz
- CVBS OutputNA
- Audio Output2-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ)
Decoding
- Decoding FormatH.265+, H.265, H.264+, H.264
- Recording Resolution32 MP/24 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF *: Support resolution width/height less than 8192 pixels, total not exceeding 32MP. *: The NVR supports up to 4-ch of >12MP IP video input.
- Synchronous playback16-ch
- Decoding CapabilityEnable AI by NVR: 20-ch@1080p (30 fps) Disable AI by NVR: 32-ch@1080p (30 fps)
- Stream TypeVideo, Video & Audio
- Audio CompressionG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2 L2/PCM Dual -Stream Recording Support
Network
- Network Interface2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
- Network ProtocolTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS, ONVIF, OTAP API ONVIF (profile S/G); SDK; ISAPI Compatible Browser IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version RAID RAID Type RAID0, RAID1, RAID5, RAID6, RAID10 The RAID function and AI functions cannot be enabled simultaneously.
- Remote Connection128
Auxiliary Interface
- SATA16 SATA interfaces, Hot swap. Serial Interface 1 RS-232, 1 RS -485 (full -duplex)
- CapacityUp to 20 TB capacity for each disk eSATA 1 eSATA interface
- USB InterfaceFront panel: 2× USB 2.0; Rear panel: 2 × USB 3.0 Ctrl 12V Controllable 12 VDC, 1 A power output for external alarm device; The power will be turned on when the alarm output is triggered. *: The Ctrl 12V power is controlled by alarm out put 9. DC 12V 12 VDC, 1 A power output
- Alarm In/Out16/9
General
- Power Supply100 to 240 VAC, 50 to 60 Hz
- Consumption≤ 50 W (without HDD)
- Working Temperature-10 ° C to 55 ° C (14 ° F to 131 ° F)
- Working Humidity10% to 90% Chassis 3U chassis
- Dimension (W × D × H)442 x 498 x 146 mm（17.40" x 19.59" x 5.75" ）
- Weight≤ 12.5 kg (without HDD, 27.6 lb.)
Certification
- CECE, CB, REACH, WEEE, UKCA, RCM,IC,LOA,KC CE EN 55032, EN 61000-3-2, EN 61000-3-3, EN 55035, EN 50130 -4 Typical Application Typical Application
