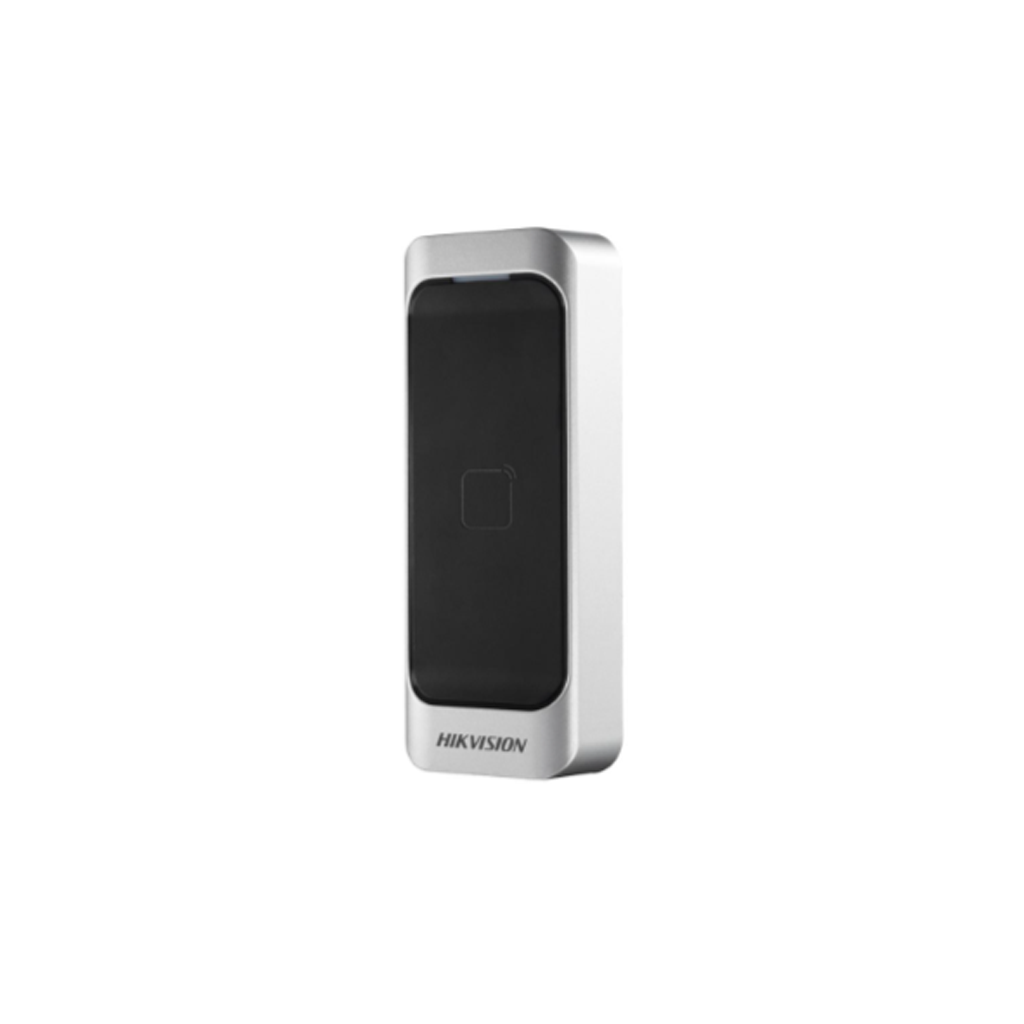

HIKVISION DS-K1107AE
Card Reader
Features
Equipped with the 32-bit high-speed processor
RS-485 and Wiegand (W26/W34) protocol, and OSDP protocol
Build-in EM card reading module (Frequency: 125KHz)
Supports tampering alarm
Built-in buzzer for identifying the reading status
Online upgrade function
Watchdog design for repairing itself in case that exception occurs, to ensure the long service life of the reader
Specification
| Interface | |
| TAMPER | Support |
| RS-485 | Support |
| Wiegand | 1 (set via DIP switch) |
| Authentication | |
| Card reading frequency | 125 KHz |
| General | |
| Power supply | 12 VDC |
| Power consumption | ≤ 2 W |
| Working temperature | -20 °C to 65 °C (-4 °F to 149 °F) |
| Working humidity | 10% to 90% (no condensing) |
| Dimensions | 115 mm × 44 mm × 22 mm (4.53” × 1.73” × 0.87”) |
| Installation | Wall mounting with screws; Do not support gang box |
| Weight | Gross weight: 0.24 kg (0.53 lb) Net weight: 0.13 kg (0.29 lb) |
| Buzzer | Support |
