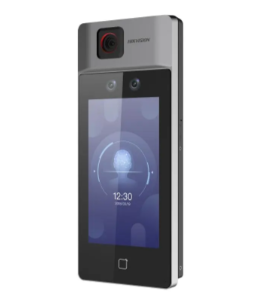

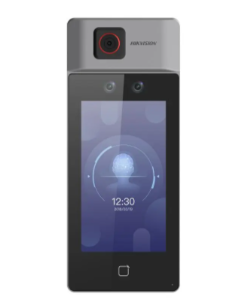

Ultra Face Recognition Terminals
- Temperature measuring range: 30 °C to 45 °C (86 °F to 113 °F), accuracy: 0.1 ° C, deviation: ± 0.5 °C
- Recognition distance: 0.3 to 2 m
- Face mask detection
- Displays temperature measurement results on the authentication page
- 7-inch LCD touch screen,2 Mega pixel wide-angle lens
- Built-in Mifare card reading module
- Face recognition duration ＜ 0.2 s/User
- face recognition accuracy rate ≥ 99%
- 50,000 face capacity, 50,000 card capacity, and 100,000 event capacity
Specification
System
- Operating System : Linux
Temperature Measurement
- Temperature Range : 30 °C to 45 °C (86 °F to 113 °F)
- Sensor : Vanadium Oxide uncooled sensor
- Resolution : 120 × 160
- Frame Rate : 25 fps
- Measurement Accuracy : 0.1 °C
- Measurement Deviation : ± 0.5 °C, without black body calibration
- Measuring Distance : 0.3 to 2 m
Display
- Screen Size : 7-inch
- Operation Method : Touch screen
Video
- Lens : Dual-lens
- Resolution : 2 MP
- FOV : HFOV= 46°；VFOV=87°
Network
- Wired Network : Support, 10/100/1000 Mbps self-adaptive
Interface
- Network Interface : 1
- Lock Contro : l1
- Exit Button : 1
- Door Contact Input : 1
- Alarm Inpu : t2
- Alarm Output : 1
- TAMPER : 1
- RS-485 : 1
- Wiegand : 1
- USB : 2
Capacity
- Face Capacity : 50000
- Card Capacity : 50000
- Event Capacity : 100000
General
- Power Supply : 12 VDC/2 A
- Working Temperature
0 °C to 50 °C (32 °F to 122 °F)
For temperature measurement: 10 °C to 35 °C (50 °F to 95 °F)
- Working Humidity : 10 to 90% (No condensing)
- Application Environment : Indoor and windless environment use only
Function
- Face Anti-Spoofing : Support
