描述
HIKVISION DS-K1T981M 是海康威視人面門禁終端，多數用於寫字樓大堂、廠房閘口或內門。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及私隱告示；規格以下方原廠資料為準。

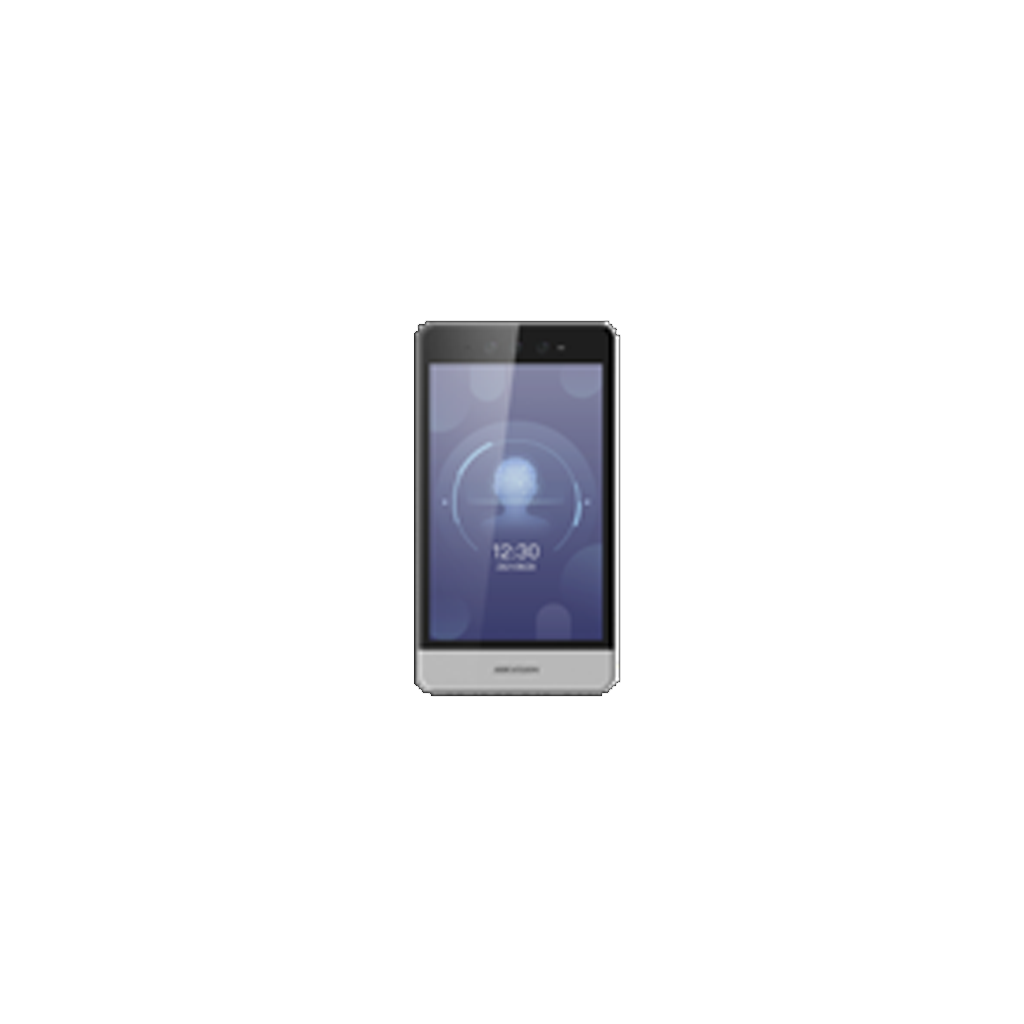

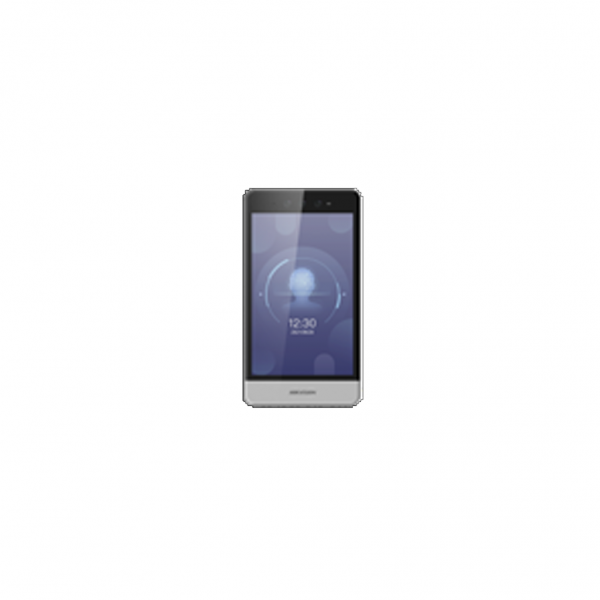

HIKVISION DS-K1T981M
Iris & Face Recognition Terminal
Specification
| Power Supply | 12 VDC, 3 A |
| Processor | 32 Bit |
| Storage | Iris: 10,000 Card: 100,000 Face: 100,000 Event: 150,000 |
| Card Reading Mode | M1 card |
| Communication Mode | ISUP 5.0, Wiegand, RS-485, TCP/IP, Wi-Fi |
| LCD Screen | 8-inch LCD capacitive touch screen Resolution: 1280 × 800 |
| Camera | 5 MP camera for iris recognition, 2 MP dual-lens camera, with IR supplement light, WDR |
| Face Authentication Duration | Face: 1:N < 0.2 s Iris: < 1 s |
| Face mask detection | Support |
| Fingerprint Capacity | 5,000 (DS-K1T981MF only) |
| Input Interface | Network × 1, RS-485 × 1, Wiegand × 1, USB × 1, IO input × 2, door contact × 1, exit button ×1, tamper × 1 |
| Output Interface | Lock × 1, Alarm Output × 1 |
| Working Temperature | -30 °C to 60 °C (-22 °F to 140 °F) |
| Protection Level | IP65 (It is recommemded using the device indoors for iris recognition) |
| Working Humidity | 10 % to 90 % (No condensing) |
| Dimension | 126 mm × 232 mm × 27 mm (5.0″ × 9.1″ × 1.1″) |
