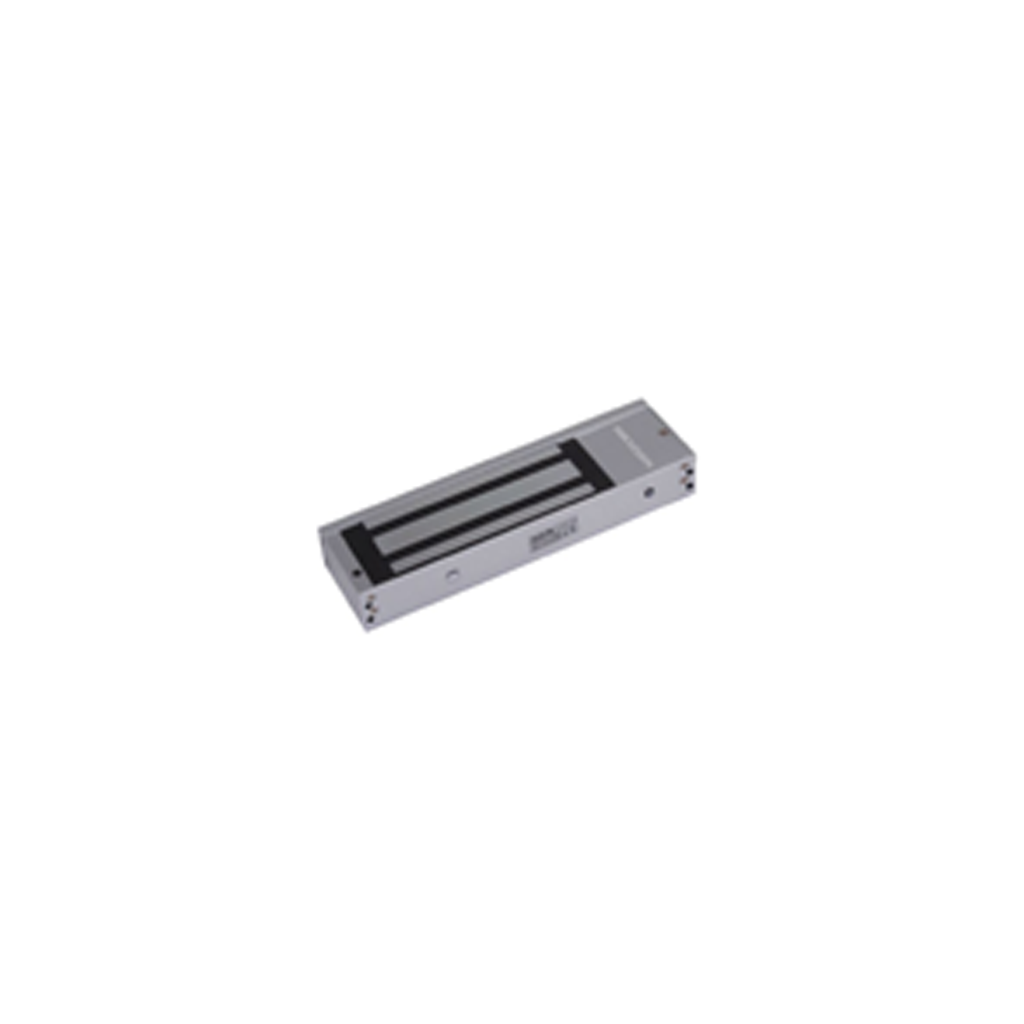

HIKVISION DS-K4H450S
Single-door Magnetic Lock
Specification
| Maximum Thrust | 500 kg Linear Thrust |
| Secure | Power Off for Unlocking |
| Working Voltage | 12 VDC – 24 VDC |
| Working Current | 12 V, 420 mA 24 V, 210 mA |
| Dimension Of Body | 265 × 71.8 × 38.8 mm (10.43″ × 2.83″ × 1.53″) |
| Dimension Of Armature Plate | 185 × 60 × 13 mm (7.28″ × 2.36″ × 0.51″) |
| Lock Body / Material | Eco-friendly Zinc Electroplating Operated |
| Shell / Strike | Hard Anodizing Electroplating Operated |
| Armature Plate | Eco-friendly Zinc Electroplating Operated |
| LED Indicator | Red (Door is Unlocked) Green (Door is Locked) |
| Suitable Doors | Wooden Door, Glass Door, Metal Door, Fireproof Door |
| Signal Output | Dry Contact Signal Output; Support Maximum Power Rate of 3A, NO Output While Locking and NC Output While Unlocking |
| Working Humidity | 0 to 95 % (relative humidity) |
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Weight | 4.5 kg (9.9 lb) |
