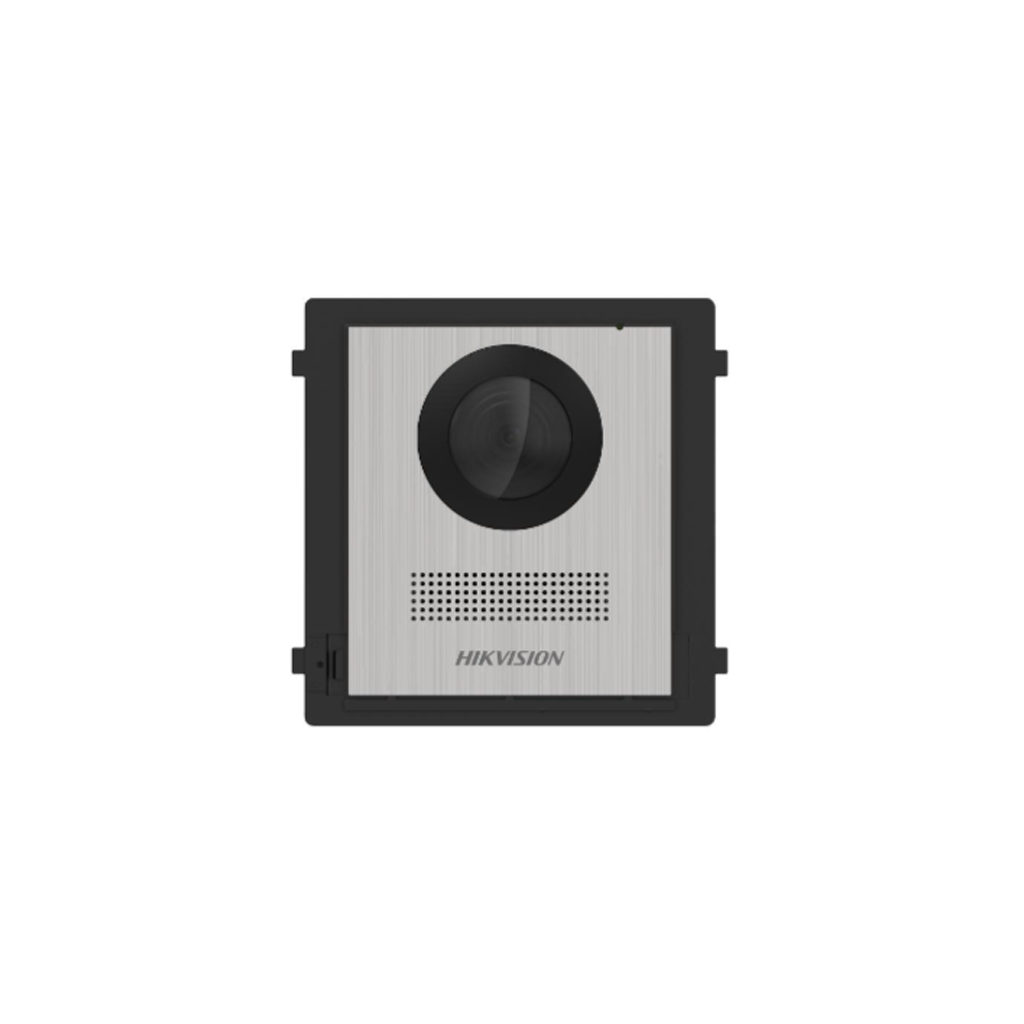

HIKVISION DS-KD8003Y-IME2/NS
Two Wire Main Unit
Features
2-Wire main unit of modular door station
2 MP fisheye Camera with IR Supplement
Two-lock control
IP65 protection level
Convenient configuration via Web remotely
Directly provide 12 V, 500 mA power output for one electronic lock without additional power supply
Stainless Steel high quality material
Specifications
System parameters | |
Operation system | Embedded Linux operation system |
ROM | 32 MB |
RAM | 256 MB |
Processor | Embedded Processor |
Video parameters | |
Lens | 1 |
Resolution | 2 MP |
FOV | Horizontal: 146°, Vertical: 82° |
Wide dynamic range (WDR) | Support |
Supplement light | IR light, up to 3 m |
Video compression standard | H.264 |
Audio parameters | |
Audio input | 1 Built-in omnidirectional microphone |
Audio compression standard | G.711 U, G.711 A |
Audio output | 1 built-in loudspeaker |
Audio compression bitrate | 64 Kbps |
Audio quality | Noise suppression and echo cancellation |
Volume adjustment | Adjustable |
Capacity | |
User capacity | 2000 |
Linked indoor station capacity | 500 |
Sub door station capacity | 16 |
Device interfaces | |
Alarm input | 4 (2 exit butttons and 2 door contacts by default) |
TAMPER | 1 |
Exit button | 2 (2 for lock control) |
RS-485 | 1 (1 for Hikvision’s sub module communication) |
Lock control | 2 relays, Max. to 30 VDC, 2 A |
Door contact input | 2 |
General | |
Installation | Surface mounting, flush mounting |
Weight | Net weight: 0.425 kg Gross weight: 0.600 kg |
Protective level | IP65 |
Working temperature | -40 °C to 60 °C (-40 °F to 140 °F) |
Dimension (W × H × D) | 100 mm × 98 mm × 42 mm |
Power supply | Powered by KAD704Y or KAD706Y series distributor |
Application environment | Outdoor |
Power consumption | ≤ 4 W |
