描述

HIKVISION DS-KDM9633-FKP 是海康威視模組化對講門口機，大堂可按顯示、按鍵或讀卡模組組合。香港防盜為安裝商及經銷商。框及模組要以原廠規格為準。

相關方案：視像對講系統、門禁系統、辦公室方案。選型可先參閱以上方案頁；原廠規格見下方。

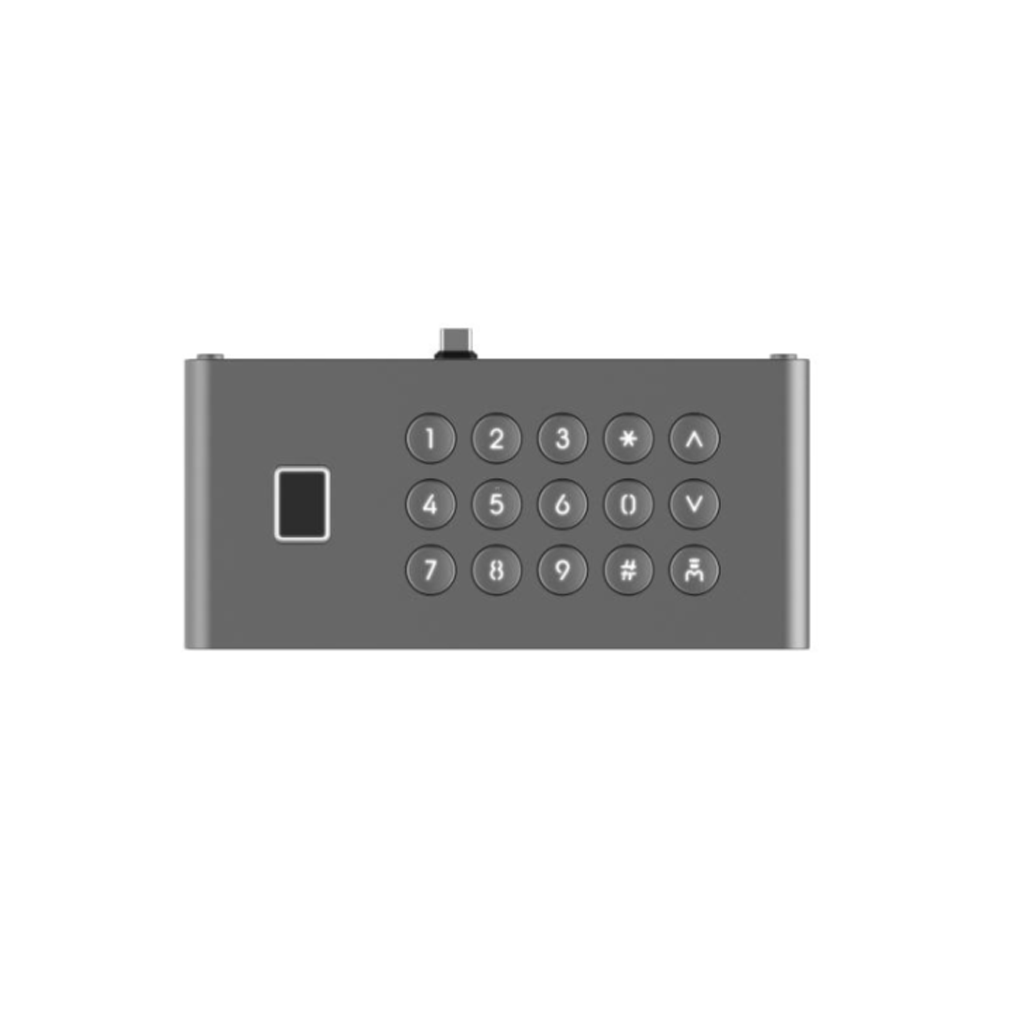

HIKVISION DS-KDM9633-FKP

Sub Module

Features

 Keypad & Fingerprint module for KD9633 series door station
 5000 high fingerprints capacity
 Backlight compensation behind the keypad
 IP65 & IK07 high protection level
 Easy to use and extend

Specifications

Capacity
Fingerprint capacity	5000
Device interfaces
USB	1 USB type-C, only connect to KD9633
General
Button	15 physical buttons
Installation	Surface mounting and flush mounting
Weight	Net weight: 0.335 kg Gross weight: 1.631 kg
Protective level	IP65 and IK07
Working temperature	-30 °C to 60 °C (-22 °F to 140 °F)
Working humidity	10% to 90% (no-condensing)
Dimension (W × H × D)	74 mm × 159.2 mm × 29.2 mm (2.9″ × 6.3″ × 1.1″)
Power supply	5 VDC, 0.5 A
Application environment	Outdoor
Material	Aluminum alloy and plastic
