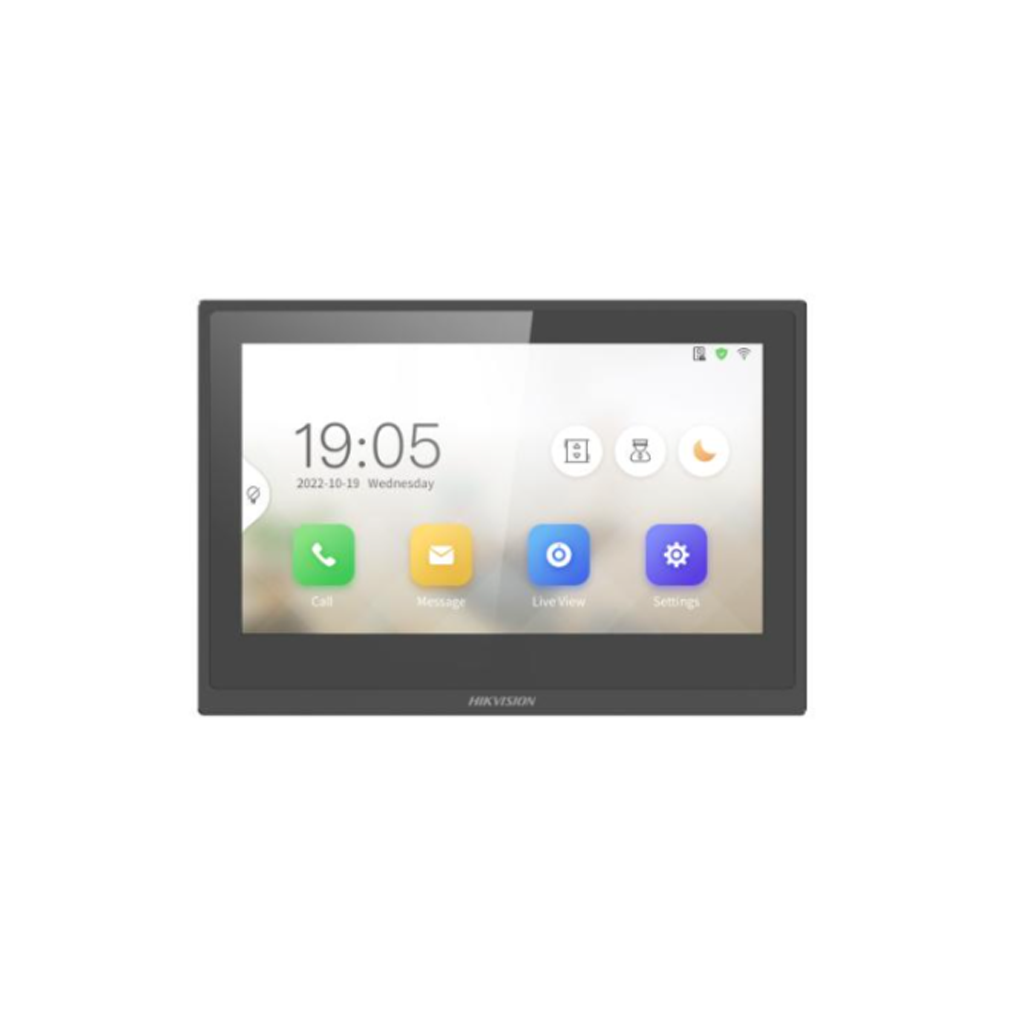

HIKVISION DS-KH6351-WTE1
Indoor Station with Metal Frame
Features
7-inch TFT touch screen with 1024 × 600 resolution
Convenient Hik-Connect APP Mobile Control
Receive calls, open the door and live view remotely
Easy to use without PC
Easy wizard for quick set up
Configure the whole system on one touch screen
Live view of the door station and cameras in public areas
Support voice messages when no response from the indoor station
Receive alarms by linkage with a alarm system and notify the center to handle in time
Elevator access control
Specifications
| System parameters | |
| Operation system | Linux |
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embeded high performance processor |
| Display parameters | |
| Screen size | 7-inch |
| Operation method | Capacitive touch screen |
| Type | Colorful TFT |
| Resolution | 1024 × 600 |
| Audio parameters | |
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711U, G.711A |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbpsv |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
| Capacity | |
| Message capacity | 200 captured pictures (with TF card); 200 alarm records 2 MB RAM (without TF card) reserved for events |
| Linked network camera capacity | 16 |
| Linked indoor extensions capacity | 16 |
| Linked doorphone capacity | 17 |
| Network parameters | |
| Network protocol | TCP/IP, SIP, RTSP |
| Wi-Fi | 2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Device interfaces | |
| Alarm input | 8 |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| RS-485 | 1 (reserved) |
| TF card | Support TF card, up to 128 G |
| Alarm output | 2 relays (30 VDC, 2A) |
| Lock control | 2 relays, Max. 30 VDC 0.3 A |
| General | |
| Installation | Surface mounting |
| Weight | Net weight: 340 g (0.7 lb) Gross weight: 600 g (1.3 lb) |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (no-condensing) |
| Dimension (W × H × D) | 180 mm × 123 mm × 21 mm (7″ × 4.8″ × 0.83″) |
| Application environment | Indoor |
| Power consumption | ≤ 5 W |
| Material | Aluminum alloy and ABS plastic |
