描述

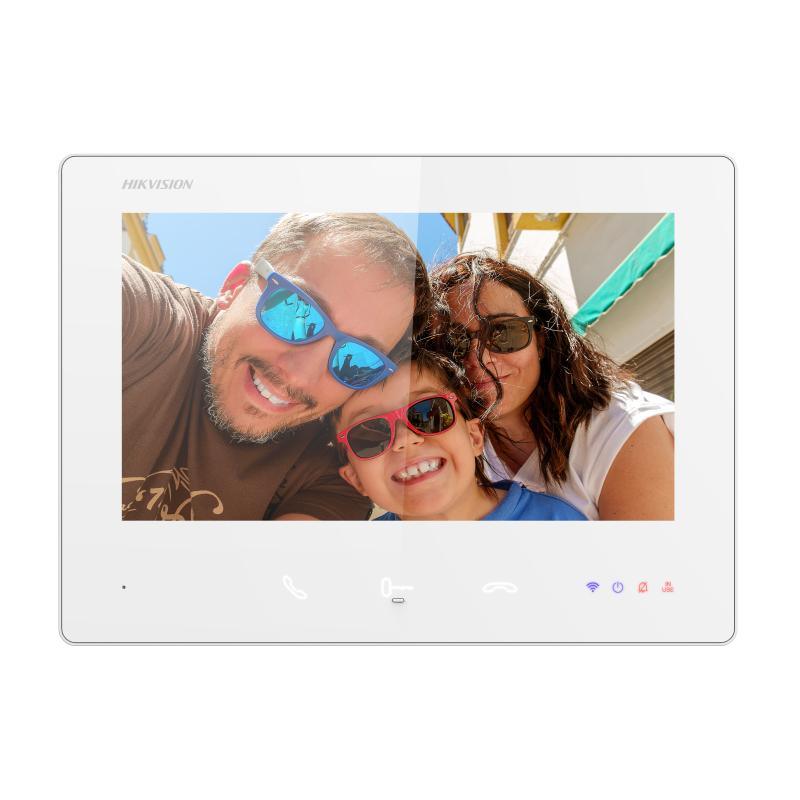

HIKVISION DS-KH7300EY-WTPE2/White 2-wire HD DIY indoor station 是海康威視視像對講門口機，用於村屋、唐樓鐵閘或屋苑單位門口。香港防盜為安裝商及經銷商。須現場測試安裝高度、光線及開門輸出；規格以下方原廠資料為準。
DS-KH7300EY-WTPE2/White
2-wire HD DIY indoor station
香港防盜為安裝商及經銷商。規格以原廠 datasheet 為準。
- System parameters
- Operating systemEmbedded Linux operation system
- ROM32 MB
- RAM128 MB
- CPUEmbedded processor
- Display parameters
- Screen size7-inch
- Operation methodCapacitive touch screen
- TypeColorful TFT screen
- Resolution1024 × 600
- Video parameters
- Lens/
- FOV/
- WDR/
- Resolution/
- Focal length/
- Audio parameters
- Audio compression standardG.711 U G.711 A
- Audio input1 Built-in omnidirectional microphone
- Audio output1 Built-in loudspeaker
- Audio compression bitrate64 Kps
- Audio qualityNoise suppression and echo cancellation
- Volume adjustmentAdjustable
- Capacity
- Event capacity200 captured pictures (with TF card)
- Linked indoor extensions capacity3
- Network parameters
- Communication protocolTCP/IP, RTSP
- Wi-Fi standard2.4 GHz, IEEE802.11b, IEEE802.11g, IEEE802.11n
- 3G/4G standard/
- Zigbee/
- Device interfaces
- Alarm input1
- TAMPER/
- RS-485/
- USB/
- TF cardMax to 128 G, SD 2.0 or lower version
- Alarm output/
- DIP switch2 decimal DIP switch and 1 binary DIP switch
- Power supply input24VDC 2.5A
- Relay1, Max. 30VDC 1A
- Two-wire IP interface4, 1 for indoor station power in, 1 for indoor station power out, 1 for outdoor station power out, 1 for outdoor station out
- General
- Button 3 Touch buttons (Answer, Unlock, Hang up)+1 Physical button（Reset）
- InstallationSurface mounting
- Indicator4（Wifi、Power、Mute、In use）
- Protective level/
- Working temperature-10 °C to 50 °C (14 °F to 122 °F)
- Working humidity10% to 90% (no-condensing)
- Dimensions190.2 mm × 138.2 mm × 20 mm (7.5″ × 5.4″ × 0.8″)
- Battery/
- Power supply24 VDC, 2.5 A
- Application environmentIndoor
- Power consumption≤ 6 W
- LanguageEnglish, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch , Spanish, Romanian, Estonian, Croatian, Slovenian, Serbian, Ukrainian, Portuguese
