描述

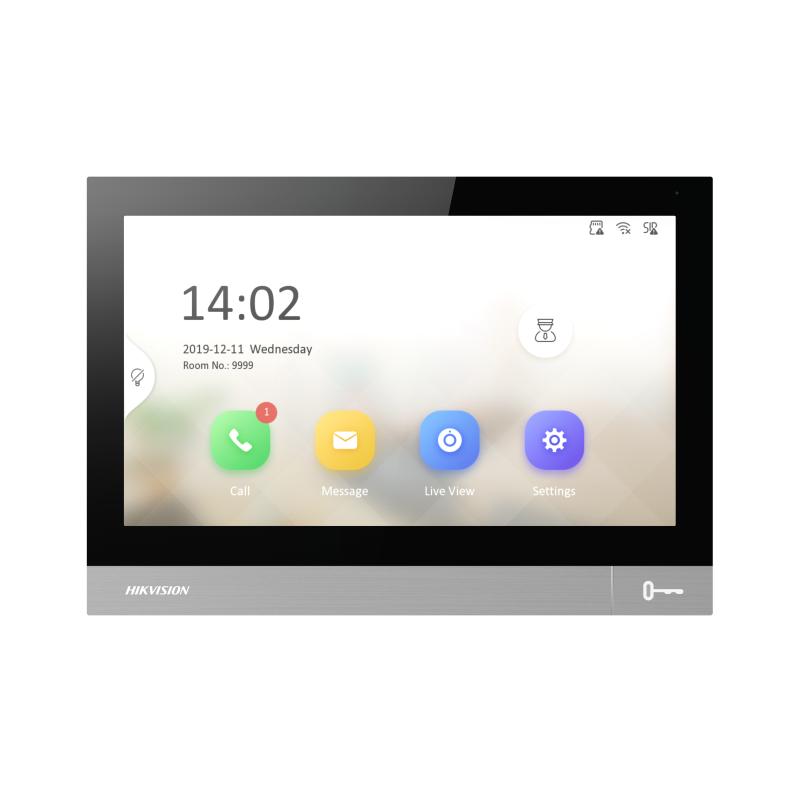

DS-KH8560-WTE1
IP Indoor Station
DS-KH8560-WTE1 屬海康威視視像對講產品。傑成系統有限公司（香港防盜）為海康威視產品安裝商及經銷商，可提供供應、安裝、調試、保養及維修。方案可參考視像對講系統。規格以原廠資料為準。
規格
System parameters
| Operation system | Embedded Linux operation system |
|---|---|
| ROM | 32 MB |
| RAM | 128 MB |
| Processor | Embedded high performance processor |
Display parameters
| Screen size | 10-inch colorful IPS screen |
|---|---|
| Operation method | Capacitive touch screen |
| Type | Colorful IPS screen |
| Resolution | 1024 × 600 |
Video parameters
| Lens | / |
|---|---|
| Resolution | / |
| FOV | / |
| Wide dynamic range (WDR) | / |
| Video compression standard | / |
| Focal length | / |
Audio parameters
| Audio input | 1 built-in omnidirectional microphone |
|---|---|
| Audio compression standard | G.711u, G.711a, Opus, AAC-LD, AAC-LC, G.726, G.722.1 |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
Capacity
| Message capacity | TF card inserted: 200 captured pictures, 200 alarm records Without TF card: 2 MB RAM for picture storage; The storage number is decided by the picture size, 200 alarm records |
|---|---|
| Notice capacity | 200 |
| Linked network camera capacity | 16 |
| Linked indoor extensions capacity | 16 |
| Linked doorphone capacity | 17 |
Network parameters
| Network protocol | TCP/IP, RTSP, SIP, IPv6, ONVIF |
|---|---|
| Wi-Fi | WiFi 802.11b/g/n |
| Bluetooth | Reserved |
| 3G/4G | / |
| Zigbee | / |
Device interfaces
| Alarm input | 8 |
|---|---|
| Network interface | 1 RJ-45 10/100Mbps self-adaptive |
| TAMPER | / |
| RS-485 | 1 |
| USB | / |
| TF card | Support TF card, up to 128 GB |
| Alarm output | / |
| Power supply output | Max. 12VDC 0.2 A (Only when powered by PoE) |
| Debugging port | 1 |
| Relay | 2 relays, Max. 30VDC 0.3A |
General
| Button | 1 physical button(s) |
|---|---|
| Installation | Surface mounting |
| Indicator | / |
| Protective level | / |
| Working temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working humidity | 10% to 90% (non-condensing) |
| Dimension (W × H × D) | 272.7 mm × 177.1 mm × 21.62 mm (9.95" × 6.97" × 0.85") |
| Battery | / |
| Application environment | Indoor |
| Power supply | IEEE 802.3af, Standard PoE,12 VDC |
| Language | English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |
| Power consumption | ≤ 12 W |
| Material | Plastic casing |
