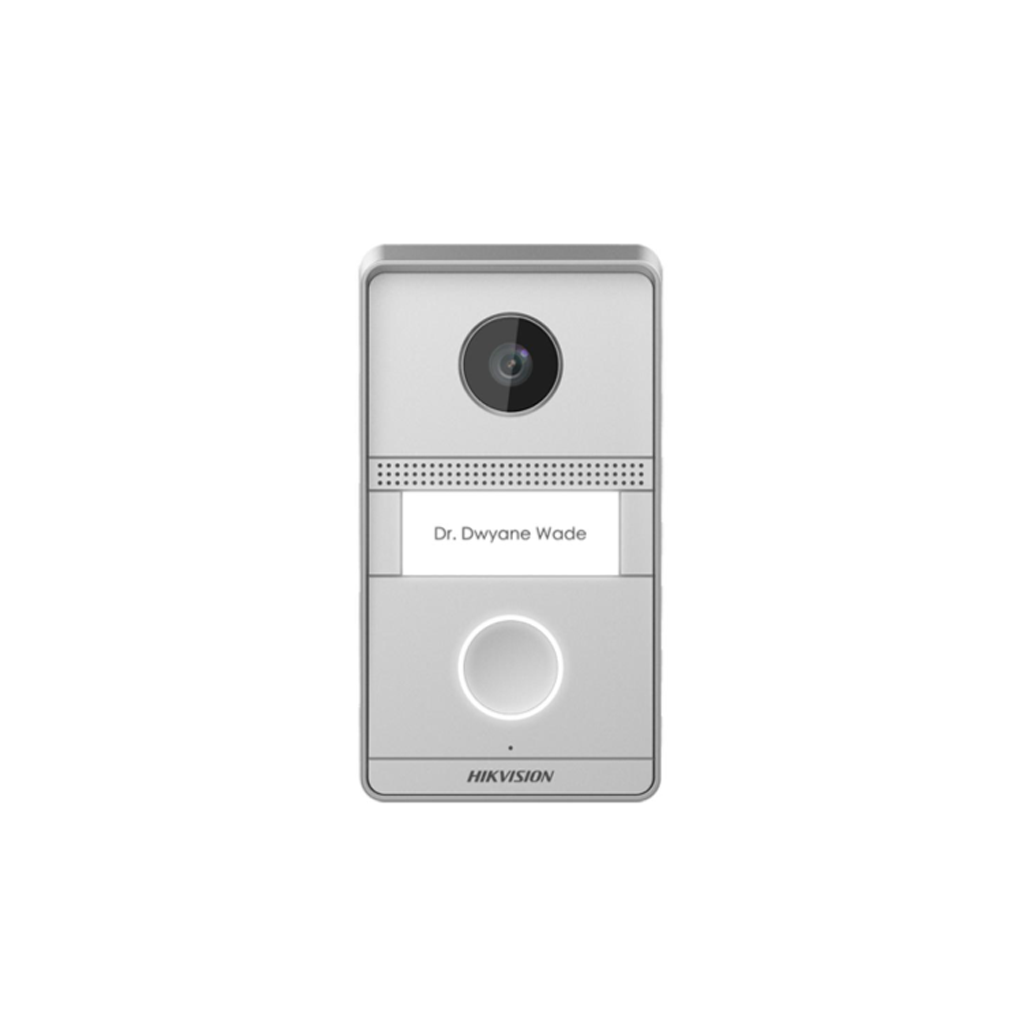

HIKVISION DS-KV1101-ME2/Flush
Metal Vandal-proof 2-Wire Analog Villa Door Station
Features
Flush mounting 2-Wire plug ＆ play analog door station for villa
2 MP HD colorful camera, view in color, even in darkness
One nametag button calling Design For easier calls
IP65 ＆ IK07 high protection level
2 lock relays, power supply for one electric lock (up to 12 V 1 A)
Specifications
| System parameters | |
| Operation system | Embedded Analog operation system |
| Video parameters | |
| Lens | Low Illumination 2 MP HD IR Camera |
| Resolution | Main stream : 1920 × 1080 Sub stream : 720 × 480 |
| FOV | Horizontal: 100°, Vertical: 69° |
| Wide dynamic range (WDR) | Support |
| Supplement light | White light supplement |
| Audio parameters | |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker (More than 85 dB within 20 cm) |
| Volume adjustment | Adjustable with screwdriver |
| Device interfaces | |
| Alarm input | 4 |
| TAMPER | 1 |
| Exit button | 2 |
| Lock control | 2 relays, Max. to 30 VDC, 2 A |
| Door contact input | 2 |
| DIP switch | 4 |
| General | |
| Button | 1 |
| Installation | Flush mounting |
| Weight | Net weight: 355.2 g Gross weight: 508.1 g |
| Protective level | IP65, IK7 |
| Working temperature | -30 °C to +60 °C (-22 °F to 140 °F) |
| Working humidity | 10% to 90% |
| Dimension (W × H × D) | 150 mm × 82 mm × 23.5 mm (5.91″ × 3.23″ × 0.93″) |
| Power supply | 48 VDC, 0.5 A |
| Application environment | Outdoor |
| Power consumption | ≤ 12 W |
