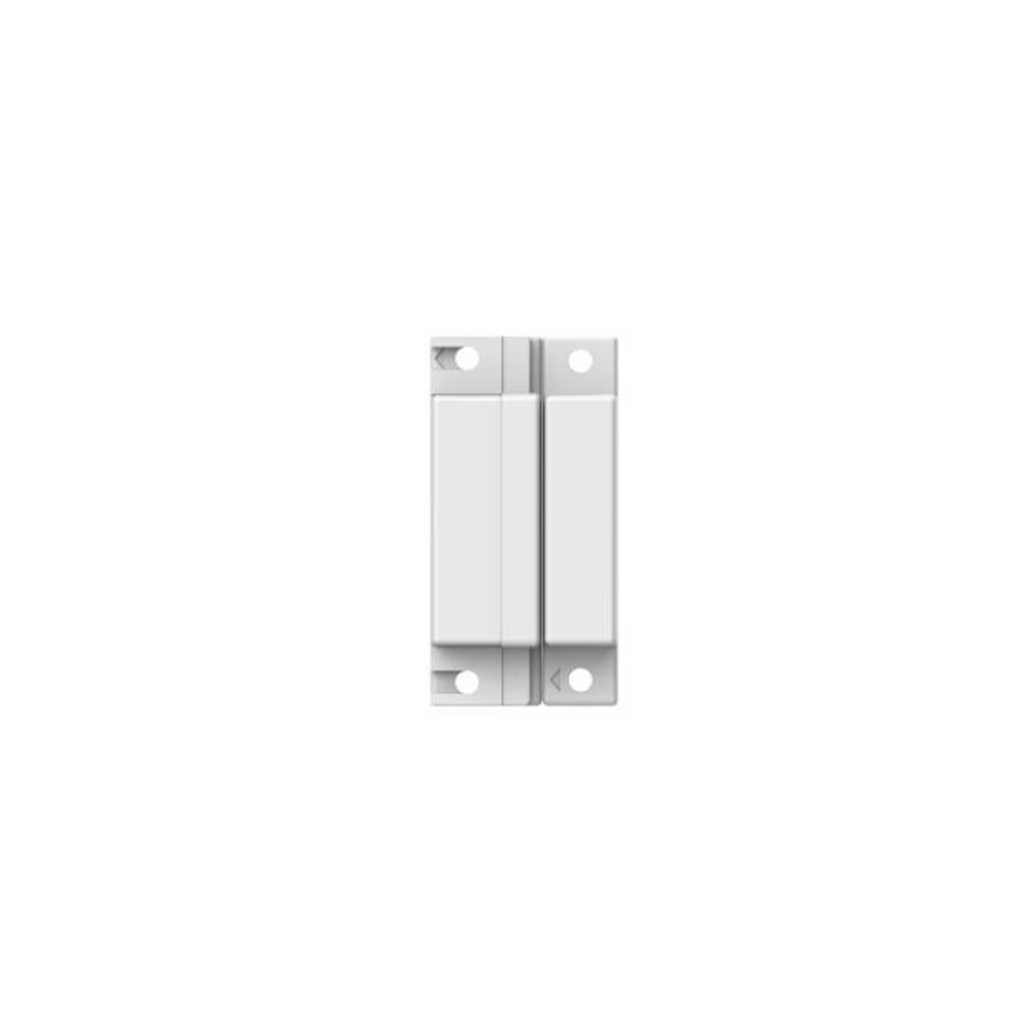

HIKVISION DS-PD1-MC-WS
Surface mounted magnetic contact of plastic casing
Features
- ABS shell
- Connection type: NC
- Designed for the surface mounting on wood door
Specification
| Model | DS-PD1-MC-WS | |
| Detection Performance | Detection Gap | ≥17 |
| Interface | Alarm Output | Normally Closed |
| Electrical Characteristics | Typical Voltage | ≤100 VDC（Capacity） |
| Typical Current | ≤500 mA（Capacity） | |
| General | Operation Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature | -20 °C to 60 °C (-4 °F to 140 °F) | |
| Operation Humidity | 10% to 90% | |
| Shell Material | Flame Retardant ABS | |
| Dimension(WxHxD) | 63.5mm x 12.5mm x 15.7mm 63.5mm x 12.5mm x 12.5mm |
|
