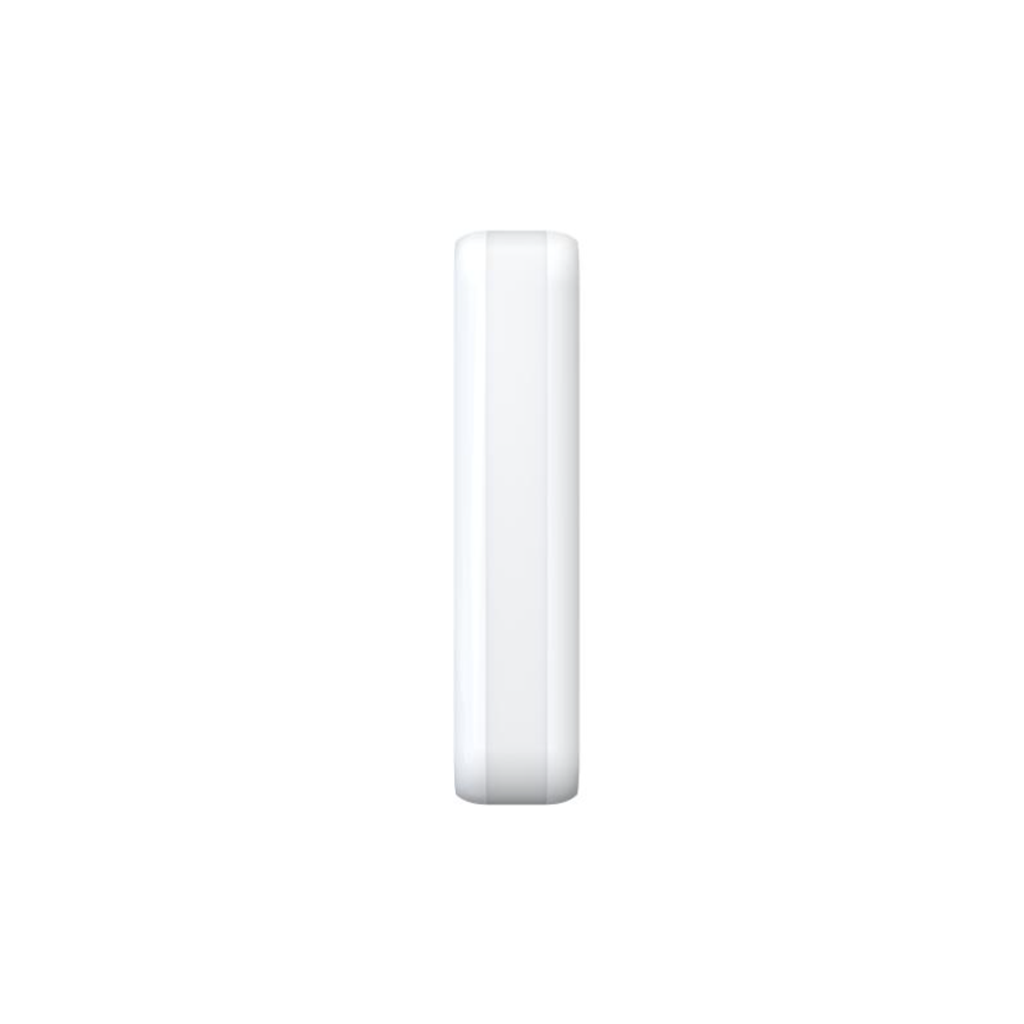

HIKVISION DS-PDC10DM-VG3
Wired Dual-Tech AM Curtain Detector
Features
- Slim design for window frame installation
- IP65 weather resistance for outdoor application
- Active IR anti-masking
- Automatic sensitivity
- Selectable EOL resistors for alarm and tamper-proof wiring
- Directional detection support
Specification
| Model | DS-PDC10DM-VG3 | |
| Detection Performance |
Detection Method | Passive Infrared,Microwave |
| Detection Range | Wall Mount：10m Ceiling Mount：6m |
|
| Detection Angle | 5° | |
| Detection Zones | 32 | |
| Detectable Speed | 0.2～3m/s | |
| Sensitivity | Auto | |
| White Light Filter | 6500lux | |
| Microwave Frequency | 24GHz(24.15～24.25GHz) | |
| Digital Temperature Compensation | Support | |
| Creep Zone Protection | Support | |
| Anti-masking | Support | |
| Feature | Digital Processing | Support |
| Sealed Optics | Support | |
| Tamper Protection | Tamper Protection | |
| Directional Detection | Support | |
| Interface | Alarm Output | Normally Closed |
| LED Indicator | Green(PIR), Red(Microwave), Green+Orange(Mask), Blue(Alarm) | |
| Transmission | Transmission Method |
Wired |
| Electrical Characteristics |
Power Consumption | 22mA Max |
| Power Supply | 9 to 16 VDC | |
| Typical Voltage | 12 VDC | |
| General | Operation Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Storage Temperature | -25 °C to 60 °C (-13 °F to 140 °F) | |
