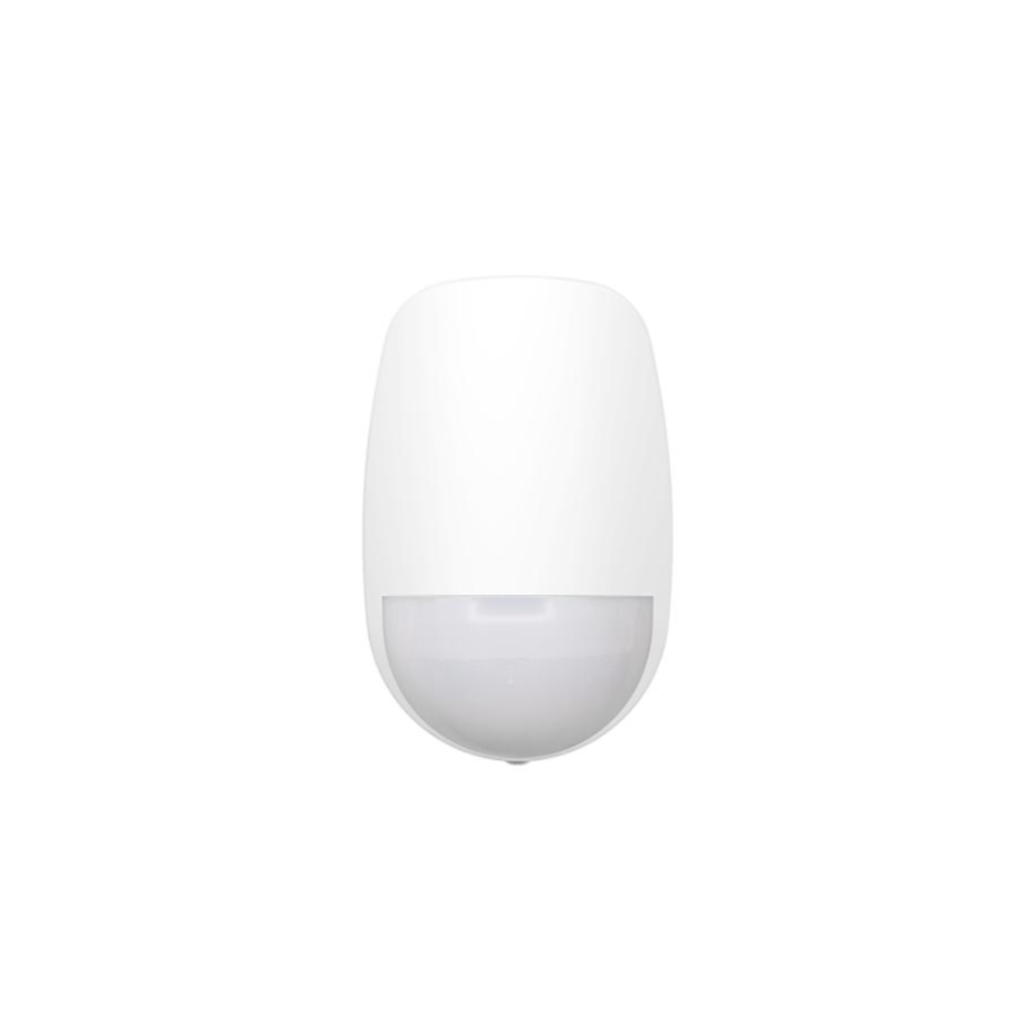

HIKVISION DS-PDC15-EG2-WE
Wireless PIR Curtain Detector
Features
- Long range with narrow angle detection
- Fully remote configurable through APP
- Multiple enrollment method and easy installation design
- Easy replaceable battery with PCB protected
- Frequency hopping against jamming for reliable transmission
Specification
| Detection Performance | |
| Detection Method | Passive Infrared |
| Sensor Model | SFG321-711 |
| Detection Range | 15m |
| Detection Angle | 6.3° |
| Detection Zones | 18 |
| Detectable Speed | 0.3 to 2m/s |
| Pet Immunity | None |
| White Light Filter | 6500lux |
| Digital Temperature Compensation | Support |
| Creep Zone Protection | Support |
| Feature | |
| Digital Processing | Support |
| Sealed Optics | Support |
| Tamper Protection | Front,Rear |
| Environment Temperature Indicator | Support |
| Signal Strength Indicator | Support |
| Interface | |
| Power Switch | Power Up Enrolling |
| LED Indicator | Blue (Alarm) |
| Transmission | |
| Transmission Technology | Tri-X Wireless |
| Transmission Method | Two-Way RF Wireless |
| Transmission Frequency | 868MHz |
| Transmission Security | AES-128 Encryption |
| Transmission Range(Free Space) | 1.6Km |
| Frequency Hopping | Support |
| Enrolling Method | Power up,Remote ID,QR Code |
| Electrical Characteristics | |
| Standard Battery Life | Up to 5 years (standby time) |
| Power Supply | Battery Powered |
| Battery Type | CR123A × 1 |
| Typical Voltage | 3V |
| General | |
| Operation Temperature | -10°C to 55°C (14 °F to 131 °F) |
| Storage Temperature | -20°C to 60°C (-4 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| Dimension(WxHxD) | 65.5mm × 103mm × 48.5mm |
| Weight | 128g |
| Mounting Height | 2.4 to 3.6m |
| Mounting Method | Wall |
| Application Scenario | Indoor |
| Bracket | Optional Wall & Ceiling Accessory |
