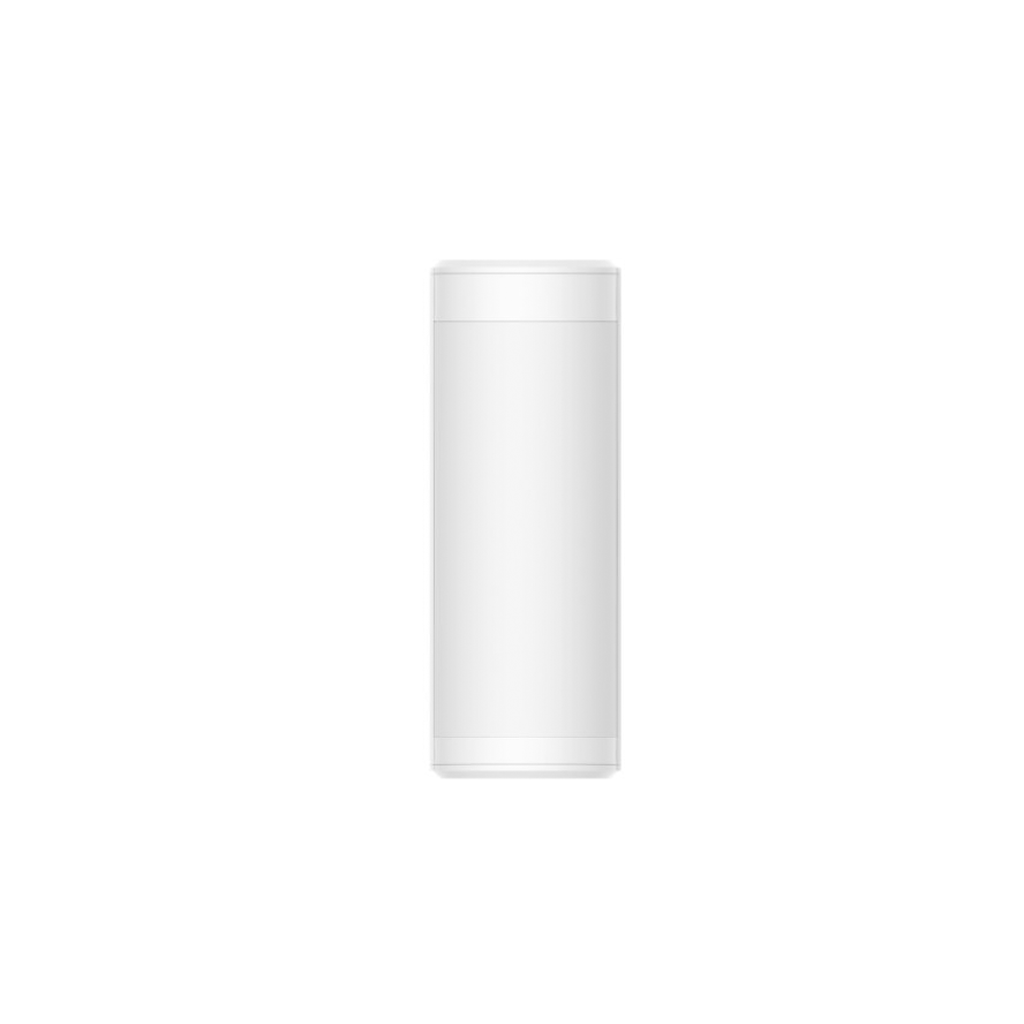

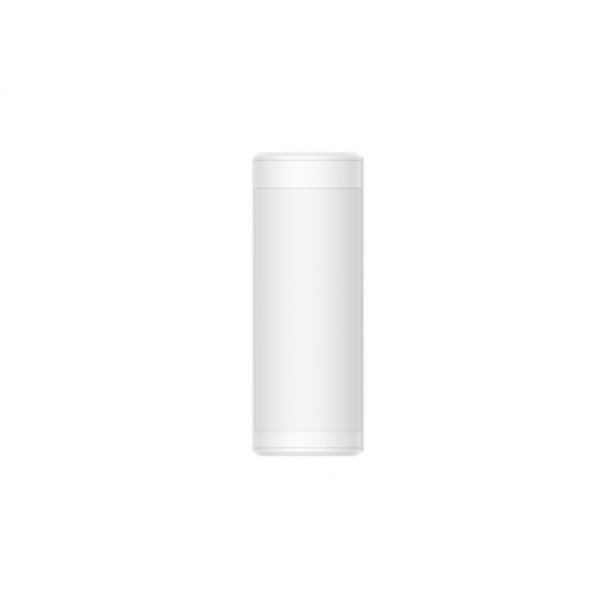

HIKVISION DS-PDTT15AM-LM
Wired Triple Signal Detector
Features
- 90°@180° adjustable coverage
- IP65 weather resistance for outdoor application
- Active IR anti-masking
- Automatic sensitivity
- Selectable EOL resistors for alarm and tamper-proof wiring
Specification
| Detection Performance | |
| Detection Method | Passive Infrared;Microwave |
| Detection Range | 15m |
| Detection Angle | 90° @ 180° adjustable |
| Detection Zones | 92 |
| Detectable Speed | 0.3～2m/s |
| Sensitivity | Auto;Low |
| White Light Filter | 10000lux |
| Microwave Frequency | 24GHz(24.15～24.25GHz) |
| Pet Immunity | 40Kg |
| Digital Temperature Compensation | Support |
| Anti-masking | Support |
| Adaptable Coverage | Support Pattern mask included |
| Feature | |
| Digital Processing | Tri-Signal Logic |
| Sealed Optics | Support |
| Tamper Protection | Front;Rear |
| Anti-Sway Analytics | Support |
| Interface | |
| Alarm Output | Normally Closed |
| LED Indicator | Green(Top PIR), Red(Microwave), Orange(Bottom PIR)Green+Orange(Mask), Blue(Alarm) |
| Transmission | |
| Transmission Method | Wired |
| Electrical Characteristics | |
| Power Consumption | 30mA （Standard） 220mA Max （With lighting on） |
| Power Supply | 9 to 16 VDC |
| Typical Voltage | 12 VDC |
| General | |
| Operation Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Storage Temperature | -25 °C to 60 °C (-13 °F to 140 °F) |
| Operation Humidity | 10% to 90% |
| IP Rate | IP65 |
| Dimension(WxHxD) | 75mm × 202mm × 73mm |
| Weight | 350g |
| Mounting Height | 0.8 to 1.2m |
| Mounting Method | Wall |
| Application Scenario | Outdoor |
